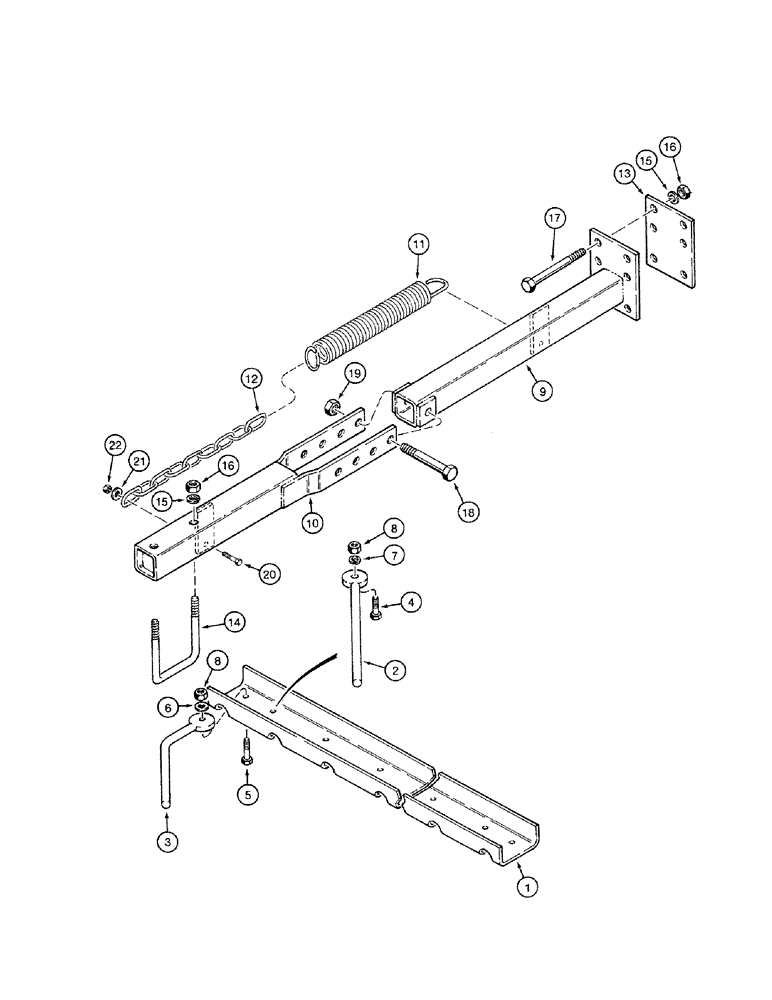

Запчасти Case IH 4200 (09-27) - SINGLE BAR PEG TOOTH MULCHER, 11 FT 10 INCH MULCH FINISHER (09) - CHASSIS/ATTACHMENTS

1

811174C1

CHANNEL

- 14 tooth, 2.1 m (6.89 ft)

2шт.

1

811175C1

CHANNEL

- 16 tooth, 2.4 m (7.87 ft)

2шт.

1

811172C1

CHANNEL

- 10 tooth, 1.5 m (4.92 ft)

2шт.

1

811173C1

CHANNEL

- 12 tooth, 1.8 m (5.91 ft)

2шт.

1

811174C1

CHANNEL

- 14 tooth, 2.1 m (6.89 ft)

4шт.

1

811174C1

CHANNEL

- 14 tooth, 2.1 m (6.89 ft)

2шт.

1

810696C1

CHANNEL

- 18 tooth, 2.7 m (8.86 ft)

2шт.

1

811172C1

CHANNEL

- 10 tooth, 1.5 m (4.92 ft)

2шт.

1

811173C1

CHANNEL

- 12 tooth, 1.8 m (5.91 ft)

2шт.

1

811174C1

CHANNEL

- 14 tooth, 2.1 m (6.89 ft)

2шт.

2

811171C1

BAR

TOOTH - peg, straight, teeth and mounting hardware

1шт.

3

810869C2

TOOTH

- peg, angle, teeth and mounting hardware

1шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Used on all straight teeth and angle tooth on right mulcher sections, teeth and mounting hardware Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used on angle tooth on LH mulcher sections only, teeth and mounting hardware Hex, 1/2"-13 x 1 3/4", G5

1шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Used with item 18, teeth and mounting hardware 1/2", SAE

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Teeth and mounting hardware 1/2"

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Teeth and mounting hardware 1/2"-13, G5

1шт.

9

810928C1

SUPPORT ASSY.

BAR - support

1шт.

10

810932C3

TUBE

ARM - support bar

1шт.

11

810905C2

SPRING

- tension, support bar

1шт.

12

814994C2

CHAIN (AG)

CHAIN - tension, support bar

1шт.

13

811182C1

BAR

PLATE - clamping, support bar

1шт.

14

811990C2

U-BOLT,5/8" - 11 x 5 1/2"

- mulcher mounting, support bar

1шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Support bar 5/8"

6шт.

16

425-1010

NUT,5/8"-11, G5

Support bar 5/8"-11, G5

6шт.

17

461723R1

BOLT,5/8" - 11 x 6", Grade 5

- hex, special, 5/8 x 6 inch, support bar

4шт.

18

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch, support bar

1шт.

19

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, , Support bar 3/4"-10, GC

1шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, support bar

1шт.

21

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64", Support bar

1шт.

22

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8, support bar

1шт.
