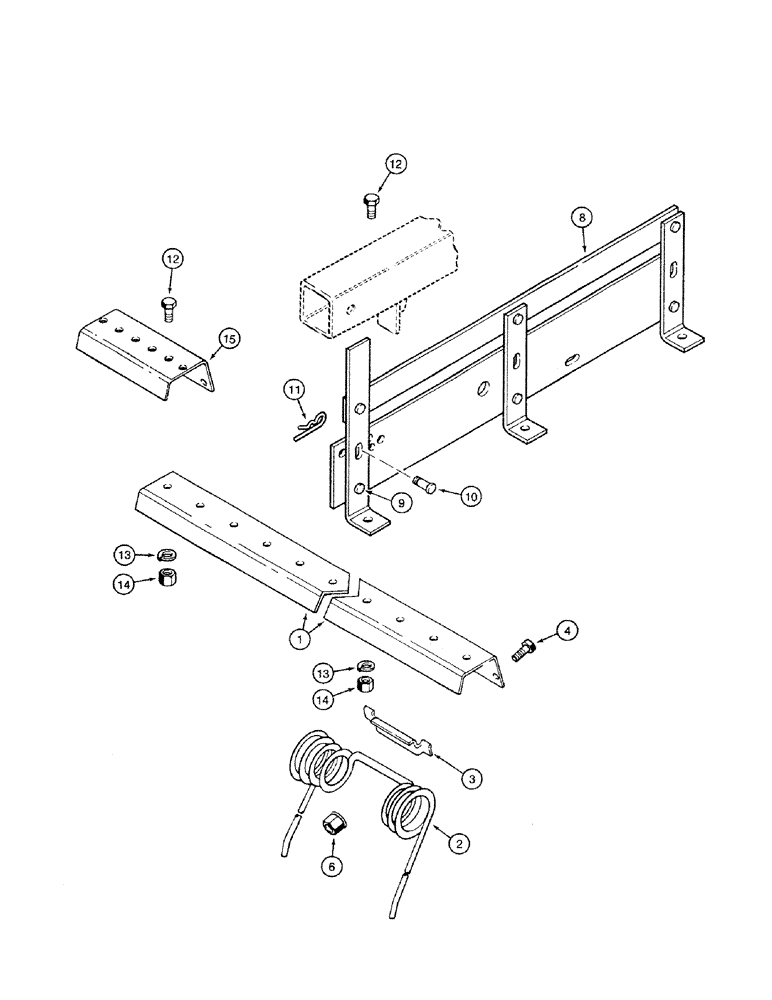

Запчасти Case IH 4200 (09-26) - ADJUSTABLE THREE BAR COIL TINE MULCHER, CHANNELS AND TEETH, 11 FT 10 INCH MULCH FINISHER (09) - CHASSIS/ATTACHMENTS

3.6 m (11 ft. 10 inch) Mulch Finisher

1шт.

1

814815C3

CHANNEL

- 5 tooth, 6.2 ft., 1740 mm

3шт.

1

814835C3

CHANNEL

- 6 tooth, 7.5 ft., 2120 mm

3шт.

4.6 m (15 ft. 1 inch) Mulch Finisher

1шт.

1

814813C3

CHANNEL

- 3 tooth, 3.7 ft., 980 mm

3шт.

RE IT NO. 1 - 814813C3 IS NOW REDUCED TO 3.2FT LONG. PER D3690 12/90. PH 6/20/97 NOTE, IN FACT ALL HAVE BEEN REDUCED IN LENGTH BY 65 MM

1шт.

1

814815C3

CHANNEL

- 5 tooth, 6.2 ft., 1740 mm

6шт.

6.29 m (20 ft. 8 inch) Mulch Finisher

1шт.

1

814814C3

CHANNEL

- 4 tooth, 5.0 ft., 1360 mm

9шт.

1

814835C3

CHANNEL

- 6 tooth, 7.5 ft., 2120 mm

3шт.

7.97 m (26 ft. 2 inch) Mulch Finisher

1шт.

1

814815C3

CHANNEL

- 5 tooth, 6.2 ft., 1740 mm

6шт.

1

814835C3

CHANNEL

- 6 tooth, 7.5 ft., 2120 mm

6шт.

9.35 m (30 ft. 8 inch) Mulch Finisher

1шт.

1

814813C3

CHANNEL

- 3 tooth, 3.7 ft., 980 mm

6шт.

RE IT NO. 1 - 814813C3 IS NOW REDUCED TO 3.2FT LONG. PER D3690 12/90. PH 6/20/97 NOTE, IN FACT ALL HAVE BEEN REDUCED IN LENGTH BY 65 MM

1шт.

1

814814C3

CHANNEL

- 4 tooth, 5.0 ft., 1360 mm

6шт.

1

814835C3

CHANNEL

- 6 tooth, 7.5 ft., 2120 mm

6шт.

10.38 m (34 ft. 1 inch) Mulch Finisher

1шт.

1

814813C3

CHANNEL

- 3 tooth, 3.7 ft., 980 mm

6шт.

RE IT NO. 1 - 814813C3 IS NOW REDUCED TO 3.2FT LONG. PER D3690 12/90. PH 6/20/97 NOTE, IN FACT ALL HAVE BEEN REDUCED IN LENGTH BY 65 MM

1шт.

1

814815C3

CHANNEL

- 5 tooth, 6.2 ft., 1740 mm

3шт.

1

814835C3

CHANNEL

- 6 tooth, 7.5 ft., 2120 mm

9шт.

Teeth, Adjustable Bars, and Connecting Channels

1шт.

2

814800C1

TOOTH

- mulcher, spring

1шт.

3

1995845C1

CLAMP

- spring tooth

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

1333731C1

BAR

ASSEMBLY - adjustable, left-hand, not shown

1шт.

8

1333732C1

NUT

BAR ASSEMBLY - adjustable, right-hand

1шт.

9

121233C1

RIVET,20mm OD x 29mm L

RIVET - step

6шт.

10

439-5616

HEADED PIN,3/8" x 1"

PIN - head, 3/8 x 1 inch

1шт.

11

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - cotter, 1/8 inch

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

814816C2

CHANNEL

- mulcher connecting

1шт.
