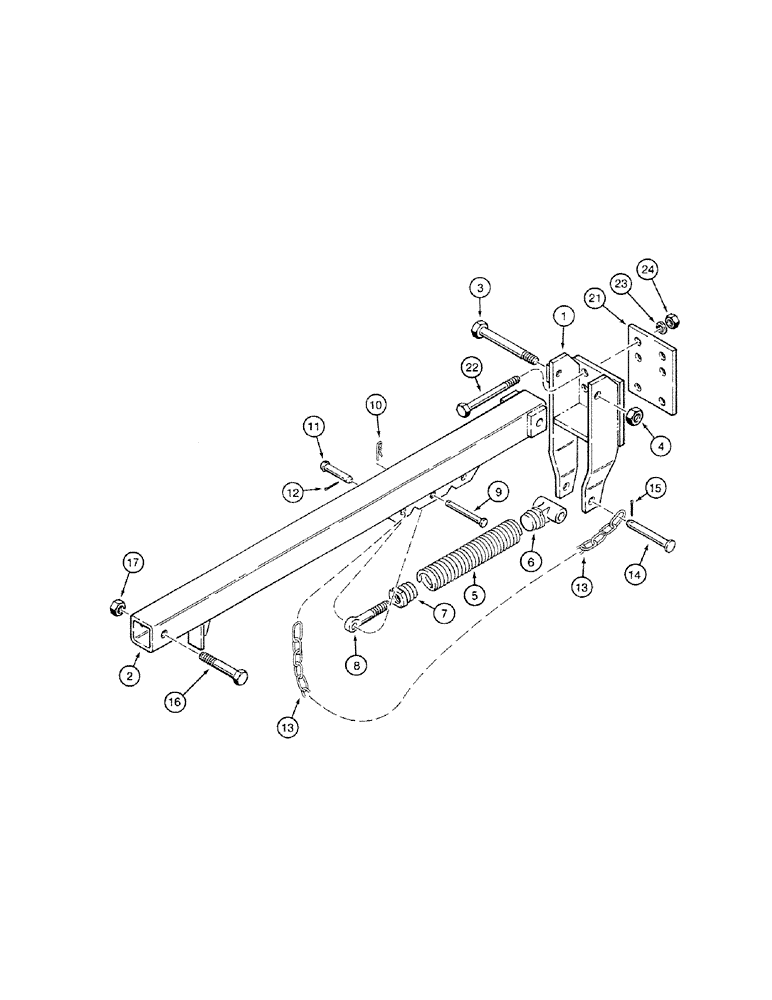

Запчасти Case IH 4200 (09-25) - ADJUSTABLE 3-BAR COIL TINE MULCHER, CARRIER ARM (09) - CHASSIS/ATTACHMENTS

1

814810C2

BRACKET

- mulcher attaching

1шт.

2

814802C2

ARM

- carrier

1шт.

3

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

4

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

5

814840C1

SPRING

- carrier arm

1шт.

6

814801C1

PLUG

- lower, spring

1шт.

7

814837C1

PLUG

- upper, spring

1шт.

8

814839C1

BOLT,3/4" - 10 x 120mm

- eye, spring adjusting

1шт.

9

520277R1

PIN

- pointed head, 5/8 x 2-7/8 inch

1шт.

10

1980543C1

HAIR PIN COTTER

PIN - cotter, 5/32 inch diameter

1шт.

11

520277R1

PIN

- pointed head, 5/8 x 2-7/8 inch, use with item 13, chain, if used

2шт.

12

432-1216

COTTER PIN,3/16" x 1"

Use with item 13, chain, if used 3/16" x 1"

2шт.

13

813594C1

CHAIN (AG)

CHAIN - support attachment, use on 20 ft 8 inch models

2шт.

14

22074R1

HEADED PIN,5/8" x 4 1/2"

PIN - headed, 5/8 x 4-1/2 inch

1шт.

15

432-1216

COTTER PIN,3/16" x 1"

1шт.

16

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch, supports to carrier arm

1шт.

17

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Support to carrier arm, not shown Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

19

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64", Not shown, Used with item 18, Bolt

1шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC, not shown, used with item 18, bolt

1шт.

21

814808C2

BAR

- bracket mounting

1шт.

22

461723R1

BOLT,5/8" - 11 x 6", Grade 5

- hex, special, 5/8 x 6 inch

4шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

425-1010

NUT,5/8"-11, G5

4шт.
