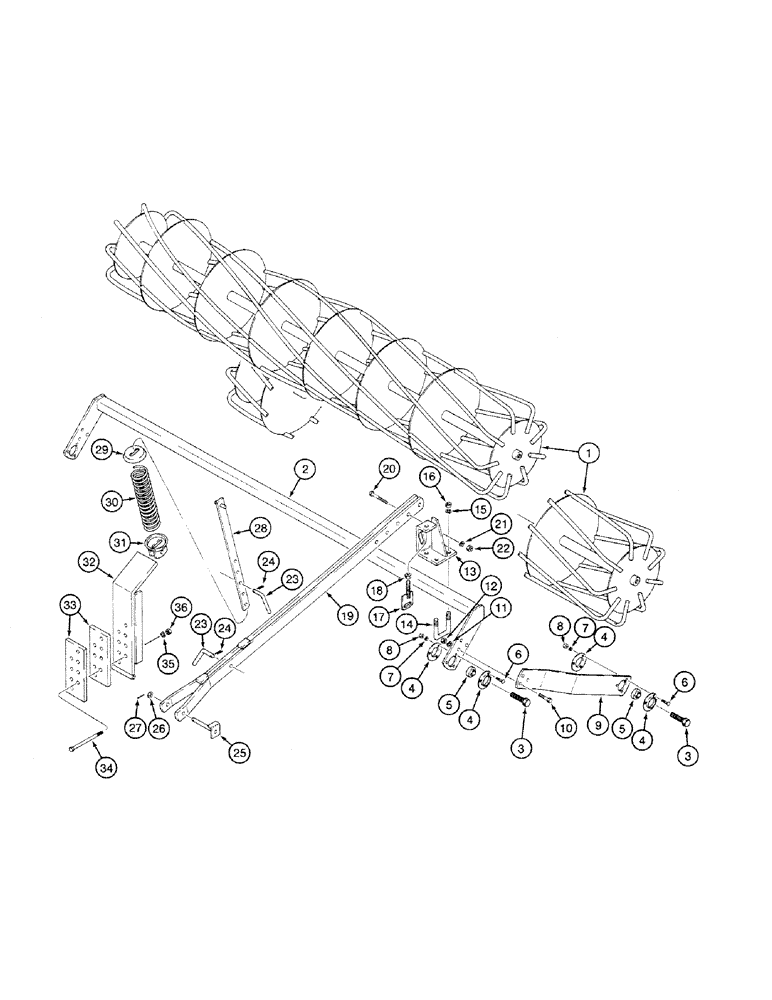

Запчасти Case IH 4200 (09-24) - DOUBLE ROLLING BASKET MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BASKET - double rolling, see page 9-45 for correct assembly

2шт.

2

REF

INSTRUCTION

CARRIER - basket, see page 9-45 for correct assembly

1шт.

3

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

4

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing, four per basket

8шт.

5

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- shaft

4шт.

6

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

12шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

8

425-105

NUT,5/16"-18, G5

12шт.

9

1256485C1

BRACKET

- offset

2шт.

10

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

6шт.

11

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

12

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

6шт.

13

95618C1

BRACKET

PIVOT - adjustable

2шт.

14

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

- adjusting pivot, two per pivot

4шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

16

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

8шт.

17

95619C1

ADJUSTMENT SCREW

SCREW - adjustable

2шт.

18

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

4шт.

19

81119C1

ARM

- carrier

2шт.

20

414-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- hex, 1/2 NF x 2 inch

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

22

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

4шт.

23

80056C1

PIN

- 45 degree, 5/8 inch

2шт.

24

480523R1

HAIR PIN COTTER

9/64" dia

2шт.

25

95620C1

PIN

- carrier arm

2шт.

26

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

27

32-1220

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

28

81118C1

GUIDE

- spring

2шт.

29

80057C1

CAP

- spring, upper

2шт.

30

1256472C1

SPRING

- guide

2шт.

31

1256471C2

CAP

- spring, lower

2шт.

32

81117C1

BRACKET

BAR - flat clamp (Replaces 81116C1)

6шт.

33

81116C1

CLAMP

BRACKET - mounting (Replaces 81117C1)

2шт.

34

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- hex, 5/8 NC x 7-1/2 inch

4шт.

35

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

36

425-1010

NUT,5/8"-11, G5

4шт.
