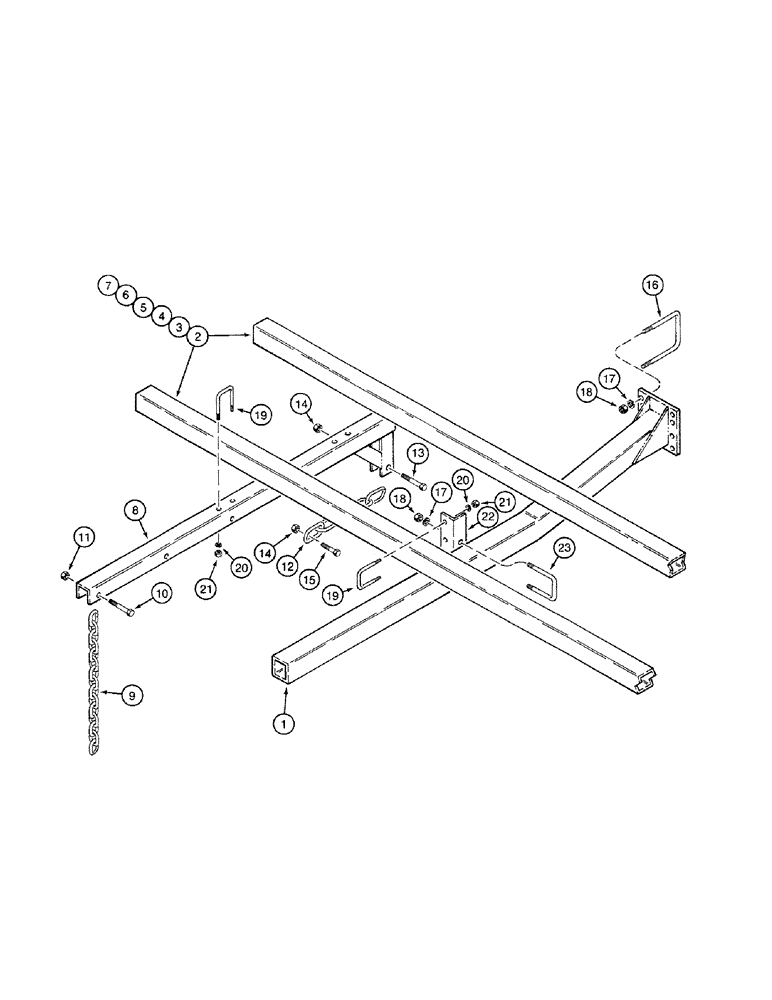

Запчасти Case IH 4200 (09-22) - FIVE BAR ADJUSTING SPIKE HARROW MOUNTING FRAME, (11 FT 10 INCH MULCH FINISHER (09) - CHASSIS/ATTACHMENTS

3.6 M (11 FT. 10 inch) Mulch Finisher

1шт.

1

1547334C2

ARM

- harrow mounting

3шт.

2

100092A1

TUBE

- square, 152 inch, cross

2шт.

8

1547333C2

BAR

ARM - five bar pull

4шт.

4.6 M (15 FT. 1 inch) Mulch Finisher

1шт.

1

1547334C2

ARM

- harrow mounting

4шт.

3

100093A1

TUBE

- square, 184 inch, cross

2шт.

8

1547333C2

BAR

ARM - five bar pull

6шт.

6.29 M (20 FT. 8 inch) Mulch Finisher

1шт.

1

1547334C2

ARM

- harrow mounting

14шт.

2

100092A1

TUBE

- square, 152 inch, cross

4шт.

4

1547338C1

BAR

TUBE - square, 55 inch, cross

8шт.

8

1547333C2

BAR

ARM - five bar pull

16шт.

7.97 M (26 FT. 2 inch) Mulch Finisher

1шт.

1

1547334C2

ARM

- harrow mounting

14шт.

2

100092A1

TUBE

- square, 152 inch, cross

4шт.

5

1547337C1

BAR

TUBE - square, 70 inch, cross

8шт.

8

1547333C2

BAR

ARM - five bar pull

16шт.

9.35 M (30 FT. 8 inch) Mulch Finisher

1шт.

1

1547334C2

ARM

- harrow mounting

27шт.

2

100092A1

TUBE

- square, 152 inch, cross

6шт.

6

1547339C1

BAR

TUBE - square, 94 inch, cross

12шт.

8

1547333C2

BAR

ARM - five bar pull

36шт.

10.38 M (34 FT. 1 inch) Mulch Finisher

1шт.

1

1547334C2

ARM

- harrow mounting

27шт.

2

100092A1

TUBE

- square, 152 inch, cross

6шт.

7

100091A1

TUBE

- square, 124 inch, cross

12шт.

8

1547333C2

BAR

ARM - five bar pull

36шт.

Chains and Mounting Parts

1шт.

9

1547328C1

CHAIN (AG)

CHAIN - 17 link, eight per section, lower mounting uses bracket hardware shown on page 9-33

1шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, Upper, one per chain

1шт.

11

230-4106

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, upper, one per chain

1шт.

12

1547332C1

CHAIN (AG)

CHAIN - five link, two per section

1шт.

13

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch, chain to bar pull arm

1шт.

14

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

8шт.

15

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

16

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 NC x 4 x 5-1/4 inch, two per mounting arm

1шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

425-1010

NUT,5/8"-11, G5

1шт.

19

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

- 7/16 NC x 2 x 3 inch, cross tube to bar pull arm

1шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

22

1547336C1

ANGLE

BRACKET - mounting, cross tubes to mounting arm

1шт.

23

1547316C1

BOLT,5/8" - 11 x 64mm W x 95mm L

U-BOLT - 5/8 NC x 2-1/2 x 3-3/4 inch

1шт.
