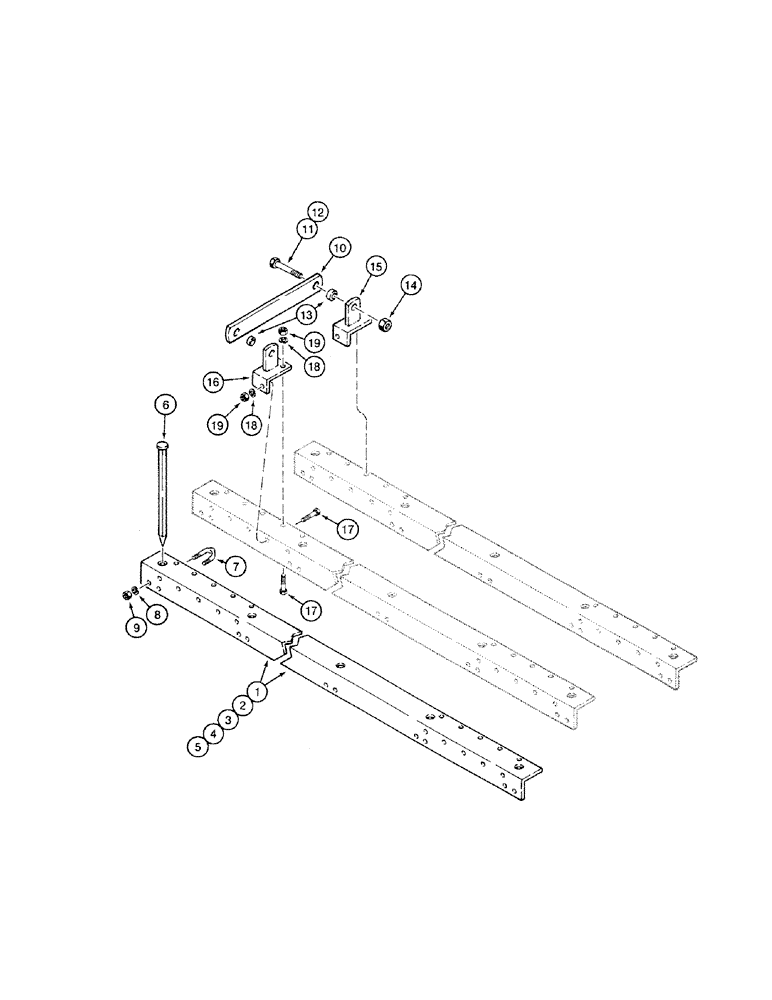

Запчасти Case IH 4200 (09-21) - FIVE BAR ADJUSTING SPIKE HARROW (09) - CHASSIS/ATTACHMENTS

3.6 M (11 FT. 10 inch) Mulch Finisher

1шт.

1

1547319C1

ANGLE

BAR - angle, 6-2/3 foot, eight spike harrow

10шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

4.6 M (15 FT. 1 inch) Mulch Finisher

1шт.

1

1547319C1

ANGLE

BAR - angle, 6-2/3 foot, eight spike harrow

5шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

2

1547317C1

ANGLE

BAR - angle, 5 foot, six spike harrow

10шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

6.29 M (20 FT. 8 inch) Mulch Finisher

1шт.

1

1547319C1

ANGLE

BAR - angle, 6-2/3 foot, eight spike harrow

10шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

3

1547321C1

ANGLE

BAR - angle, 4-1/6 foot, five spike harrow

10шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

7.97 M (26 FT. 2 inch) Mulch Finisher

1шт.

1

1547319C1

ANGLE

BAR - angle, 6-2/3 foot, eight spike harrow

15шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

4

1547320C1

ANGLE

BAR - angle, 7-1/2 foot, nine spike harrow

5шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

9.35 M (30 FT. 8 inch) Mulch Finisher

1шт.

1

1547319C1

ANGLE

BAR - angle, 6-2/3 foot, eight spike harrow

5шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

2

1547317C1

ANGLE

BAR - angle, 5 foot, six spike harrow

10шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

3

1547321C1

ANGLE

BAR - angle, 4-1/6 foot, five spike harrow

10шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

4

1547320C1

ANGLE

BAR - angle, 7-1/2 foot, nine spike harrow

5шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

10.38 M (34 FT. 1 inch) Mulch Finisher

1шт.

1

1547319C1

ANGLE

BAR - angle, 6-2/3 foot, eight spike harrow

5шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

2

1547317C1

ANGLE

BAR - angle, 5 foot, six spike harrow

10шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

4

1547320C1

ANGLE

BAR - angle, 7-1/2 foot, nine spike harrow

5шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

5

1547318C1

ANGLE

BAR - angle, 5-5/6 foot, seven spike harrow

10шт.

Five spike harrow illustrated. See Figure 09-22 for mounting frame parts. If dealer is looking for Angle Bar 117856A1 with welded brackets on them, please see hardcopy catalog- prints are attached.

1шт.

Spikes and Connecting Links

1шт.

6

1547330C1

TOOTH

SPIKE - harrow

1шт.

7

62551C1

U-BOLT,3/8" - 16 x 1.9", Carbon Steel

- 3/8 inch NC, one per spike

1шт.

8

492-11038

LOCK WASHER,3/8"

two per spike 3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

Two per spike 3/8"-16, G5

1шт.

10

1547325C2

LINK

- connecting

1шт.

11

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

12

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

13

1547322C2

BUSHING,12.95mm ID x 19.05mm OD x 13.97mm L

- connecting link, two per link

1шт.

14

230-4108

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

15

1547324C2

CONNECTOR, ELEC

BRACKET - link connector, left-hand

1шт.

THE ACTUAL PART LOOKS NOTHING LIKE THIS PICTURE. IT REALLY HAS A STRAP WITH 3 BOLT HOLES THROUGH IT

1шт.

16

1547323C2

BAR

BRACKET - link connector, right-hand

1шт.

SI VENDOR NO 54933. IT DOES NOT LOOK AS PICTURED

1шт.

17

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

1шт.

18

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

19

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.
