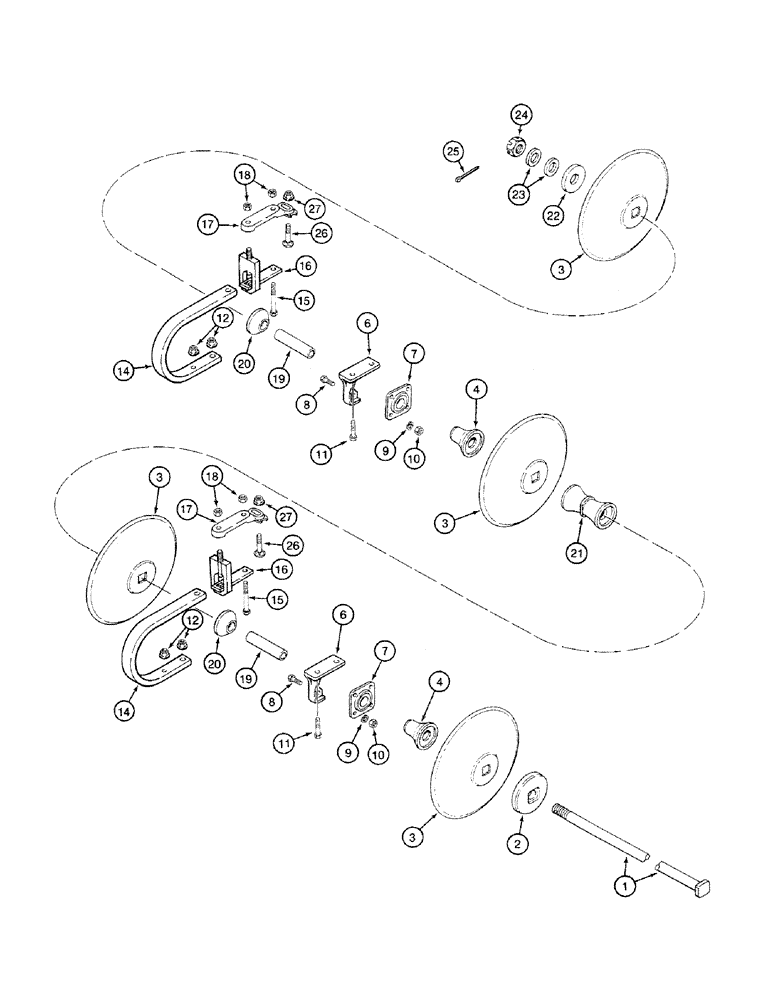

Запчасти Case IH 4200 (09-19) - CUSHION DISC GANG, ARBOR BOLTS AND DISCS (09) - CHASSIS/ATTACHMENTS

1

1284115C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 845mm

- arbor, 5 disc

1шт.

1

1284116C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1052mm

- arbor, 6 disc

1шт.

1

1263536C2

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

- arbor, 7 disc

1шт.

1

1263613C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

- arbor, 9 disc

1шт.

1

1986246C1

SPECIAL BOLT

BOLT - arbor, 10 disc

1шт.

1

1263614C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

- arbor, 11 disc

1шт.

2

139773C1

WASHER

WASHER - Belleville, end, special

1шт.

3

31388R1

DISC

- solid, 510 x 4.5 mm, if used

1шт.

3

31392R1

DISK HARROW

DISC - solid, 455 x 4.5 mm, if used

2шт.

The 455 mm diameter discs are used on the right-hand end of the left-hand main frame disc gang and the left-hand end of the right-hand main frame disc gang for all models.

1шт.

3

30999R1

DISC

- concave, round hole, 510 x 5 mm, if used, not shown

1шт.

3

31230R1

DISC

- concave, round hole, 455 x 5 mm, if used, not shown

2шт.

The 455 mm diameter discs are used on the right-hand end of the left-hand main frame disc gang and the left-hand end of the right-hand main frame disc gang for all models.

1шт.

4

101190C1

SPOOL

- bearing

1шт.

5

147873C1

SUPPORT

RETAINER - bearing, used on left-hand gang, not shown

1шт.

6

147874C1

SUPPORT

RETAINER - bearing, used on right-hand gang

1шт.

7

ST491A

BALL BEARING,45mm ID

BEARING - ball

1шт.

7

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

11

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

12

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

13

147763C1

SPRING

SUPPORT - bearing, used on left-hand gang, not shown

1шт.

14

147764C1

SPRING

SUPPORT - bearing, used on right-hand gang

1шт.

15

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

16

1263635C1

BOLT

BOLT - special

1шт.

17

139583C5

SUPPORT

- scraper angle

1шт.

18

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

19

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support

1шт.

20

1263636C1

SPOOL

- bearing

1шт.

21

1263631C1

SPOOL

- bearing

1шт.

22

139773C1

WASHER

WASHER - Belleville, end, special

1шт.

23

1284383C1

WASHER

- special, arbor bolt, used as spacer

1шт.

24

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - slotted, 1-1/2 inch

1шт.

25

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

26

411-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

27

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.
