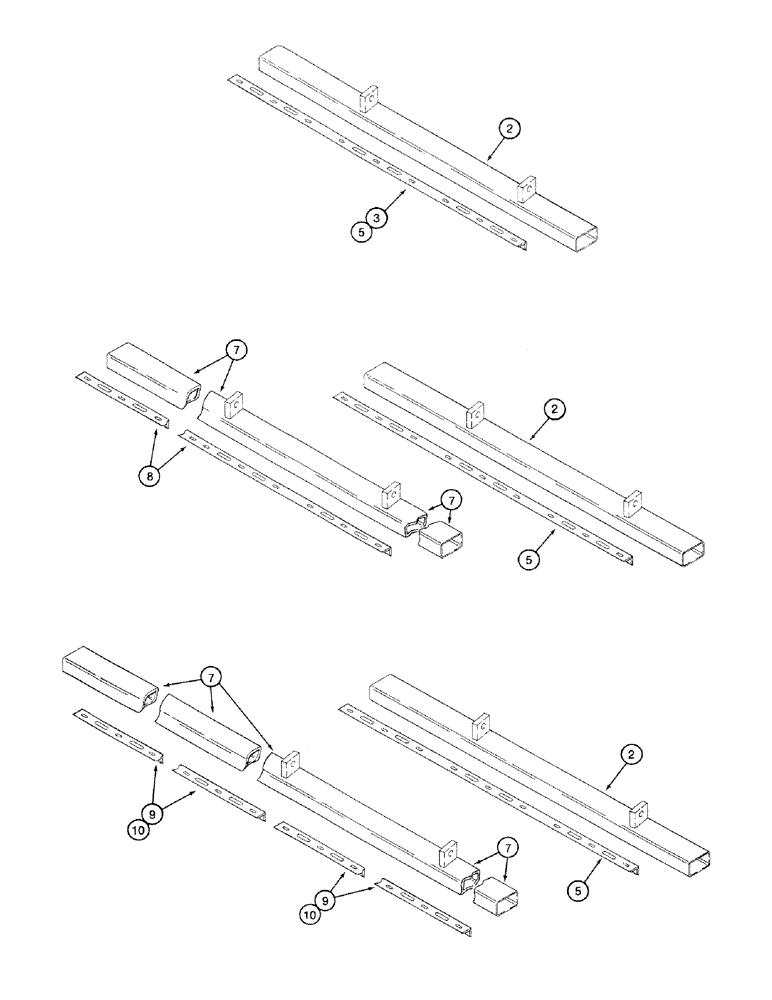

Запчасти Case IH 4200 (09-18) - CUSHION DISC GANG, FRAME AND SCRAPER SUPPORTS, 11 FT 10 INCH MULCH FINISHER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1547085C1
TUBE,918, 342 mm Length
FRAME - gang, left-hand, not shown
1шт.
2
1547086C1
TUBE,918, 342 mm Length
FRAME - gang, right-hand
1шт.
3
121138C1
ANGLE
SUPPORT - 1612 mm long, left-hand not shown
2шт.
1
1960733C1
TUBE
FRAME - gang, left-hand, not shown, 4.6 m (15' 1") mulch finisher
1шт.
2
1960734C1
TUBE
FRAME - gang, right-hand, 4.6 m (15' 1") mulch finisher
1шт.
4
121148C2
ANGLE
SUPPORT - 1902 mm long, left-hand, not shown, 4.6 m (15' 1") mulch finisher
1шт.
5
121149C2
ANGLE
SUPPORT - 1902 mm long, right-hand, 4.6 m (15' 1") mulch finisher
1шт.
1
1960733C1
TUBE
FRAME - gang, left-hand, not shown, 6.29 m (20' 8") mulch finisher
1шт.
2
1960734C1
TUBE
FRAME - gang, right-hand, 6.29 m (20' 8") mulch finisher
1шт.
4
121148C2
ANGLE
SUPPORT - 1902 mm long, left-hand, not shown, 6.29 m (20' 8") mulch finisher
1шт.
5
121149C2
ANGLE
SUPPORT - 1902 mm long, right-hand, 6.29 m ( 20' 8") mulch finisher
1шт.
5
121149C2
ANGLE
SUPPORT - 1902 mm long, right-hand, 6.29 m ( 20' 8") mulch finisher
1шт.
6
1995737C1
TUBE
FRAME - wing gang, left-hand, not shown, 6.29 m (20' 8") mulch finisher
1шт.
7
1995738C1
TUBE
FRAME - wing gang, right-hand, 6.29 m (20' 8") mulch finisher
1шт.
8
121143C1
ANGLE
SUPPORT - 848 mm long, wing gang, left-hand not shown, 6.29 m (20' 8") mulch finisher
2шт.
1
1960733C1
TUBE
FRAME - gang, left-hand, not shown, 7.97 m (26' 2") mulch finisher
1шт.
2
1960734C1
TUBE
FRAME - gang, right-hand, 7.97 m (26' 2") mulch finisher
1шт.
4
121148C2
ANGLE
SUPPORT - 1902 mm long, left-hand, not shown, 7.97 m (26' 2") mulch finisher
1шт.
5
121149C2
ANGLE
SUPPORT - 1902 mm long, right-hand, 7.97 m (26' 2") mulch finisher
1шт.
6
1995635C1
TUBE
FRAME - wing gang, left-hand, not shown, 7.97 m (26' 2") mulch finisher
1шт.
7
1995636C1
TUBE
FRAME - wing gang, right-hand, 7.97 m (26' 2") mulch finisher
1шт.
8
1986449C1
ANGLE
SUPPORT - 1803 mm, wing gang, left-hand not shown, 7.97 m ( 26' 2") mulch finisher
2шт.
1
1960733C1
TUBE
FRAME - gang, left-hand, not shown, 9.35 m (30' 8") mulch finisher
1шт.
2
1960734C1
TUBE
FRAME - gang, right-hand, 9.35 m (30' 8") mulch finisher
1шт.
4
121148C2
ANGLE
SUPPORT - 1902 mm long, left-hand, not shown, 9.35 m (30' 8") mulch finisher
1шт.
5
121149C2
ANGLE
SUPPORT - 1902 mm long, right-hand, 9.35 m (30' 8") mulch finisher
1шт.
6
1547088C1
TUBE,918, 1264 mm Length
FRAME - wing gang, left-hand, not shown, 9.35 m (30' 8") mulch finisher
1шт.
7
1547089C1
TUBE,1264, 918 mm Length
FRAME - wing gang, right-hand, 9.35 m (30' 8") mulch finisher
1шт.
9
121173C2
ANGLE
SUPPORT - 1230 mm long, inner, wing gang, left-hand not shown, 9.35 m (30' 8") mulch finisher
2шт.
10
121156C2
ANGLE
SUPPORT - 1039 mm long, outer, wing gang, left-hand not shown, 9.35 m (30' 8") mulch finisher
2шт.
1
1960733C1
TUBE
FRAME - gang, left-hand, not shown, 10.38 m (34' 1") mulch finisher
1шт.
2
1960734C1
TUBE
FRAME - gang, right-hand, 10.38 m (34' 1") mulch finisher
1шт.
4
121148C2
ANGLE
SUPPORT - 1902 mm long, left-hand, not shown, 10.38 m (34' 1") mulch finisher
1шт.
5
121149C2
ANGLE
SUPPORT - 1902 mm long, right-hand, 10.38 m (34' 1") mulch finisher
1шт.
6
1986240C1
TUBE
FRAME - wing gang, left-hand, not shown, 10.38 m (34' 1") mulch finisher
1шт.
7
1986241C1
TUBE
FRAME - wing gang, right-hand, 10.38 m (34' 1") mulch finisher
1шт.
9
121173C2
ANGLE
SUPPORT - 1230 mm long, inner, wing gang, left-hand not shown, 10.38 m (34' 1") mulch finisher
2шт.
10
121138C1
ANGLE
SUPPORT - 1612 mm long, outer, wing gang, left-hand not shown, 10.38 m (34' 1") mulch finisher
2шт.
Выбрано товаров: 38
