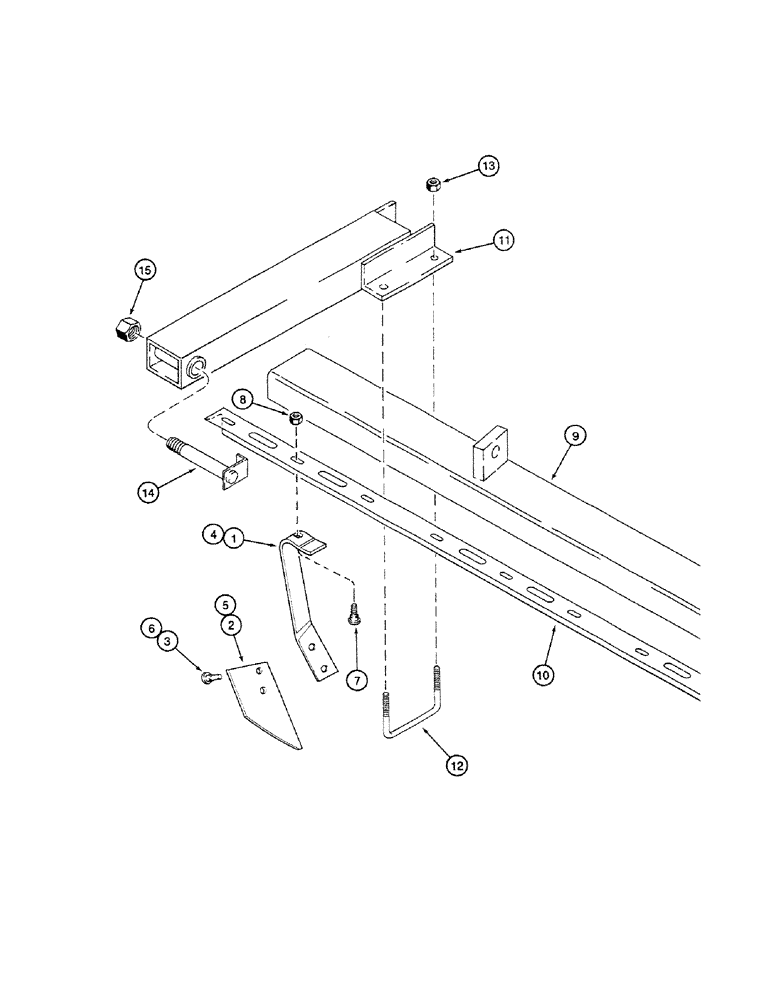

Запчасти Case IH 4200 (09-17) - DISC SCRAPER AND DISC GANG FRAME ARM (09) - CHASSIS/ATTACHMENTS

121120C92

SCRAPER

ASSEMBLY - disc, right-hand, not shown

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand

1шт.

2

121118C1

BLADE

- scraper

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

121119C92

SCRAPER

ASSEMBLY - disc, left-hand

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand

1шт.

5

121118C1

BLADE

- scraper

1шт.

6

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

7

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

1шт.

8

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

1шт.

9

REF

INSTRUCTION

TUBE - gang, see page 9-18 for correct frame

1шт.

10

REF

INSTRUCTION

SUPPORT - gang, see page 9-18 for correct support

1шт.

11

1969012C1

ARM ASSY.

ARM - gang frame

1шт.

12

817740C1

U-BOLT

- bracket support

1шт.

13

425-1010

NUT,5/8"-11, G5

1шт.

14

60141C1

PIN

- clevis

1шт.

15

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - lock, 1-1/4 inch PT

1шт.
