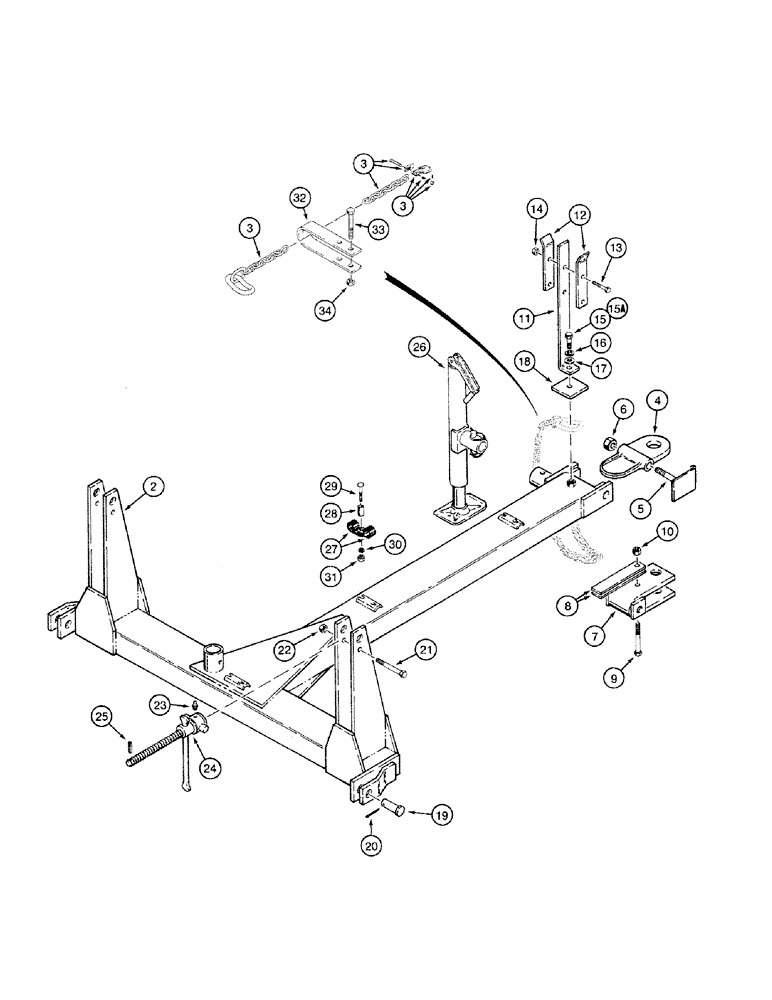

Запчасти Case IH 4200 (09-14) - HITCH (09) - CHASSIS/ATTACHMENTS

1

1546933C1

TRAILER HITCH

HITCH ASSEMBLY - combo-mulch finisher, rigid models, not shown, includes decal, item 4, shown on page 9-57

1шт.

Ref. 1, hitch for rigid models, has two support bars on the left hand side of the frame for one truss rod. Ref. 2, hitch for flex-fold models, has four support bars on the sides of the frame for two truss rods. See Figure 9-6 for truss rods, Ref. 1.

1шт.

2

1547178C1

TRAILER HITCH

HITCH ASSEMBLY - combo-mulch finisher, flex fold models, includes decal, item 4, shown on page 9-57

1шт.

Ref. 1, hitch for rigid models, has two support bars on the left hand side of the frame for one truss rod. Ref. 2, hitch for flex-fold models, has four support bars on the sides of the frame for two truss rods. See Figure 9-6 for truss rods, Ref. 1.

1шт.

3

100682C3

CHAIN (AG)

CHAIN - highway, 10,000 lb, includes hardware, if used

1шт.

3

63506C3

CHAIN (AG)

CHAIN - highway, 20,000 lb, includes hardware, if used

1шт.

4

61023C3

HITCH

HITCH - tractor, tongue type, all models, if used, see item 7

1шт.

5

121362C1

PIN

- hitch clevis

1шт.

6

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex lock, 1-1/4 inch NC

1шт.

7

129900C2

CLEVIS

HITCH - tractor, clevis type, 11 ft 10 inch, 15 ft 1 inch, and 20 ft 8 inch models only, if used

1шт.

8

540475R1

SPRING

PLATE - spring, clevis hitch, if used

2шт.

9

424-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 2

- hex, 5/8 NC x 5 inch

1шт.

10

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

11

58643C1

SUPPORT

BRACKET - hose, see pages 8-x - 8-x for hydraulic supply and return lines

1шт.

12

58644C1

HOLDER

SUPPORT - hose

2шт.

13

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch

2шт.

14

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

15

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch, (11 ft 10 inch, 15 ft 1 inch, 20 ft 8 inch, and 26 ft 2 inch models)

1шт.

15a

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (30 ft 8 inch and 34 ft 1 inch) models

1шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

17

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

18

822395C1

BAR

PLATE - 30 ft 8 inch and 34 ft 1 inch models

1шт.

19

28535R1

CLEVIS PIN

PIN - clevis, 1-1/4 x 3-1/4 inch

2шт.

REF#19 IMPROVED HITCH RETAINING PIN RELEASED.CHANGE MADE EFFECTIVE PIN JAG 0690151.SEE BULLETIN NTE SB X09 95.

1шт.

20

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

21

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

2шт.

22

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

1-2шт.

Ref. 1, hitch for rigid models, has two support bars on the left hand side of the frame for one truss rod. Ref. 2, hitch for flex-fold models, has four support bars on the sides of the frame for two truss rods. See Figure 9-6 for truss rods, Ref. 1.

1шт.

24

1980996C1

CRANK

ASSEMBLY - truss rod

1-2шт.

Ref. 1, hitch for rigid models, has two support bars on the left hand side of the frame for one truss rod. Ref. 2, hitch for flex-fold models, has four support bars on the sides of the frame for two truss rods. See Figure 9-6 for truss rods, Ref. 1.

1шт.

25

38-32424

PIN,3/8" x 1 1/2", Coiled

1-2шт.

Ref. 1, hitch for rigid models, has two support bars on the left hand side of the frame for one truss rod. Ref. 2, hitch for flex-fold models, has four support bars on the sides of the frame for two truss rods. See Figure 9-6 for truss rods, Ref. 1.

1шт.

26

1980965C1

JACK ASSY.

JACK - top

1шт.

27

129083R1

CLAMP

- hose, 5/8 inch

1шт.

28

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch, flex fold models

3шт.

29

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/4 inch, flex fold

3шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch, rigid models

6шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch, flex fold

3шт.

30

492-11038

LOCK WASHER,3/8"

6шт.

31

425-106

NUT,3/8"-16, Cl 5

6шт.

32

1279163C1

CLEVIS COUPLING

CLEVIS - highway chain

1шт.

33

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

34

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.
