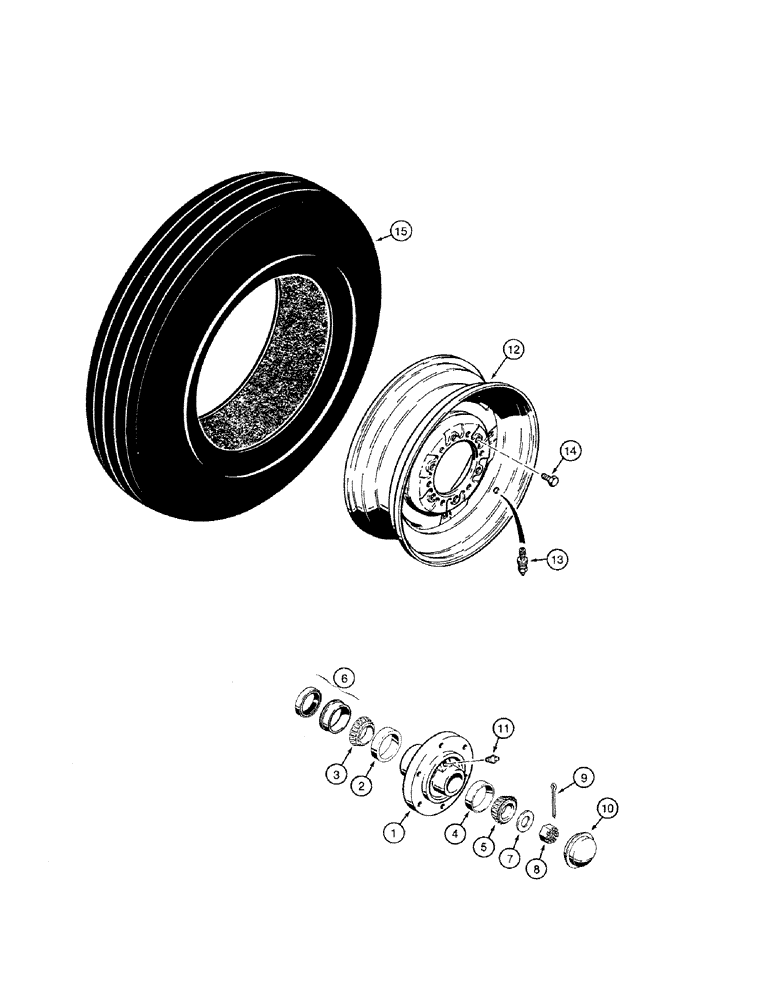

Запчасти Case IH 4200 (09-12) - WING FRAME HUBS, RIMS, AND TIRES, DUAL WHEEL ATTACHMENT (09) - CHASSIS/ATTACHMENTS

606468R21

HUB

ASSEMBLY - wheel

4шт.

1

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

2

663558R1

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING - tapered roller, inner

1шт.

4

651817R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, outer

1шт.

6

606556R91

OIL SEAL

SEAL - wheel hub, includes sleeve

4шт.

7

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

4шт.

8

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

4шт.

9

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

4шт.

10

663906R1

CAP

- wheel hub

4шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

12

A57879

RIM

- 15 x 8 inch

4шт.

13

810769C1

VALVE

- tubeless tire, steel

4шт.

14

277538A1

BOLT,1/2" - 20 x 1.42"

- hex conical, 1/2 NF x 1-5/32 inch (Replaces 549962R1)

24шт.

15

REF

INSTRUCTION

TIRE - 9.5L-15, 8 ply rating, purchase locally

4шт.
