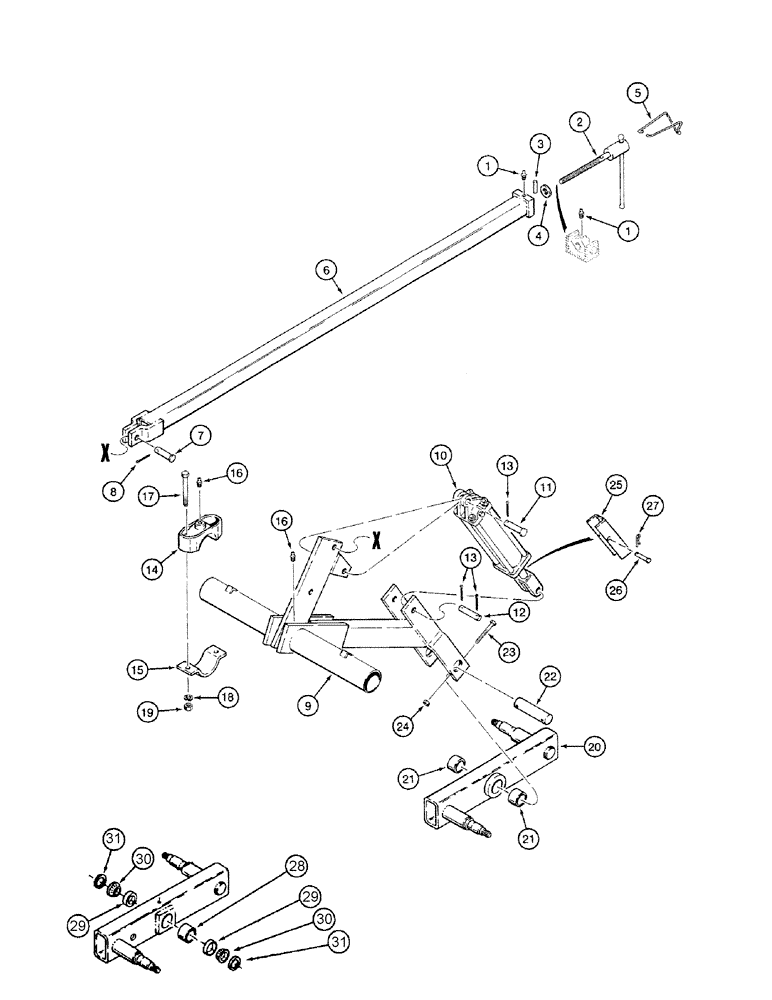

Запчасти Case IH 4200 (09-11) - WING FRAME AXLES AND DEPTH CONTROL, DUAL WHEELS (09) - CHASSIS/ATTACHMENTS

1

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

4шт.

2

1284398C2

STUD

ROD - truss, with crank, depth control

2шт.

3

616387R1

PIN,3/8" x 2", Coiled

truss rod to trunnion 3/8" x 2", Coiled

2шт.

4

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

2шт.

5

1973010C1

RETAINER

- spring

2шт.

6

1995633C1

TRUSS ROD

TUBE - 2428 mm long, truss rod, 26 ft 2 inch and 30 ft 8 inch models

2шт.

6

1986228C1

TRUSS ROD

TUBE - 2270 mm long, truss rod, 34 ft 1 inch models

2шт.

7

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - headed, 1 x 2-3/4 inch

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

9

135737A1

ROCKSHAFT

- wing frame, ID-93.5 mm (use with REF. 19A 103073A1 and REF 22 103069A1)

2шт.

9

1995814C1

ROCKSHAFT

- wing frame, ID-122 mm (use with REF. 19A 1960730C1 and REF. 22 1279363C2)

2шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - depth control, see pages 8-3, 8-5, and 8-9 for correct cylinder assembly

2шт.

11

810751C1

PIN

- clevis, 1 x 3-1/2 inch

2шт.

12

1547313C1

PIN

- pivot, 1 x 5-7/8 inch

2шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

6шт.

14

1263593C1

SUPPORT

BEARING - axle

4шт.

15

540979R1

BEARING CAP,3"

CAP - bearing, wheel shaft

4шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

6шт.

17

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

8шт.

18

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

19

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

19a

103073A1

TUBE,434 mm Length

AXLE ASSEMBLY - wing frame (use with REF. 9 135737A1 and REF. 22 103069A1))

2шт.

19a

1960730C1

CENTER AXLE

AXLE ASSEMBLY - wing frame (use with REF. 9 1995814C1 and REF. 22 1279363C2)

2шт.

20

NSS

NOT SOLD SEPARAT

AXLE - wing frame

2шт.

21

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

- axle

2шт.

Bushing Replaced By Item 28,29,30,31 On Newer Models

1шт.

22

103069A1

PIN

- pivot, rockshaft to axle (use with REF. 9 135737A1 and REF. 19A 103073A1))

2шт.

22

1279363C2

PIN,50.8mm OD x 165mm L

- pivot, rockshaft to axle (use with REF. 9 1995814C1 and REF. 19A 1960730C1)

2шт.

23

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8

4шт.

24

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

25

1337050C1

CHANNEL

- transport lockout

2шт.

26

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - clevis, 5/16 x 2-3/4 inch

2шт.

27

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair, 3/32 x 1-29/32 inch

2шт.

28

107921A1

TUBE

- spacing, S/N JAG0067477 and after

1шт.

29

453012R1

BEARING CUP

BEARING, CUP - tapered roller, S/N JAG0067477 and after

2шт.

30

8050528

ROLLER BEARING

BEARING, CONE - tapered roller, S/N JAG0067477 and after

2шт.

31

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

- spacer, S/N JAG0067477 and after

2шт.
