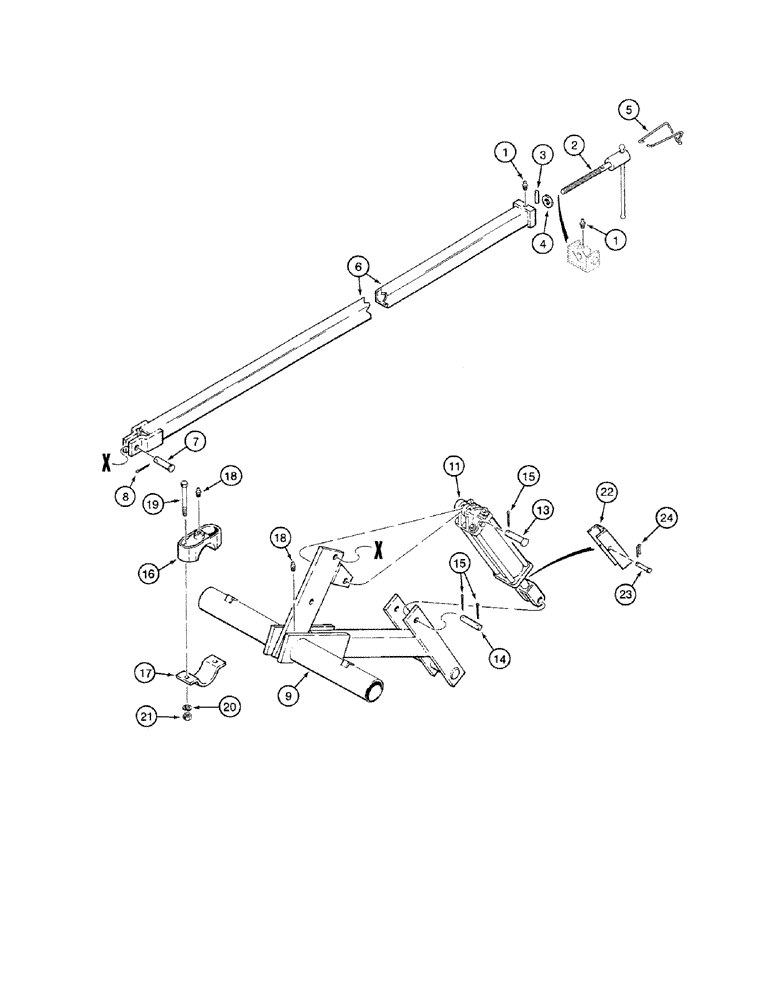

Запчасти Case IH 4200 (09-10) - WING FRAME AXLES AND DEPTH CONTROL, SINGLE WHEEL (09) - CHASSIS/ATTACHMENTS

1

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

4шт.

2

1284398C2

STUD

ROD - truss, with crank, depth control

2шт.

3

616387R1

PIN,3/8" x 2", Coiled

truss rod to trunnion 3/8" x 2", Coiled

2шт.

4

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

2шт.

5

1973010C1

RETAINER

- spring

2шт.

6

1995735C1

TRUSS ROD

TUBE - 2598 mm long, truss rod, 20 ft 8 inch models

2шт.

7

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - headed, 1 x 2-3/4 inch

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

9

1995852C1

ROCKSHAFT

- wing frame, left-hand

1шт.

10

1995853C1

ROCKSHAFT

- wing frame, right-hand, not shown

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - depth control, see pages 8-3, 8-5, and 8-9 for correct cylinder assembly

2шт.

13

810751C1

PIN

- clevis, 1 x 3-1/2 inch

4шт.

14

1547313C1

PIN

- pivot, 1 x 5-7/8 inch

4шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

12шт.

16

1263593C1

SUPPORT

BEARING - axle

4шт.

17

540979R1

BEARING CAP,3"

CAP - bearing, wheel shaft

4шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

6шт.

19

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

8шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

21

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

22

1337050C1

CHANNEL

- transport lockout

2шт.

23

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - clevis, 5/16 x 2-3/4 inch

2шт.

24

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair, 3/32 x 1-29/32 inch

2шт.
