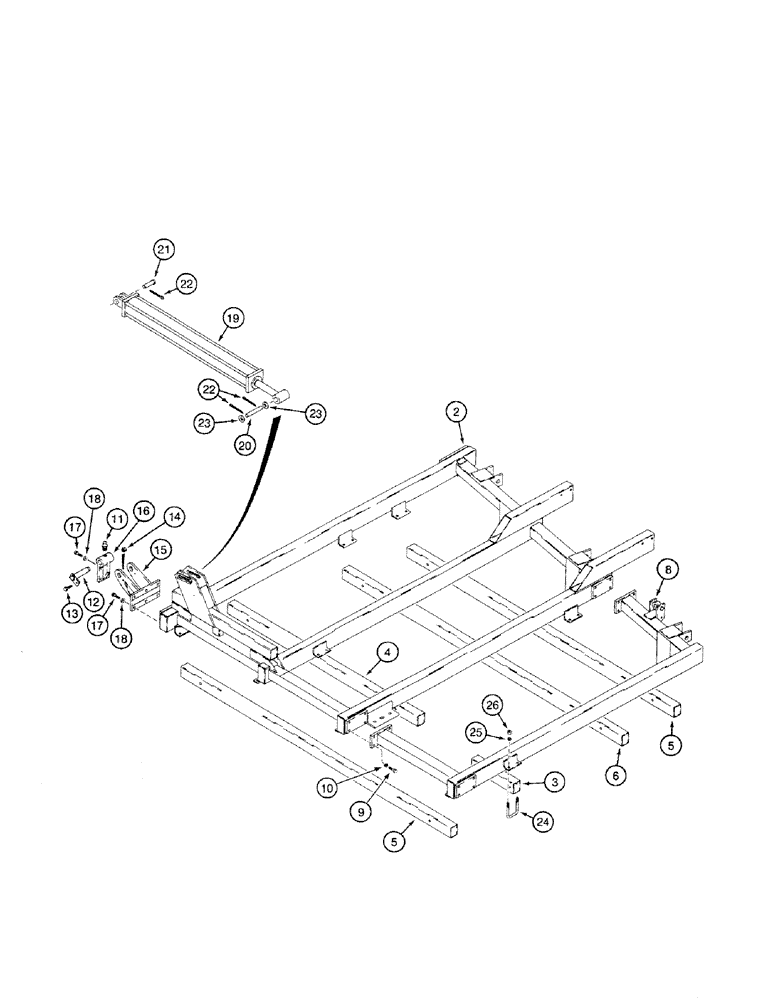

Запчасти Case IH 4200 (09-09) - FLEX FOLD WING FRAMES, 34 FT 1 INCH MULCH FINISHER (09) - CHASSIS/ATTACHMENTS

1

1995888C1

FRAME

- wing, left-hand, not shown

1шт.

2

1995889C1

FRAME

- wing, right-hand

1шт.

3

1547732C1

TUBE,471 mm Length

- square, 471 mm (18-1/2 inch) long

2шт.

4

1547782C1

TUBE,1979 mm Length

- square, 1979 mm (78 inch) long

2шт.

5

1986207C1

TUBE

- square, 2880 mm (113 inch) long

4шт.

6

1547780C1

TUBE,2999 mm Length

- square, 2999 mm (118 inch) long

2шт.

7

1986237C1

FRAME

EXTENSION - wing frame, left-hand, not shown

1шт.

8

1986238C1

FRAME

EXTENSION - wing frame, right-hand

1шт.

9

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

16шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

4шт.

12

1986309C1

PIN

- pivot, wing frame

4шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

14

230-4106

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

15

1986219C1

SUPPORT

- pivot

4шт.

16

1986220C1

PIVOT

- wing frame, bolts to main frame

4шт.

17

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch, grade 8

40шт.

18

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

40шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing lift, see page 8-5 or 8-9 for correct cylinder assembly

2шт.

20

1547313C1

PIN

- pivot, 1 x 5-7/8 inch

2шт.

21

810751C1

PIN

- headed, 1 x 3-1/4 inch

2шт.

22

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

6шт.

23

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/32 inch

4шт.

24

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT - 5/8 inch NC

1шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

425-1010

NUT,5/8"-11, G5

1шт.
