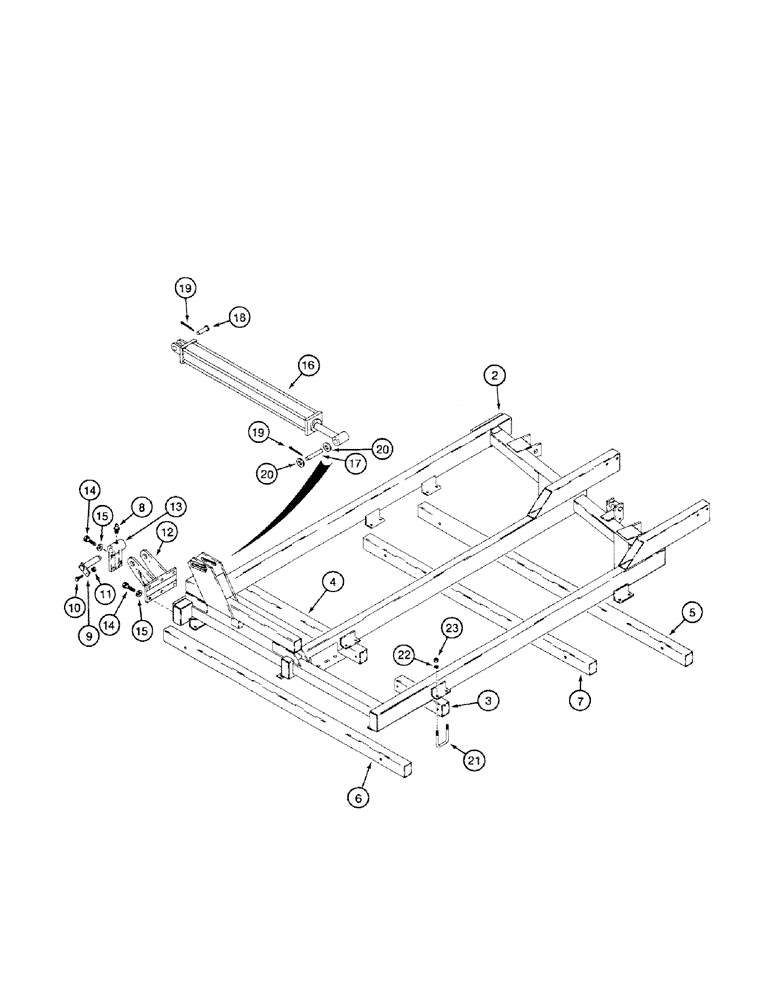

Запчасти Case IH 4200 (09-08) - FLEX FOLD WING FRAMES, 30 FT 8 INCH MULCH FINISHER (09) - CHASSIS/ATTACHMENTS

1

1995886C1

FRAME

- wing, left-hand, not shown

1шт.

2

1995887C1

FRAME

- wing, right-hand

1шт.

3

1547732C1

TUBE,471 mm Length

- square, 471 mm (18-1/2 inch) long

2шт.

4

1547783C1

TUBE,1129 mm Length

- square, 1129 mm (44-7/16 inch) long

2шт.

5

1547784C1

TUBE,2560mm L

- square, 2560 mm (101 inch) long

2шт.

6

1547792C1

TUBE,2301 mm Length

- square, 2301 mm (91 inch) long

2шт.

7

1547781C1

TUBE,2149 mm Length

- square, 2149 mm (85 inch) long

2шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

4шт.

9

1986309C1

PIN

- pivot, wing frame

4шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

11

230-4106

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

12

1986219C1

SUPPORT

- pivot

4шт.

13

1986220C1

PIVOT

- wing frame

4шт.

14

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch, grade 8

40шт.

15

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

40шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing lift, see page 8-5 or 8-9 for correct cylinder assembly

2шт.

17

1547313C1

PIN

- pivot, 1 x 5-7/8 inch

4шт.

18

810751C1

PIN

- headed, 1 x 3-1/4 inch

4шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

12шт.

20

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/32 inch

4шт.

21

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT - 5/8 inch NC

1шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

425-1010

NUT,5/8"-11, G5

1шт.
