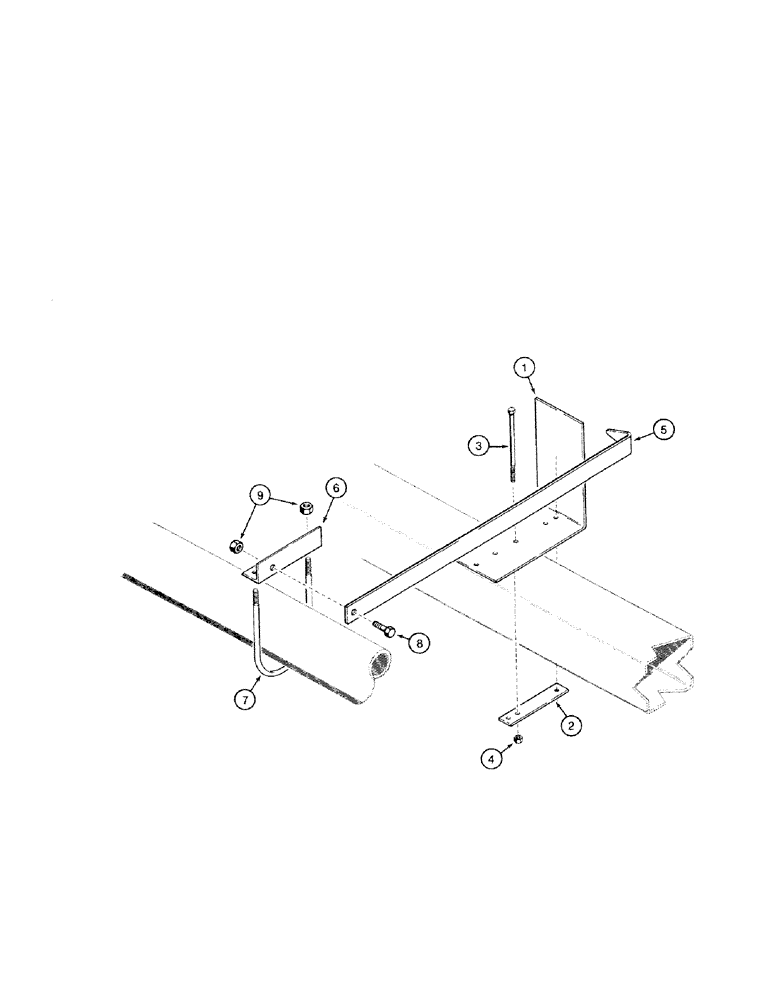

Запчасти Case IH 4200 (09-04) - DEPTH CONTROL GAUGE, REAR MAIN FRAME ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

1

91368C1

SUPPORT

BRACKET - depth gauge

1шт.

2

91371C1

BAR

- depth gauge clamping

1шт.

3

413-480

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- hex, 1/4 NC x 5 inch

2шт.

4

131-664

LOCK NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.

5

91369C1

BAR

- depth indicator

1шт.

6

91370C1

ANGLE

BRACKET - depth indicator bar

1шт.

7

26943R1

U-BOLT,3/8" - 16 x 5 1/2"

- depth indicator bracket retaining

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

9411655

LOCK NUT,3/8"-16, GB

- Special 3/8"-16, GB

3шт.

10

91372C1

DECAL

- depth indicator, not shown, see page 9-56, item 6, for illustration

1шт.
