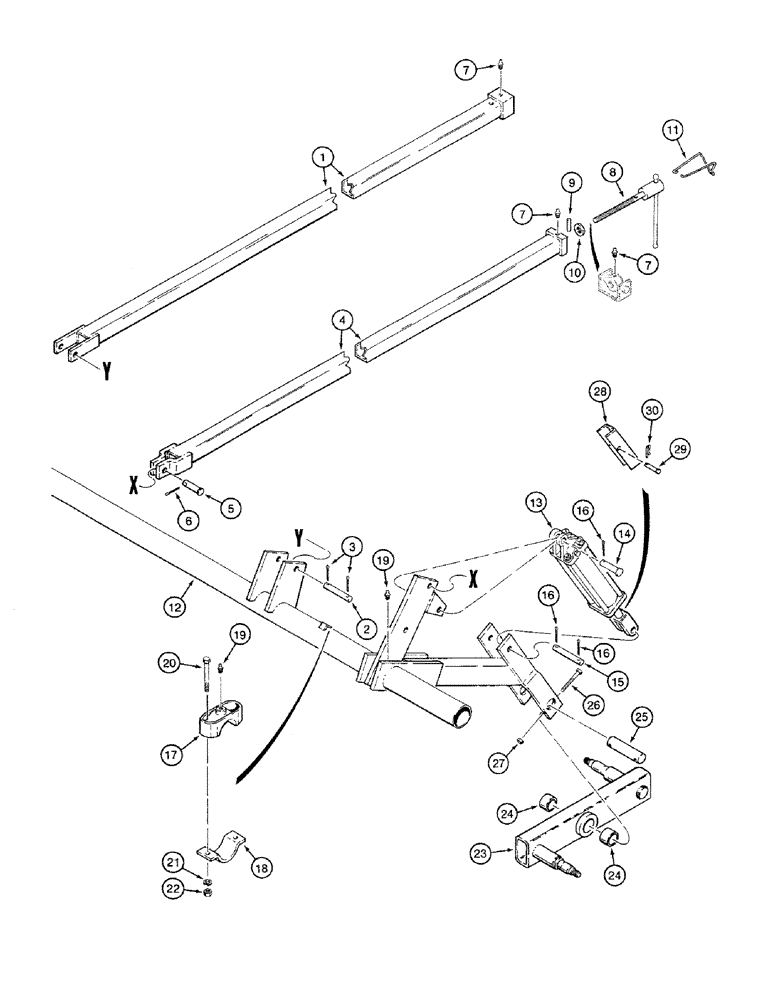

Запчасти Case IH 4200 (09-03) - MAIN FRAME AXLES AND DEPTH CONTROL (09) - CHASSIS/ATTACHMENTS

1

1969021C1

TUBE

- 4100 mm long, truss rod, see page 9-27 for self-leveling crank, item 24

1-2шт.

Used on Machines Prior To SN: CCD0027300, SN: CCD0027300 And Above Use 87409038

1шт.

2

1547313C1

PIN

- pivot, 1 x 5-7/8 inch

1-2шт.

3

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2-4шт.

4

1969065C1

TRUSS ROD

TUBE - 2850 mm long, truss rod

2шт.

5

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - headed, 1 x 2-3/4 inch

2шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

5-6шт.

8

1284398C2

STUD

ROD - truss, with crank, depth control

2шт.

9

616387R1

PIN,3/8" x 2", Coiled

truss rod to trunnion 3/8" x 2", Coiled

2шт.

10

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

2шт.

11

1973010C1

RETAINER

- spring

2шт.

12

1960725C1

ROCKSHAFT

- main frame, see page 9-9 for depth gauge

1шт.

1960725C1 was changed after serial number JAG0398480. The new part number is 135732A2. Refer to service bulletin NTE SB 021 95.

1шт.

12a

135732A1

ROCKSHAFT

1шт.

1960725C1 was changed after serial number JAG0398480. The new part number is 135732A2. Refer to service bulletin NTE SB 021 95.

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - depth control, see pages 8-3, 8-5, and 8-9 for correct cylinder assembly

2шт.

14

810751C1

PIN

- clevis, 1 x 3-1/2 inch

2шт.

15

1547313C1

PIN

- pivot, 1 x 5-7/8 inch

2шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

6шт.

17

1263593C1

SUPPORT

BEARING - axle

4шт.

18

540979R1

BEARING CAP,3"

CAP - bearing, wheel shaft

4шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

6шт.

20

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

8шт.

21

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

22

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

1960730C1

CENTER AXLE

AXLE ASSEMBLY - main frame wheels

2шт.

23

NSS

NOT SOLD SEPARAT

AXLE - main frame

1шт.

24

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

- axle, for units with bearings order - 107921A1 spacer, 453012R1 bearing cup, 8050528 bearing cone, 103066A1 washer

2шт.

25

1279363C2

PIN,50.8mm OD x 165mm L

- pivot, Serial Range: rockshaft-axle

2шт.

25a

103069A1

PIN

pivot

1шт.

26

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8

4шт.

27

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

28

1337050C1

CHANNEL

- transport lockout

2шт.

29

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - clevis, 5/16 x 2-3/4 inch, transport lockout channel

2шт.

30

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair, 3/32 x 1-29/32 inch

2шт.

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

2шт.

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer

2шт.

107921A2

TUBE

sleeve

1шт.

103073A1

TUBE,434 mm Length

1шт.

103069A2

PIN

ASSY.

1шт.

131-1419

NUT,1 1/2"-6, Thin

pin

1шт.
