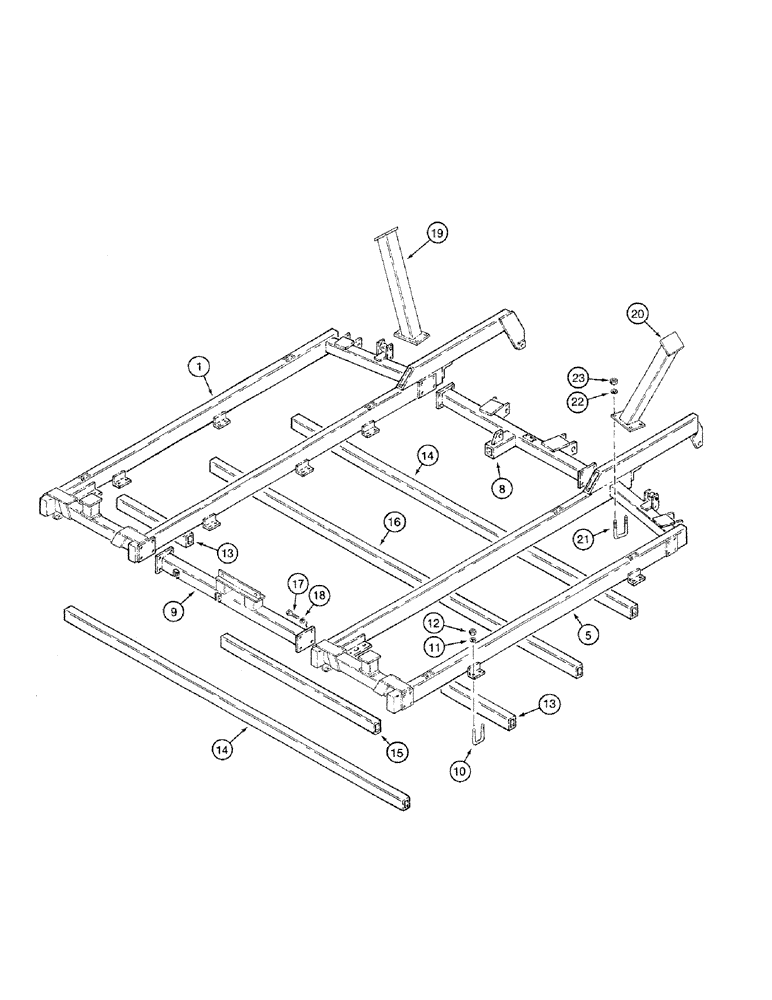

Запчасти Case IH 4200 (09-02) - FLEX FOLD MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

1547176C1

FRAME

- flex fold, left-hand

1шт.

2

1284365C2

REFLECTOR

- amber, not shown

1шт.

3

1284374C1

REFLECTOR,Reflector Red

- red, not shown

1шт.

4

59051C2

PRODUCT GRAPHIC

DECAL - warning, keep clear, illustrated on page 9-56

1шт.

5

1547177C1

FRAME

- flex fold, right-hand

1шт.

6

1284374C1

REFLECTOR,Reflector Red

- red, not shown

1шт.

7

59051C2

PRODUCT GRAPHIC

DECAL - warning, keep clear, illustrated on page 9-56

1шт.

8

1969033C1

TUBE

- square, front cross

1шт.

9

1986301C1

TUBE

- square, rear cross

1шт.

10

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT - main frame

18шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

36шт.

12

425-1010

NUT,5/8"-11, G5

36шт.

13

1547732C1

TUBE,471 mm Length

- square, 471 mm (18-1/2 inch) long

2шт.

14

1547734C1

TUBE,3841 mm Length

- square, 3841 mm (151 inch) long

2шт.

15

1547793C1

TUBE,1765 mm Length

- square, 1765 mm (69-1/2 inch) long

1шт.

16

1986244C1

TUBE

- square, 4170 mm (164 inch) long

1шт.

17

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

16шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

19

1995663C1

STOP

- wing lift, left-hand

1шт.

Not used on 6.29 m (20 ft 8 inch) models.

1шт.

20

1995662C1

STOP

- wing lift, right-hand

1шт.

Not used on 6.29 m (20 ft 8 inch) models.

1шт.

21

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

Not used on 6.29 m (20 ft 8 inch) models.

1шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

Not used on 6.29 m (20 ft 8 inch) models.

1шт.

23

425-1010

NUT,5/8"-11, G5

8шт.

Not used on 6.29 m (20 ft 8 inch) models.

1шт.
