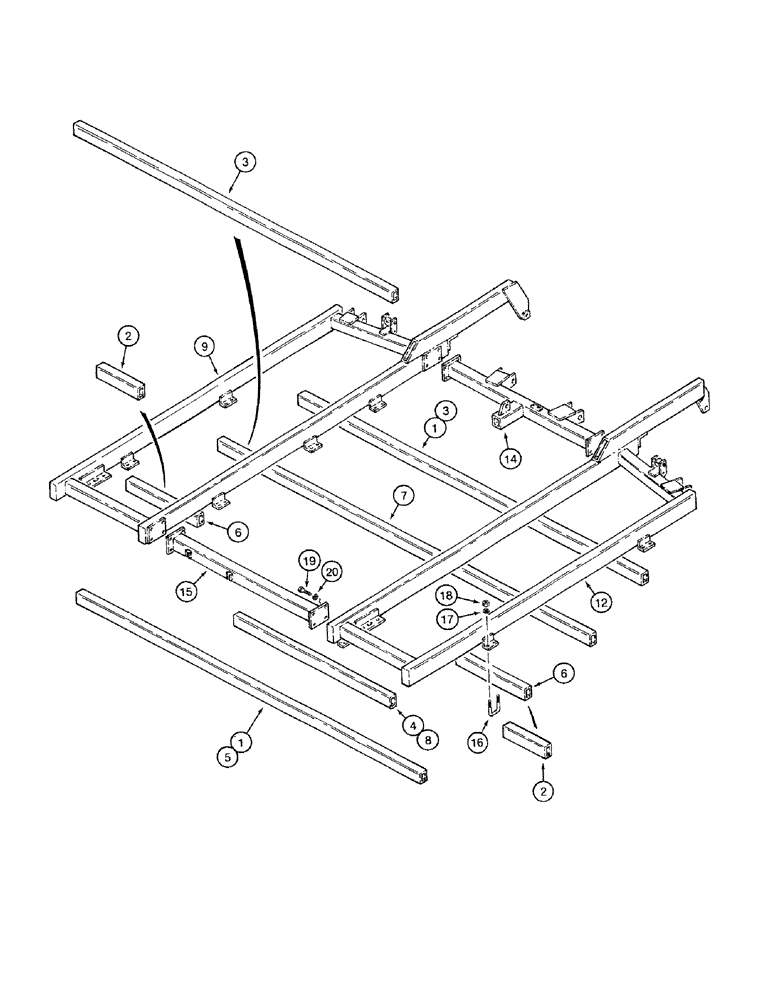

Запчасти Case IH 4200 (09-01) - RIGID MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

1546978C1

TUBE,3558 mm Length

- square, 3558 mm (140 inch) long, 3.6 M (11 foot 10 inch) mulch finisher

2шт.

2

1547732C1

TUBE,471 mm Length

- square, 471 mm (18-1/2 inch) long, 3.6 M (11 foot 10 inch) mulch finisher

2шт.

3

1547734C1

TUBE,3841 mm Length

- square, 3841 mm (151 inch) long, 3.6 M (11 foot 10 inch) mulch finisher

1шт.

4

1547793C1

TUBE,1765 mm Length

- square, 1765 mm (69-1/2 inch) long, 3.6 M (11 foot 10 inch) mulch finisher

1шт.

5

1547734C1

TUBE,3841 mm Length

- square, 3841 mm (151 inch) long, 4.6 m (15 ft 1 inch) mulch finisher

2шт.

6

1547733C1

TUBE,780 mm Length

- square, 780 mm (31 inch) long, 4.6 m (15 ft 1 inch) mulch finisher

2шт.

7

1986244C1

TUBE

- square, 4170 mm (164 inch) long, 4.6 m (15 ft 1 inch) mulch finisher

1шт.

8

1547793C1

TUBE,1765 mm Length

- square, 1765 mm (69-1/2 inch)long, 4.6 m (15 ft 1 inch) mulch finisher

1шт.

9

1547174C1

FRAME

- rigid, left-hand, parts common to both rigid frame widths

1шт.

10

1284365C2

REFLECTOR

- amber, not shown, parts common to both rigid frame widths

1шт.

11

1284374C1

REFLECTOR,Reflector Red

- red, not shown, parts common to both rigid frame widths

1шт.

12

1547175C1

FRAME

- rigid, right-hand, parts common to both rigid frame widths

1шт.

13

1284374C1

REFLECTOR,Reflector Red

- red, not shown, parts common to both rigid frame widths

1шт.

14

1969033C1

TUBE

- square, front cross, parts common to both rigid frame widths

1шт.

15

1969036C1

TUBE

- square, rear cross, parts common to both rigid frame widths

1шт.

16

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT - main frame, parts common to both rigid frame widths

18шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Parts common to both rigid frame widths 5/8"

36шт.

18

425-1010

NUT,5/8"-11, G5

Parts common to both rigid frame widths 5/8"-11, G5

36шт.

19

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Parts common to both rigid frame widths Hex, 5/8"-11 x 1 1/4", G5, Full Thd

16шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Parts common to both rigid frame widths 5/8"

16шт.
