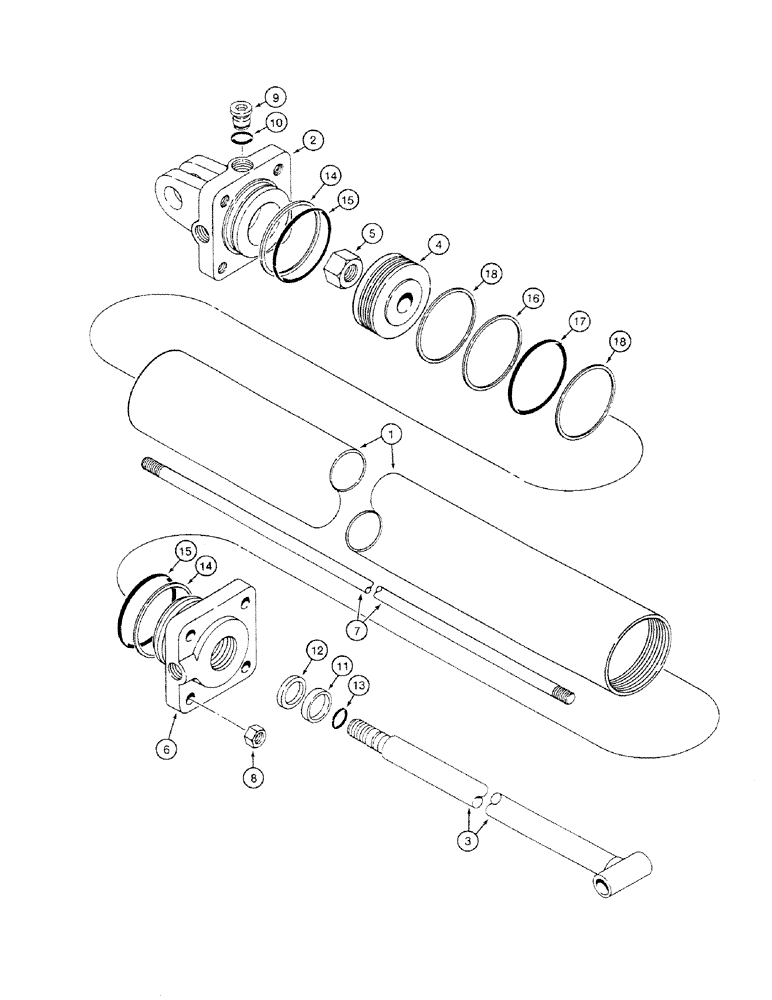

Запчасти Case IH 4200 (08-12) - WING LIFT CYLINDER, 1954089C1, 4-1/2 ID X 34 IN STROKE 30 FT 8 INCH AND 34 FT 1 INCH MODELS (08) - HYDRAULICS

1954089C1

CYLINDER

ASSEMBLY - 4-1/2 (114) ID x 34 inch (864 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1954155C1

JACK HEAD

CAP - end, cylinder

1шт.

3

1954156C1

ROD

- piston

1шт.

4

1954189C1

JACK PISTON

PISTON - cylinder

1шт.

5

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

1шт.

6

1954158C1

HEAD

GLAND - cylinder

1шт.

7

1954159C1

BOLT,3/4" - 10 x 39.812"

- cylinder tie, special

4шт.

8

129-108

NUT,3/4"-10, G5

4шт.

9

224582C1

PLUG

- phasing

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of Seal Kit P/N 1954188C1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of Seal Kit P/N 1954188C1

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

18

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit P/N 1954188C1

1шт.

1954188C1

SEAL KIT

- seal, Includes: Ref. 10-18

1шт.
