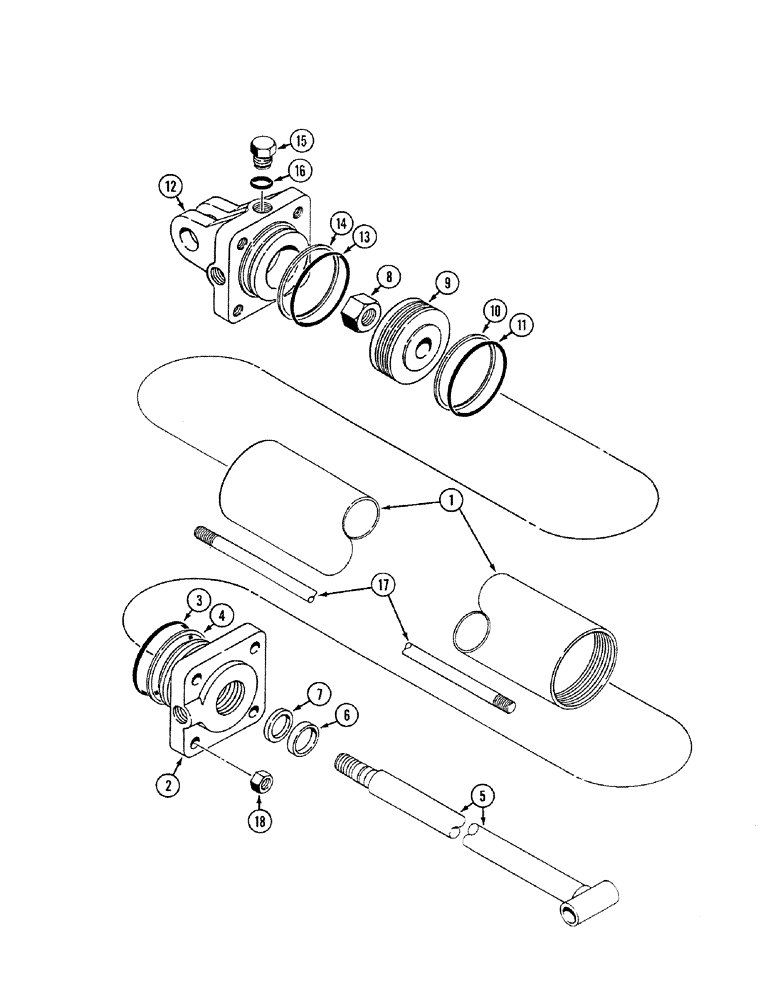

Запчасти Case IH 4200 (08-11) - WING LIFT CYLINDER, 224795C91, 4 ID X 34 INCH STROKE, 26 FT 2 INCH MODELS (08) - HYDRAULICS

224795C91

CYLINDER

ASSEMBLY - 4 ID x 34 stroke, 3/4-16 inch ports

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1285881C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-3/4 ID x 4 inch OD, gland

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

5

1285955C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

9

149930C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3-1/2 ID x 3-11/16 inch OD, backup, piston seal

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

12

1272919C1

CYLINDER HEAD

HEAD - cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Seal Kit P/N 1272883C2

1шт.

17

224798C1

BOLT,5/8" - 11 x 39.2"

- tie, cylinder

4шт.

18

425-1010

NUT,5/8"-11, G5

4шт.

1272883C2

SEAL

KIT - seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 13, 14 and 16.

1шт.
