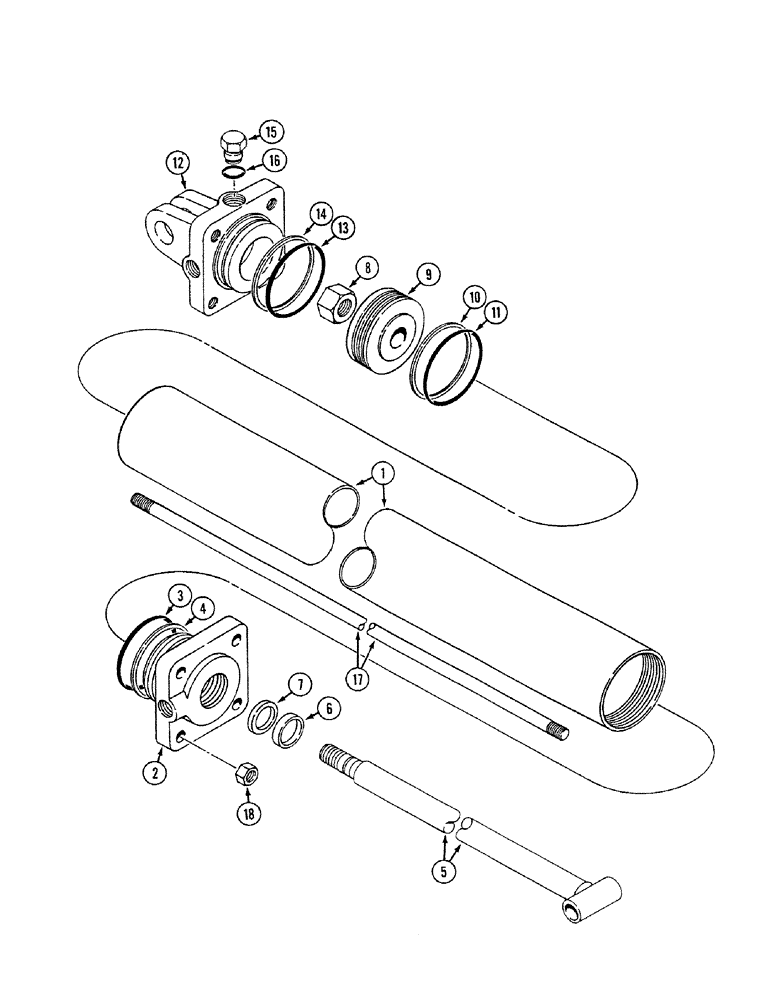

Запчасти Case IH 4200 (08-10) - WING LIFT CYLINDER, 1285753C91, 3-1/2 ID X 34 INCH STROKE, 20 FT 8 INCH MODELS (08) - HYDRAULICS

1285753C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 34 stroke, 3/4-16 inch ports

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272826C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch, gland

1шт.

Part of Seal Kit P/N 84919C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 84919C2

1шт.

5

224792C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD, backup, piston seal

1шт.

Part of Seal Kit P/N 84919C2

1шт.

12

1272825C1

HEAD

- cylinder, closed end, replaces 1923599C1 head

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, cylinder head

1шт.

Part of Seal Kit P/N 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 84919C2

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Seal Kit P/N 84919C2

1шт.

17

1285832C1

TIE-ROD

BOLT - tie, cylinder

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

84919C2

GASKET KIT

KIT - seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 13, 14 and 16 and (2) wear rings not used on this cylinder

1шт.
