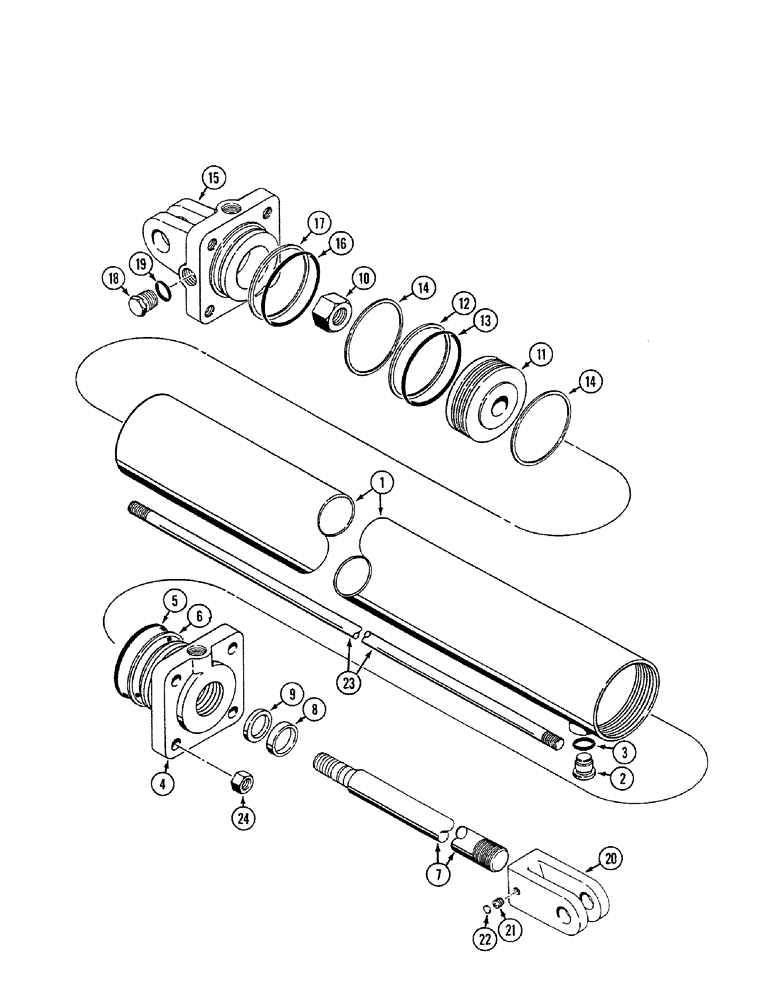

Запчасти Case IH 4200 (08-09) - DISC GANG AND DEPTH CONTROL CYLINDER, 1282328C92, 3-3/4 ID X 8 INCH STROKE, FLEX FOLD MODELS (08) - HYDRAULICS

1282328C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-3/4 ID x 8 stroke, 3/4-16 inch ports

1шт.

87423766R

REMAN-HYD CYLINDER

CYLINDER ASSEMBLY - 3-3/4 ID x 8 stroke, 3/4-16 inch ports

1шт.

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

1

1978386C1

HYD TUBE

TUBE - cylinder

1шт.

2

224582C1

PLUG

- hex socket, 3/4-16 inch O-ring boss, phasing

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch tube OD

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

4

1285799C1

HEAD

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 3-1/2 ID x 3-3/4 inch OD, gland

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

7

1267056C1

ROD

- piston

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

10

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

11

92520C1

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-7/16 inch OD, backup, piston seal

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part ot Seal Kit P/N 80115C2

1шт.

15

1285798C1

END

HEAD - cylinder, closed end

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/2 ID x 3-3/4 inch OD, cylinder head

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

18

9410359

PLUG

- hex, 3/4-16 inch O-ring boss, cylinder head

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch tube OD, plug

1шт.

Part ot Seal Kit P/N 80115C2

1шт.

20

1267057C1

CLEVIS,3/8" - 16

- rod end

1шт.

21

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

22

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

23

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

24

425-1010

NUT,5/8"-11, G5

4шт.

80115C2

SEAL KIT

KIT - seal, iIncludes: Ref. 3, 5, 6, 8, 9, 12-14, 16, 17 and 19.

1шт.
