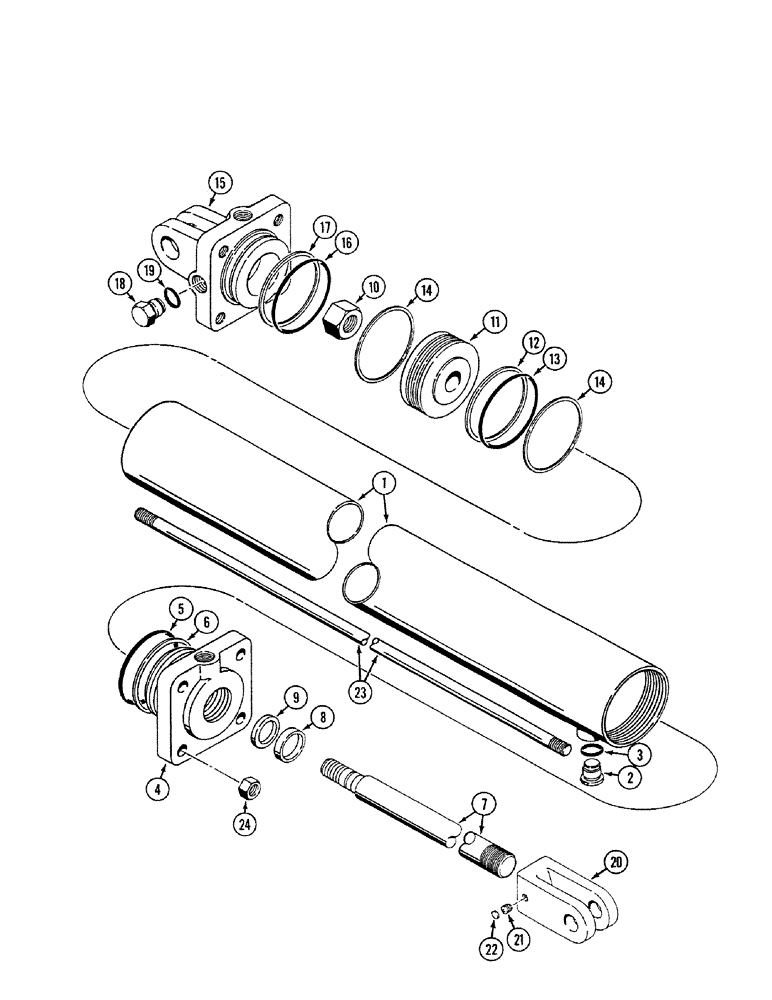

Запчасти Case IH 4200 (08-08) - DISC GANG AND DEPTH CONTROL CYLINDER, 1282324C92, 3-1/2 ID X 8 INCH STROKE, FLEX FOLD MODELS (08) - HYDRAULICS

1282324C92

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 stroke, 3/4-16 inch ports

1шт.

84255910R

REMAN-HYD CYLINDER

4200, Reman For New P/N 1282324C92

1шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

1

145424C2

HYD TUBE,3.5" ID, 10.167" Length

TUBE - cylinder

1шт.

2

224582C1

PLUG

- clean out

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

Part of Seal Kit P/N 84919C2

1шт.

4

1272826C1

HEAD

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, gland

1шт.

Part of Seal Kit P/N 84919C2

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 84919C2

1шт.

7

145231C1

PISTON ROD

ROD - piston

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

10

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

11

85179C1

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 84919C2

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD, backup, piston seal

1шт.

Part of Seal Kit P/N 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit P/N 84919C2

1шт.

15

1272825C1

HEAD

- cylinder, closed end, replaces 1923599C1 cylinder head

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, cylinder head

1шт.

Part of Seal Kit P/N 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 84919C2

1шт.

18

9410359

PLUG

- hex, 3/4-16 inch O-ring boss, cylinder head

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

Part of Seal Kit P/N 84919C2

1шт.

20

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

21

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

22

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

23

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

84919C2

GASKET KIT

KIT - seal, Includes: Ref. 3, 5, 6, 8, 9, 12-14, 16, 17 and 19.

1шт.

Used on Machines Prior To SN: CCD0027300, SN: CCD0027300 And Above Use 87409038

1шт.
