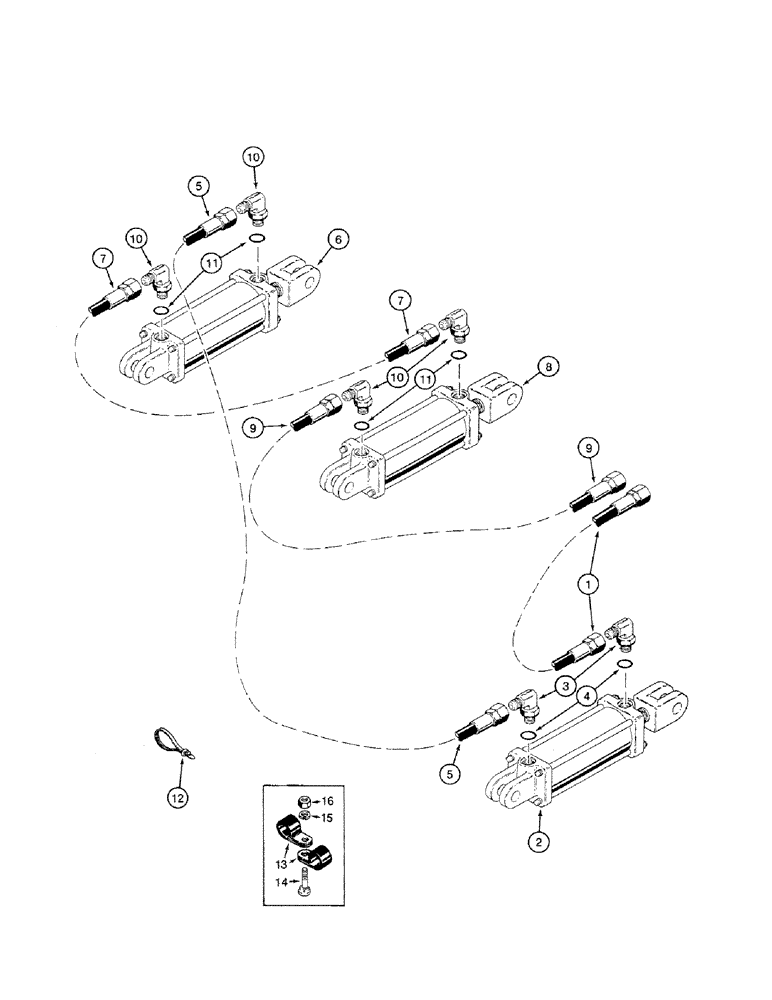

Запчасти Case IH 4200 (08-03) - HYDRAULIC DISC GANG CONTROL, 20 FT 8 INCH AND 26 FT 2 INCH MULCH FINISHER (08) - HYDRAULICS

1

1284331C1

HOSE ASSY.

HOSE- 3/8 x 310 inch long, right-hand cylinder rod end

1шт.

2

1282322C92

CYLINDER

ASSEMBLY - 3-1/4 ID x 8 inch stroke, 3/4-16 inch ports, right-hand wing frame disc gang control, parts list page 8-15

1шт.

2

87423770R

REMAN-HYD CYLINDER

4200 CASE IH COMBO-MULCH FINISHER, Reman for New P/N 1282322C92

1шт.

2

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

1284260C1

HYDRAULIC HOSE

HOSE - 3/8 x 265 inch long, right-hand cylinder closed end to left-hand cylinder rod end

1шт.

6

1282324C92

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, 3/4-16 inch ports, left-hand wing frame disc gang control, parts list page 8-17

1шт.

6

84255910R

REMAN-HYD CYLINDER

4200, Reman For New P/N 1282324C92

1шт.

6

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

7

139519C2

HYDRAULIC HOSE

HOSE - 3/8 x 135 inch long, left-hand cylinder closed end to center cylinder rod end

1шт.

8

1282328C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-3/4 ID x 8 inch stroke, 3/4-16 inch ports, main frame disc gang control, parts list page 8-19

1шт.

8

87423766R

REMAN-HYD CYLINDER

CYLINDER ASSEMBLY - 3-3/4 ID x 8 inch stroke, 3/4-16 inch ports, main frame disc gang control, parts list page 8-19

1шт.

8

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

9

129765C2

HYDRAULIC HOSE

HOSE - 3/8 x 200 inch long, center cylinder closed end

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - hose tie

1шт.

13

129083R1

CLAMP

- hose, 5/8 inch

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.
