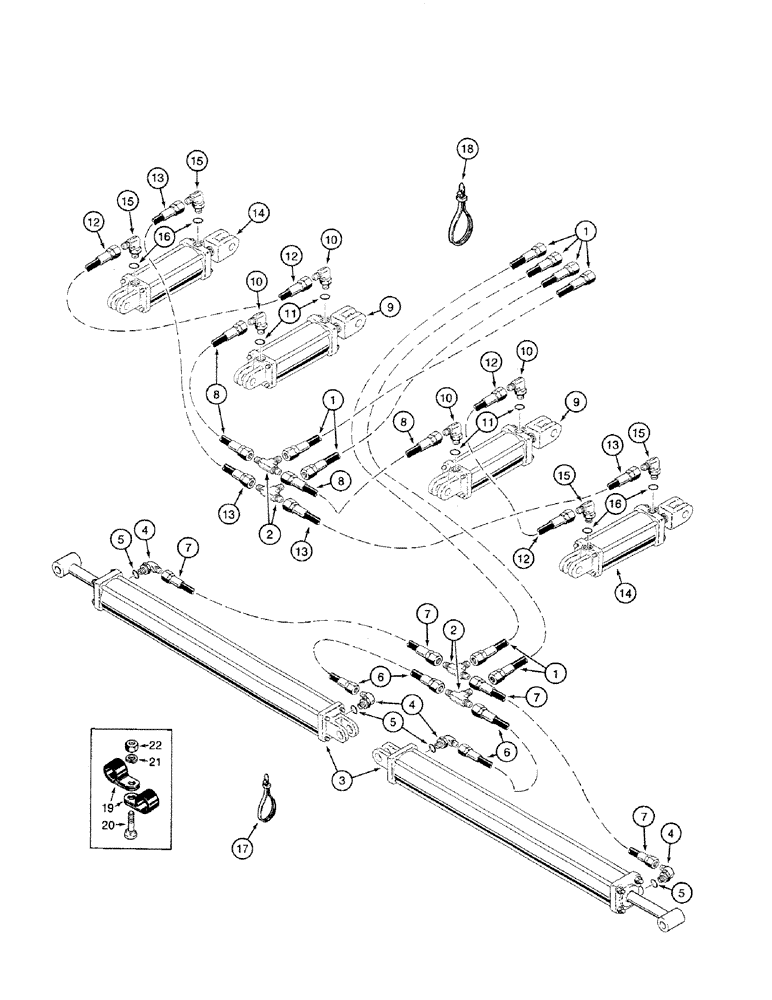

Запчасти Case IH 4200 (08-02) - FLEX FOLD AND DEPTH CONTROL HYD. SYSTEM, 20 FT 8 IN AND 26 FT 2 IN MULCH FINISHER (08) - HYDRAULICS

1

1284331C1

HOSE ASSY.

HOSE- 3/8 x 310 long, supply and return

4шт.

2

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

4шт.

3

1285753C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 34 inch stroke, wing lift, 6.29 m (20 ft 8 inch) models, parts list page 8-21

2шт.

3

224795C91

CYLINDER

ASSEMBLY - 4 ID x 34 inch stroke, wing lift, 7.97 m (26 ft 2 inch) models, parts list page 8-23

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

1284323C1

HYDRAULIC HOSE

HOSE - 3/8 x 15 inch long, wing lift cylinder closed end

2шт.

7

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

Wing Lift Cylinder Rod End 9.65 mm ID x 1193.80 mm, SAE 100R1

2шт.

8

1284315C1

HYDRAULIC HOSE

HOSE - 3/8 x 65 inch long, closed end of front hitch cylinder

2шт.

9

1282324C92

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, front hitch, parts list page 8-17

2шт.

84255910R

REMAN-HYD CYLINDER

4200 CASE IH COMBO-MULCH FINISHER, Reman for New P/N 1282322C92

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

195504C2

HYDRAULIC HOSE

HOSE - 3/8 x 80 inch long, inside depth cylinder rod end to outside depth cylinder closed end, 6.29 m (20 ft 8 inch) models

2шт.

12

812381C2

HYDRAULIC HOSE

HOSE - 3/8 x 115 inch long, inside depth cylinder rod end to outside depth cylinder closed end, 7.97 m (26 ft 2 inch) models

2шт.

13

139654C2

HYDRAULIC HOSE

HOSE - 3/8 x 125 inch long, outside depth cylinder rod end, 6.29 m (20 ft 8 inch) models

2шт.

13

129759C2

HYDRAULIC HOSE

HOSE - 3/8 x 180 inch long, outside depth cylinder rod end 7.97 m (26 ft 2 inch) models

2шт.

14

1282322C92

CYLINDER

ASSEMBLY - 3-1/4 ID x 8 inch stroke, parts list page 8-15

2шт.

87423770R

REMAN-HYD CYLINDER

4200, Reman for New P/N 1282322C92

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

15

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - hose tie

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

19

129083R1

CLAMP

- hose, 5/8 inch

1шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.
