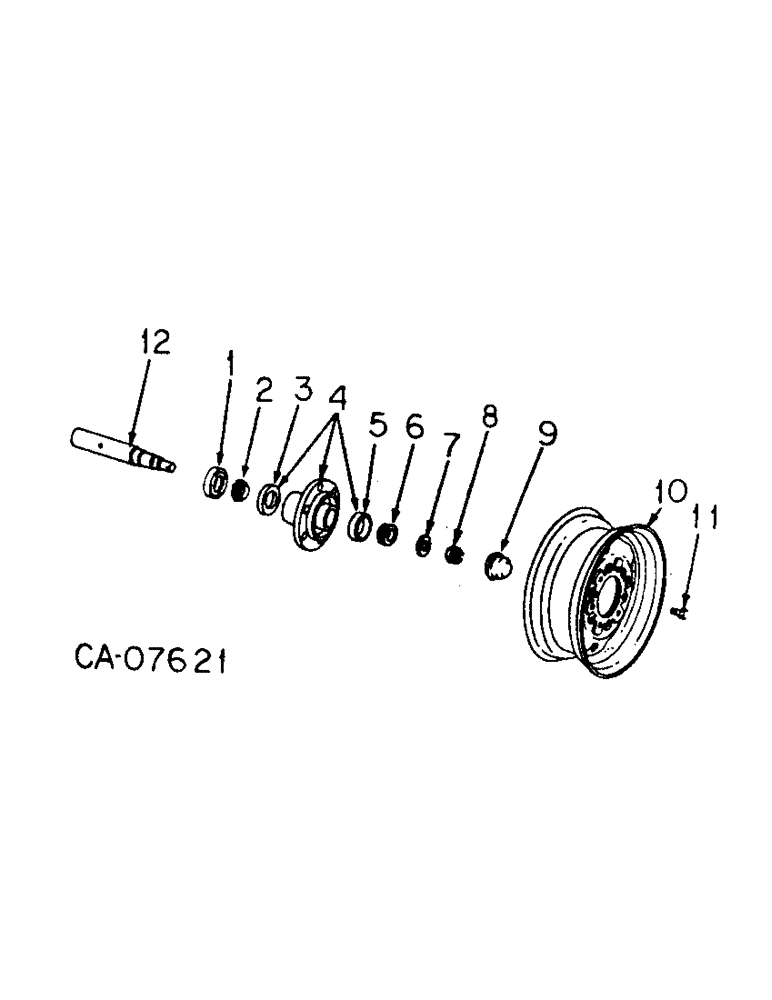

Запчасти Case IH 415 (B-08) - WHEEL AND HUB, UNITS F, G AND H

1

382868C91

PACKING RING

SEAL, oil, for use w/1256696C91

4шт.

1

491715R91

OIL SEAL

oil, for use w/1256697C91

4шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, rear cone

4шт.

3

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Rear

4шт.

4

1256696C91

HUB

W/BRG CUPS, 6 bolt, units F and G, optional w/1256697C91

4шт.

4

1256697C91

HUB

W/BRG CUPS, 6 bolt, units F and G, optional w/1256696C91

4шт.

4

1256698C91

HUB

W/BRG CUPS, 8 bolt, unit H

4шт.

5

619387R1

BEARING CUP

BEARING, front cup

4шт.

6

G15215

ROLLER BEARING

BEARING, front cone

4шт.

7

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

4шт.

8

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

4шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

4шт.

9

1256578C1

CAP

has 2.567 OD flange

4шт.

9

1256663C1

CAP

has 2.725 OD flange

4шт.

10

486101R2

RIM

15 x 8, 6 bolt

4шт.

10

80066C1

RIM

15 x 8, 8 bolt

4шт.

11

393363R1

BOLT,Hex, 9/16" - 18 x 1.22"

hub, 24 for units F and G, 32 for unit H

1шт.

12

1256577C1

SPINDLE

4шт.
