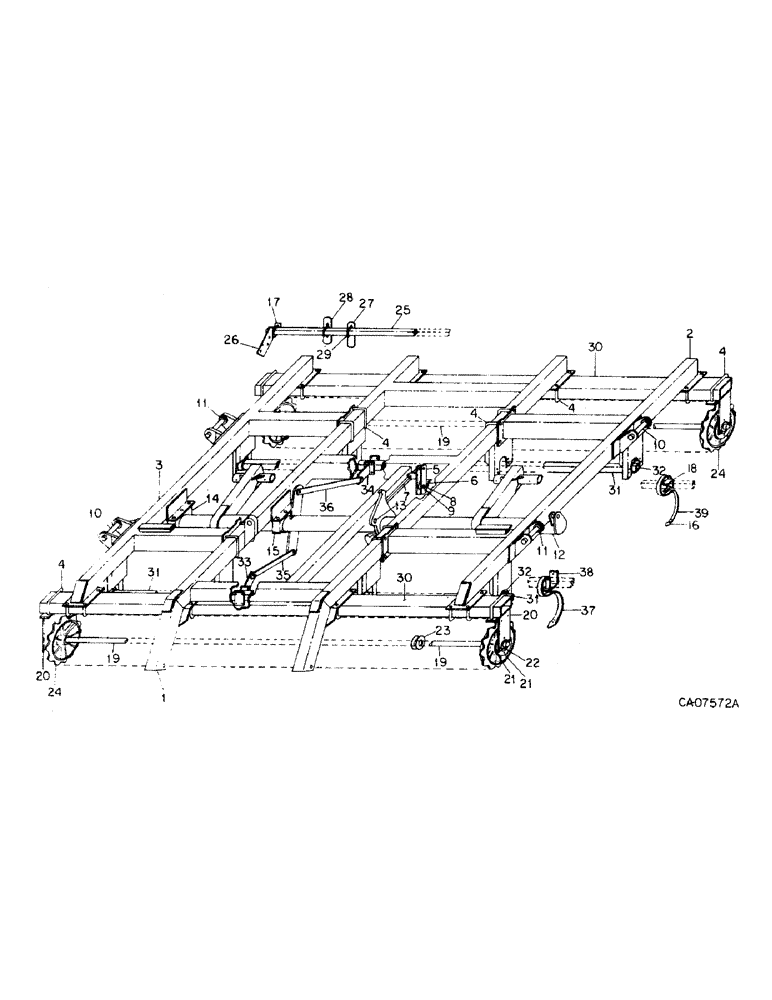

Запчасти Case IH 415 (B-07) - FRAME AND TINES, UNITS F, G AND H

1

1256565C91

FRAME

W/PRODUCT GRAPHIC, 1-256303C1, units F and G

1шт.

1

1256566C91

FRAME

W/PRODUCT GRAPHIC, 1-256303C1, unit H

1шт.

2

1256554C91

FRAME

aux LH w/product graphics, 1-256304C1 and 1-256636C1, units F and G

1шт.

2

1256561C91

FRAME

aux LH w/product graphics, 1-256304C1 and 1-256636C1, unit H

1шт.

3

1256555C91

FRAME

aux RH w/product graphics, 1-256304C1 and 1-256636C1, units F and G

1шт.

3

1256562C91

FRAME

aux RH w/product graphics, 1-256304C1 and 1-256636C1, unit H

1шт.

4

1256573C1

U-BOLT,7/8" - 9 x 6.094" W x 5.625" L, Gr 2

38шт.

131047

WASHER,7/8"

7/8"

76шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

76шт.

5

1256550C1

SUPPORT

transport lock

1шт.

6

1256514C1

SPRING

actuator

1шт.

7

1256527C1

ROD

actuator

1шт.

21741R1

WASHER

.406 x .875 x .105

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

8

1251136C1

PIN

pivot

1шт.

Ref #8 - (1" X 3 27/32") 07/10/96

1шт.

9

827695C1

CIRCLIP

RING, retaining

2шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

4шт.

10

1256516C1

PIN

wing pivot

4шт.

11

1256575C1

THRUST WASHER

wear

50шт.

Ref #11 - (2 3/4" O.D., 1 13/16" I.D., 1/8" thick) 07/10/96

1шт.

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

12

1256570C1

AXLE

wheel, units F and G

1шт.

12

1256560C1

AXLE

wheel, unit H

1шт.

13

1256307C1

BUSHING

tension

1шт.

14

1256576C1

BEARING

casting w/fitting

5шт.

15

56922C1

CAP

bearing

5шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

10шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

10шт.

280954

NUT,3/4"-10, G5

10шт.

16

100365C1

SHOVEL

2-1/2 in., 1 per tine

1шт.

15594R1

PLOW BOLT,#3, 3/8" - 16 x 1 5/8", Gr 2

BOLT, 3/8 x 1-5/8 pln plow type 1

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

17

1256316C1

BAR

scraper

8шт.

18

1256328C1

SUPPORT

vibra clamp, 1 per shovel

1шт.

18702R1

BOLT,Short NK, 7/16"-14 x 4", G2

7/16 x 4 crg type 1, 1 per clamp

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per clamp 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5, 1 per clamp

1шт.

19

1256633C1

AXLE

PACKAGE

1шт.

Ref #19 - 74" long X 1 13/16" 07/10/96

1шт.

20

1256579C1

BRACKET

20шт.

21

824714R91

FLANGE

TTE

40шт.

Ref #21 - Subs to 152921C1 (.149" Thick) or can use 556080R1 (.105" thick) 07/10/96

1шт.

22

224194A1

ASSEMBLY

BEARING

20шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

80шт.

120384

WASHER,1/2"

LOCK, 1/2"

80шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

80шт.

23

1256583C1

WASHER

1шт.

Ref #23 - (3 3/16" O.D., 1 27/32"I.D., 9/32" thick) 07/10/96

1шт.

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

8шт.

24

1251060C1

ROLL

ER, 17 in. notched

1шт.

24

1251061C1

ROLL

ER, 17 in. notched short hub

1шт.

24

1251058C1

ROLL

ER, 19 in. notched

1шт.

24

1251059C1

ROLL

ER, 19 in. notched short hub

1шт.

24

1256318C1

WHEEL,431.8mm OD x 134.49mm W

ROLLER, crowfoot

1шт.

25

1256584C1

TUBE,174.25" Length

SCRAPER BAR, unit F and G

1шт.

25

1256518C1

TUBE

scraper, unit H

1шт.

26

1256547C1

SUPPORT

scraper

8шт.

27

80038C1

BAR

SCRAPER

8шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

28

1251137C1

HALF BLADE

SCRAPER, 43 for unit F, 49 for unit G, 55 for unit H

1шт.

29

1256314C1

U-BOLT,3/8" - 16 x 1.563" W x 2.25" L, Gr 2

51 for unit F, 57 for unit G, 55 for unit H

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

102шт.

30

1256522C1

TUBE,170" Length

gang, units F and G

2шт.

30

1256588C1

TUBE

gang, unit H

2шт.

31

1256523C1

TUBE,147" Length

main frame tooth, units F and G

2шт.

31

1256532C1

TUBE,175" Length

main frame tooth, unit H

2шт.

32

1251072C1

RETAINER

tooth bar

16шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

32шт.

120384

WASHER,1/2"

LOCK, 1/2"

32шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

32шт.

33

1256543C1

BRACKET

front link

1шт.

34

1256544C1

BRACKET

rear link

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

35

1256538C1

LINK

front

1шт.

36

1256580C1

LINK

rear

1шт.

37

1256313C1

FINGER

looped "C" tine, 39 for unit F, 49 for unit G, 57 for unit H

1шт.

38

1256325C1

ANGLE

looped "C" clamp, 1 per tine

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2 x 3-3/4 type 5, 2 per clamp

78шт.

120384

WASHER,1/2"

LOCK, , 2 per clamp 1/2"

78шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per clamp 1/2"-13, G5

78шт.

39

1256327C1

TINE

FINGER, vibra tine, 39 for unit F, 49 for unit G, 57 for unit H

1шт.
