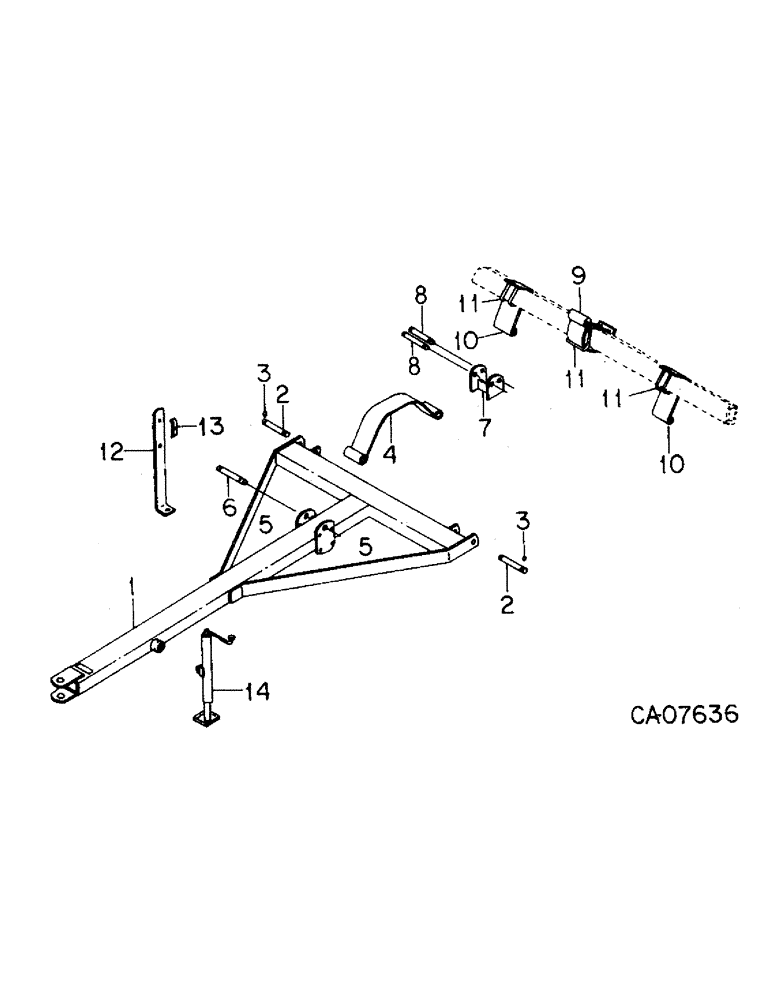

Запчасти Case IH 415 (B-05) - HITCH AND TRANSPORT LEVELER, UNITS A THRU E

1

1251133C91

TOW BAR

TONGUE W/PRODUCT GRAPHIC, 1-256301C1, units B thru D

1шт.

1

1251134C91

TOW BAR

TONGUE W/PRODUCT GRAPHIC, 1-256301C1, unit A and E

1шт.

2

1251081C1

PIN

pivot

2шт.

3

827695C1

CIRCLIP

RING, retaining

2шт.

4

1251068C1

SPRING

leveler

1шт.

5

1251069C1

BAR

leveler, slide

2шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8 x 7 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

6

1251067C1

PIN

lower leveler

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .106

8шт.

7

1251132C1

PLATE

shear

1шт.

8

1251074C1

PIN

pivot

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

9

1251066C1

SUPPORT

trans level mtg

1шт.

10

1251070C1

SUPPORT

pull strap

2шт.

11

1251094C1

U-BOLT,3/4" - 10 x 2 1/2" W x 5 1/16" L, UNC

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

12

1251073C1

SUPPORT

hose

1шт.

13

1251080C1

SUPPORT

hose-holder

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

14

1256315C1

JACK

1шт.
