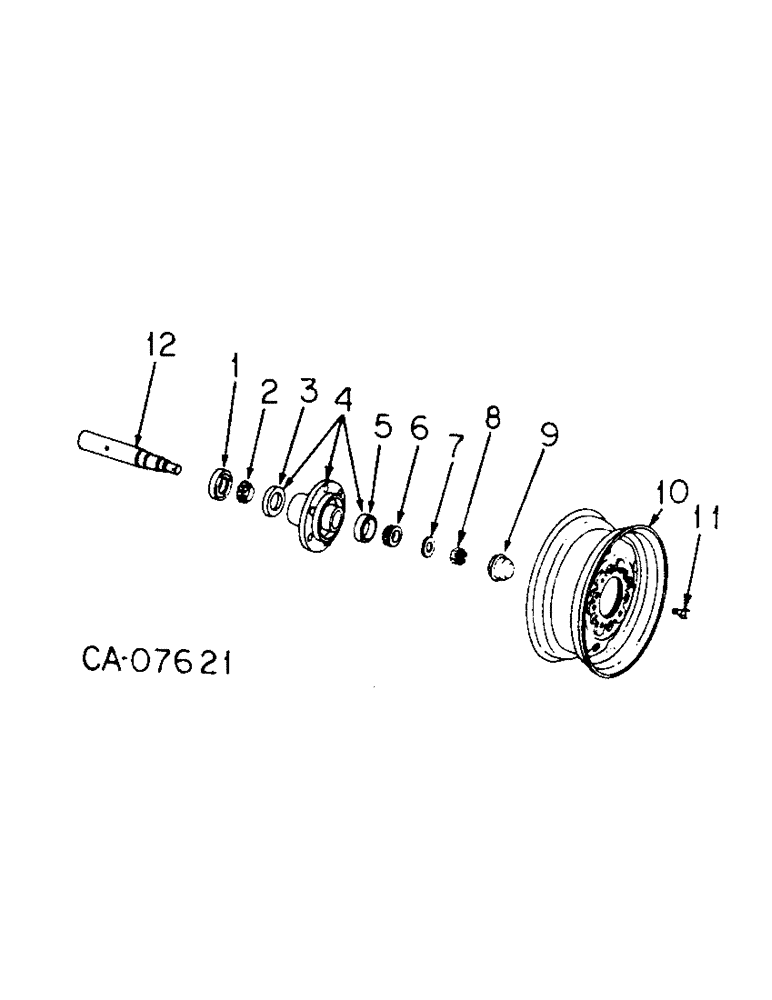

Запчасти Case IH 415 (B-04) - WHEEL AND HUB, UNITS A THRU E

1

55865C1

OIL SEAL

oil, 2 for unit A, 4 for units B thru E

1шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, rear cone, 2 for unit A, 4 for units B thru E

1шт.

3

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Rear, 2 for unit A, 4 for units B thru E

1шт.

4

1256695C91

HUB

W/BRG CUPS, 6 bolt, 2 for unit A, 4 for units B thru E

1шт.

5

651817R1

BEARING CUP

BEARING, front, cup, 2 for unit A, 4 for units B thru E, 2 for unit A, 4 for units B thru E

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, front cone, 2 for unit A, 4 for units B and E

1шт.

7

189014C1

WASHER

.844 x 1.250 x .054, 1 per spindle

1шт.

8

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln slt type 5, 1 per spindle

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , 1 per spindle 1/8" x 1 3/4"

1шт.

9

1251065C1

CAP

2 for unit A, 4 for units B thru E

1шт.

10

614424R91

WHEEL ASSY.

WHEEL, 15 in., 2 for unit A, 4 for units B thru E

1шт.

10

486101R2

RIM

WHEEL RIM, 15 x 8 lb, units B thru E

4шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 wheel, 6 per spindle

1шт.

12

1251064C1

SPINDLE

2 for unit A, 4 for units B thru E

1шт.
