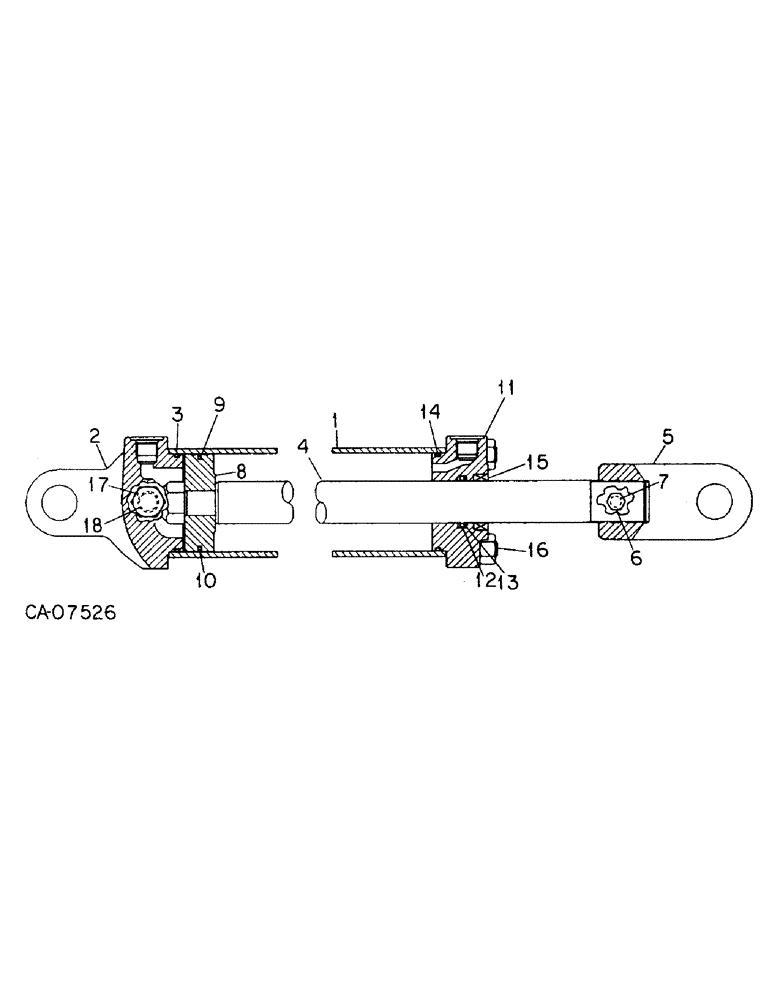

Запчасти Case IH 415 (B-38) - HYDRAULIC CYLINDER 4 X 24, IH

1260725C91

CYLINDER

ASSY, hydraulic 4 x 24

1шт.

1

1260830C1

SLEEVE, hydraulic cylinder

1шт.

2

145226C1

HEAD

hydraulic cylinder rear

1шт.

3

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 class 6

1шт.

4

1260828C1

ROD

hydraulic cylinder piston

1шт.

5

145233C1

CLEVIS,1/4" - 12

hydraulic cyl piston rod

1шт.

6

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, hyd cyl piston rod clevis

1шт.

8

1260829C1

PISTON

hyd cyl

1шт.

9

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

3-1/2 x 3-11/16 class 5

1шт.

10

381110R1

RING

piston seal square

1шт.

11

1260843C1

HEAD

hydraulic cylinder front

1шт.

12

119203C1

SEAL

SEAL, piston rod

1шт.

13

(Not used)

1шт.

14

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 class 6

1шт.

15

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEAL, hyd cyl piston rod wiper

1шт.

16

1260831C1

TIE-ROD,5/8" - 11 x 736mm

BOLT, hydraulic cylinder tie

4шт.

102639

NUT,5/8"-11, G5

4шт.

17

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

79943C91

SEAL KIT

hyd cylinder o-ring & seal

1шт.
