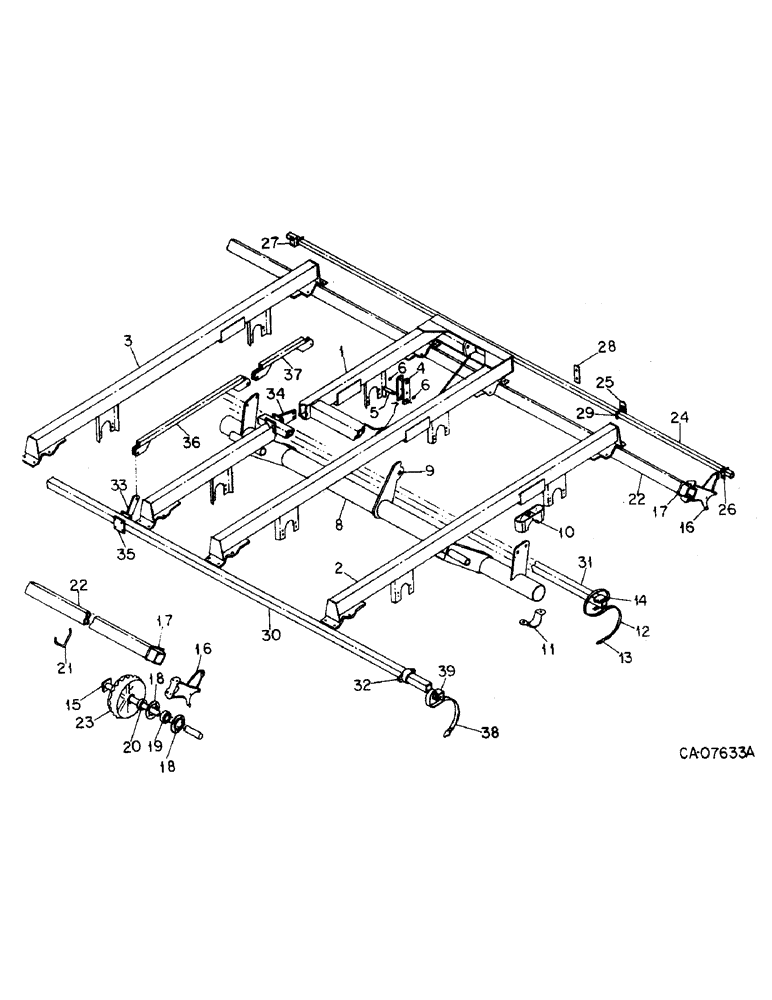

Запчасти Case IH 415 (B-02) - FRAME AND TINES, UNITS A THRU E

1

1251101C91

FRAME

W/PRODUCT GRAPHICS, 1-256303C1 and 1-256300C1, units B thru E

1шт.

1

1251100C91

FRAME

W/PRODUCT GRAPHICS, 1-256303C1 and 1-256300C1, unit A

1шт.

2

1251104C1

OUTRIGGER

left

1шт.

3

1251107C1

OUTRIGGER

right, unit B thru E

1шт.

4

1251124C1

LATCH

transport lock

1шт.

5

1251136C1

PIN

pivot

1шт.

Ref #5 - (1" X 3 27/32") 07/10/96

1шт.

6

827695C1

CIRCLIP

RING, retaining

4шт.

131019

SWEEP

1.062 x 2.000 x .108

4шт.

7

1251135C1

ROD

control

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 ca p/t lock type 5

1шт.

8

1251103C1

AXLE

transport, units B thru E

1шт.

8

1251102C1

AXLE

transport, unit A

1шт.

9

1256307C1

BUSHING

tension

1шт.

10

1251057C1

SUPPORT

AXLE, bearing, 3 for unit A, 4 for units B thru E

1шт.

11

56922C1

CAP

CLAMP, wheel bearing, 3 for unit A, 4 for units B thru E

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2 type 5, 2 per clamp

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 per clamp

1шт.

280954

NUT,3/4"-10, G5

2 per clamp 3/4"-10, G5

1шт.

12

1256327C1

TINE

FINGER, vibra-tines, 19 for unit A, 23 for unit B, 25 for unit C, 27 for unit D, 29 for unit E

1шт.

13

100365C1

SHOVEL

2-1/2 in., 1 per tine

1шт.

15594R1

PLOW BOLT,#3, 3/8" - 16 x 1 5/8", Gr 2

BOLT, 3/8 x 1-5/8 pln plow type 1, 1 per shovel

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051, 1 per shovel

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per shovel 3/8"-16, G5

1шт.

14

1256328C1

SUPPORT

vibra-clamp, 1 per shovel

1шт.

18702R1

BOLT,Short NK, 7/16"-14 x 4", G2

7/16 x 4 crg type 1, 1 per clamp

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per clamp 7/16"

1шт.

271501

SOCKET

NUT, 7/16 type 5, 1 per clamp

1шт.

15

1256633C1

AXLE

PACKAGE

1шт.

Ref #15 - 74" X 1 13/16" 07/10/96

1шт.

16

1251063C1

HANGER

roller, 8 for units A and B, 12 for units C thru E

1шт.

17

1251085C1

U-BOLT,3/4" - 10 x 4.063" W, 5.75" L

8 for units A and B, 12 for units C thru E

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 16 for units A and B, 24 for units C thru E

1шт.

280954

NUT,3/4"-10, G5

16 for units A and B, 24 for units C thru E 3/4"-10, G5

1шт.

18

824714R91

FLANGE

TTE, 16 for units A and B, 24 for units C thru E

1шт.

Ref #18 - Subs to 152921C1 .149" thick, or use 556080R1 .105" thick 07/10/96

1шт.

19

1251062C91

ROLLER BEARING,1.7717" ID x 3.3465" OD x 1.1875"

BEARING, 8 for unit A and B, 12 for units C thru E

1шт.

Ref #19 - (1.7717" I.D.) 07/10/96

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5, 4 per bearing

1шт.

120384

WASHER,1/2"

LOCK, , 4 per bearing 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 4 per bearing 1/2"-13, G5

1шт.

20

1256324C1

SPACER

11/16 wide, 6 for units A and B, 10 for units C thru E

1шт.

Ref #20 - (2 15/16" O.D. 1 7/8" I.D.) 07/10/96

1шт.

21

1251071C1

U-BOLT,5/8" - 11 x 5.503" W x 4.875" L

12 for units A and B, 16 for units C thru E

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 24 for Units A and B, 32 for Units C thru E 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, 24 for units A and B, 32 for units C thru E

1шт.

22

1251075C1

TUBE,127" Length

10 ft gang

2шт.

22

1251076C1

TUBE,158" Length

12 ft gang

2шт.

22

1256344C1

TUBE,165" Length

13 ft gang

2шт.

22

1256345C1

TUBE

14 ft gang

2шт.

22

1256346C1

TUBE

15 ft gang

2шт.

23

1251060C1

ROLL

ER, 17 in. notched

1шт.

23

1251061C1

ROLL

ER, 17 in. notched, short hub

1шт.

23

1251058C1

ROLL

ER, 19 in. notched

1шт.

23

1251059C1

ROLL

ER, 19 in. notched, short hub

1шт.

23

1256318C1

WHEEL,431.8mm OD x 134.49mm W

crowfoot, roller

1шт.

24

1251138C1

TUBE,124.25" Length

10 ft scraper, bar

1шт.

24

1251139C1

TUBE,149.375" Length

12 ft scraper, bar

1шт.

24

1256354C1

TUBE,162.5" Length

13 ft scraper, bar

1шт.

24

1256355C1

TUBE

14 ft scraper, bar

1шт.

24

1256356C1

TUBE

15 ft scraper, bar

1шт.

25

1251137C1

HALF BLADE

SCRAPER

1шт.

26

1256311C1

SUPPORT

scraper LH, mount

2шт.

27

1256312C1

SUPPORT

scraper RH, mount

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

6шт.

28

1256316C1

BAR

scraper, tab, 1 for units A and B, 2 for units C and D, 3 for unit E, rear

1шт.

28

1256358C1

BAR

scraper, tab, 6 for unit A, 8 for units B and E, front

1шт.

29

1256314C1

U-BOLT,3/8" - 16 x 1.563" W x 2.25" L, Gr 2

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

1251086C1

TUBE,101" Length

front tooth, bar, unit A

1шт.

30

1251088C1

TUBE

front tooth, bar, unit B

1шт.

30

1256348C1

TUBE,150" Length

front tooth, bar, unit C and D

1шт.

30

1256349C1

TUBE,174" Length

front tooth, bar, unit E

1шт.

31

1251087C1

TUBE

rear tooth, bar, unit A

1шт.

31

1251091C1

TUBE,138" Length

rear tooth, bar, unit B and C

1шт.

31

1256350C1

TUBE,162" Length

rear tooth, bar, unit D and E

1шт.

32

1251072C1

RETAINER

tooth bar, 6 for unit A, 8 for units B thru E

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5, 12 for unit A, 16 for units B thru E

1шт.

120384

WASHER,1/2"

LOCK, , 12 for unit A, 16 for units B thru E 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 12 for unit A; 16 for units B thru E 1/2"-13, G5

1шт.

33

1251098C1

SUPPORT

front, lever, 1 for unit A, 2 for units B thru E

1шт.

34

1251099C1

SUPPORT

rear, lever, 1 for unit A, 2 for unit B thru E

1шт.

35

1251084C1

BAR

link, base, 2 for unit A, 4 for units B thru E

1шт.

1263329C91

BOLT, 1/2 x 4-1/2 type 5, 4 per bar

1шт.

120384

WASHER,1/2"

LOCK, , 4 per bar 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 4 per bar 1/2"-13, G5

1шт.

36

1251096C1

LINK

front, 1 for unit A, 2 for units B thru E

1шт.

37

1251097C1

LINK

rear, 1 for unit A, 2 for units B thru E

1шт.

22928R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x 2 hd, type 5, 4 for unit A, 8 for unit B thru E

1шт.

38

1256313C1

FINGER

looper "C", tine, 19 for unit A, 23 for unit B, 25 for unit C, 27 for unit D, 29 for unit E

1шт.

39

1256325C1

ANGLE

looper "C", clamp, 1 per tine

1шт.

120384

WASHER,1/2"

LOCK, , 2 per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per clamp 1/2"-13, G5

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2 x 3-3/4 type 5, 2 per clamp

1шт.
