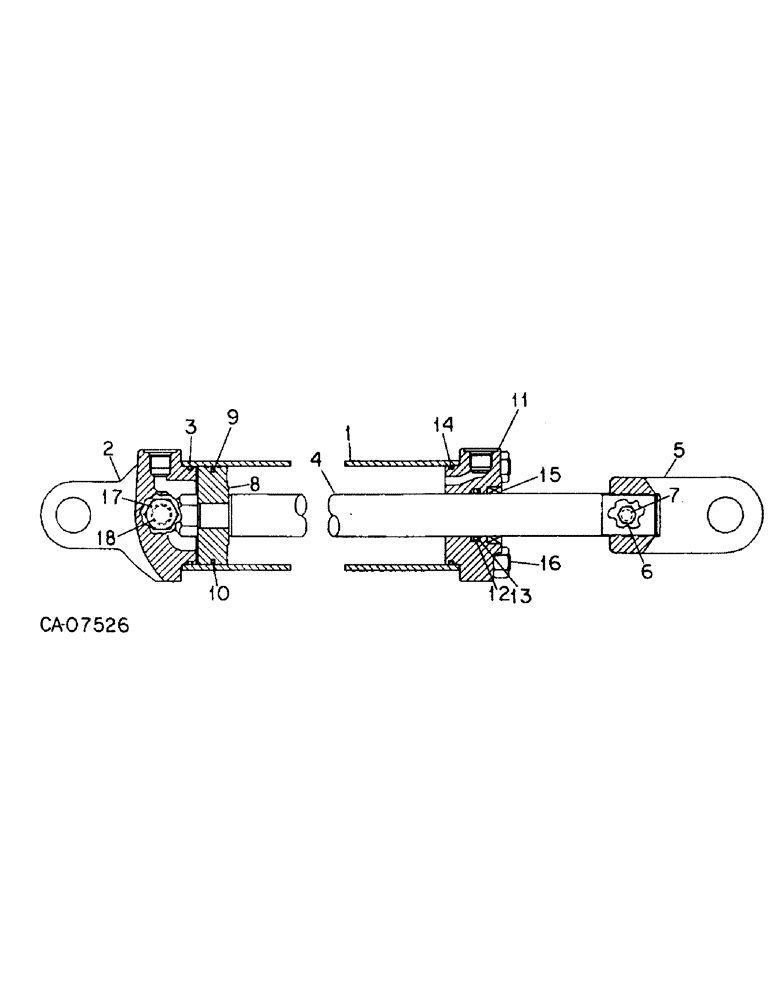

Запчасти Case IH 415 (B-37) - HYDRAULIC CYLINDER 3-1/2 X 24, IH

1260724C91

CYLINDER

ASSY, hydraulic

1шт.

1

1260841C1

SLEEVE

hydraulic cylinder

1шт.

2

142453C2

HEAD

hydraulic cylinder rear

1шт.

3

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 class 6

1шт.

4

1260840C1

ROD

hydraulic cylinder piston

1шт.

5

145233C1

CLEVIS,1/4" - 12

hydraulic cylinder piston rod

1шт.

6

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145483C1

SPRING

PAD, hyd cyl piston rod clevis

1шт.

8

1260842C1

PISTON

hydraulic cylinder

1шт.

9

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 class 5

1шт.

10

381086R1

RING

piston seal square

1шт.

11

1260838C1

HEAD

hydraulic cylinder front

1шт.

12

119214C1

SEAL

hyd cyl piston rod

1шт.

13

(Not used)

1шт.

14

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 class 6

1шт.

15

536308R91

WIPER SEAL

hyd cyl piston rod wiper

1шт.

16

1260831C1

TIE-ROD,5/8" - 11 x 736mm

BOLT, hyd cyl tie

4шт.

102639

NUT,5/8"-11, G5

4шт.

17

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

79942C91

KIT

hyd cyl o-ring & seal

1шт.
