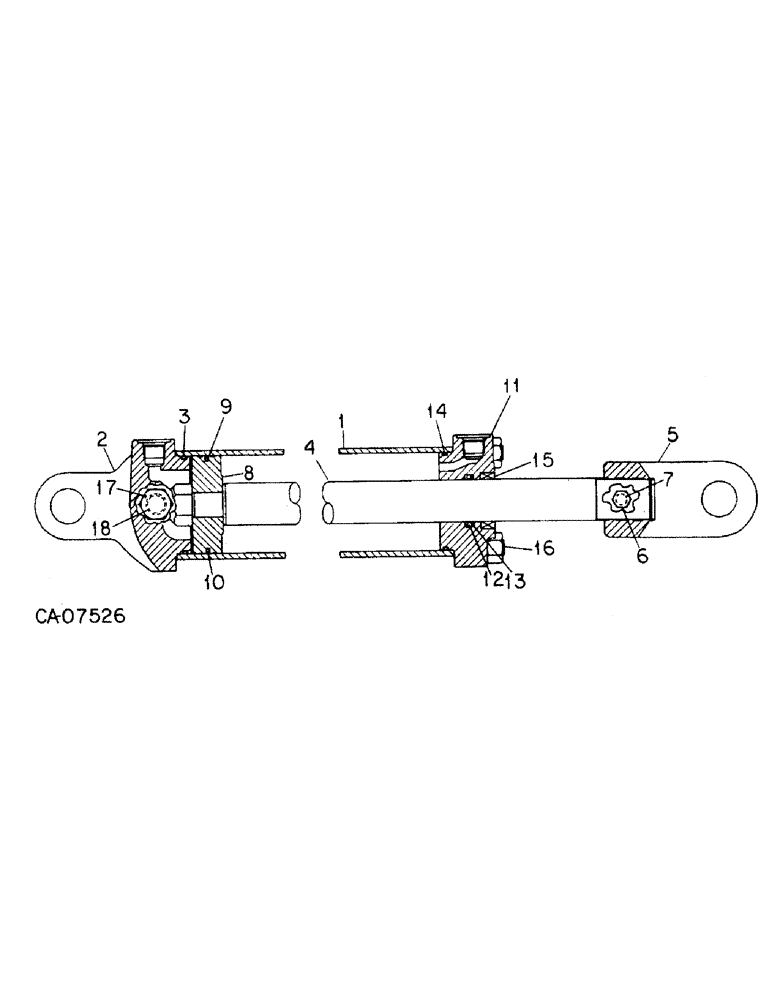

Запчасти Case IH 415 (B-31) - HYDRAULIC CYLINDER 4 X 16, IH

145213C92

CYLINDER

ASSY, hydraulic

1шт.

1

145245C1

SLEEVE

hyd cyl

1шт.

2

145244C1

HEAD

hyd cyl rear

1шт.

3

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 class 6

1шт.

4

1263346C1

ROD ASSY.

ROD, hyd cyl piston

1шт.

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC p/t lock type 8

1шт.

5

145240C1

CLEVIS,1 -1/2" - 12

hyd cyl piston rod

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, hyd cyl piston rod clevis

1шт.

8

149930C1

PISTON

hyd cyl

1шт.

9

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

3-1/2 x 3-11-16 class 5

1шт.

10

381110R1

RING

piston seal square

1шт.

11

1261047C91

HEAD

ASSY, hyd cyl front

1шт.

12

119203C1

SEAL

SEAL, piston rod

1шт.

13

(Not used this application)

1шт.

14

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 class 6

1шт.

15

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEAL, hyd cyl piston rod wiper

1шт.

16

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT, hyd cyl tie rod

4шт.

102639

NUT,5/8"-11, G5

4шт.

17

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

79979C1

GASKET KIT

KIT, hyd cyl o-ring and seal

1шт.
