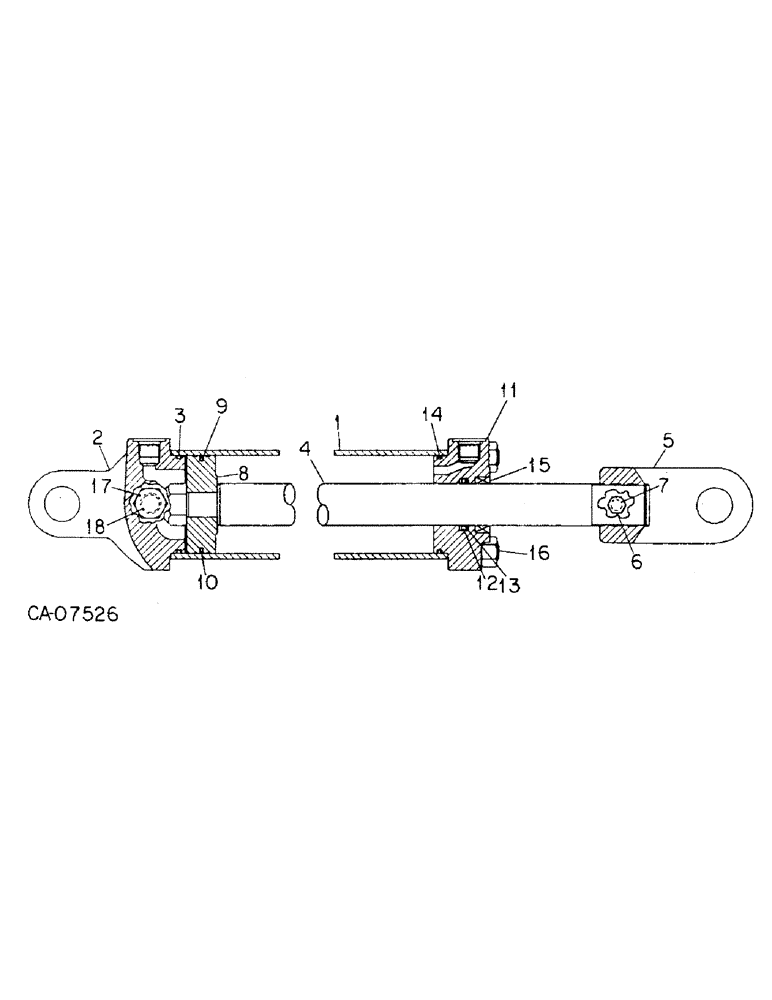

Запчасти Case IH 415 (B-22) - HYDRAULIC CYLINDER 3 X 8, IH

145210C92

CYLINDER

ASSY, hydraulic

1шт.

1

145223C1

SLEEVE

hyd cyl

1шт.

2

145222C1

HEAD

hyd cyl rear

1шт.

3

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 class 6

1шт.

4

145231C1

PISTON ROD

ROD, hyd cylinder piston

1шт.

5

145233C1

CLEVIS,1/4" - 12

hyd cylinder piston

1шт.

6

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, hyd cyl piston rod clevis

1шт.

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC p/t lock type 8

1шт.

8

145225C1

PISTON

hyd cylinder

1шт.

9

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 class 5

1шт.

10

1252020C1

RING

piston seal square

1шт.

11

1260975C91

HEAD

ASSY, hyd cylinder front

1шт.

12

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

hyd cyl rod

1шт.

13

(Not used)

1шт.

14

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 class 6

1шт.

15

546283R1

WIPER SEAL

hyd cylinder piston rod wiper

1шт.

16

145249C1

BOLT,7/16" - 14 x 324mm

hyd cylinder tie

4шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

4шт.

17

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

79976C1

KIT

KIT, hyd cyl o-ring and seal

1шт.
