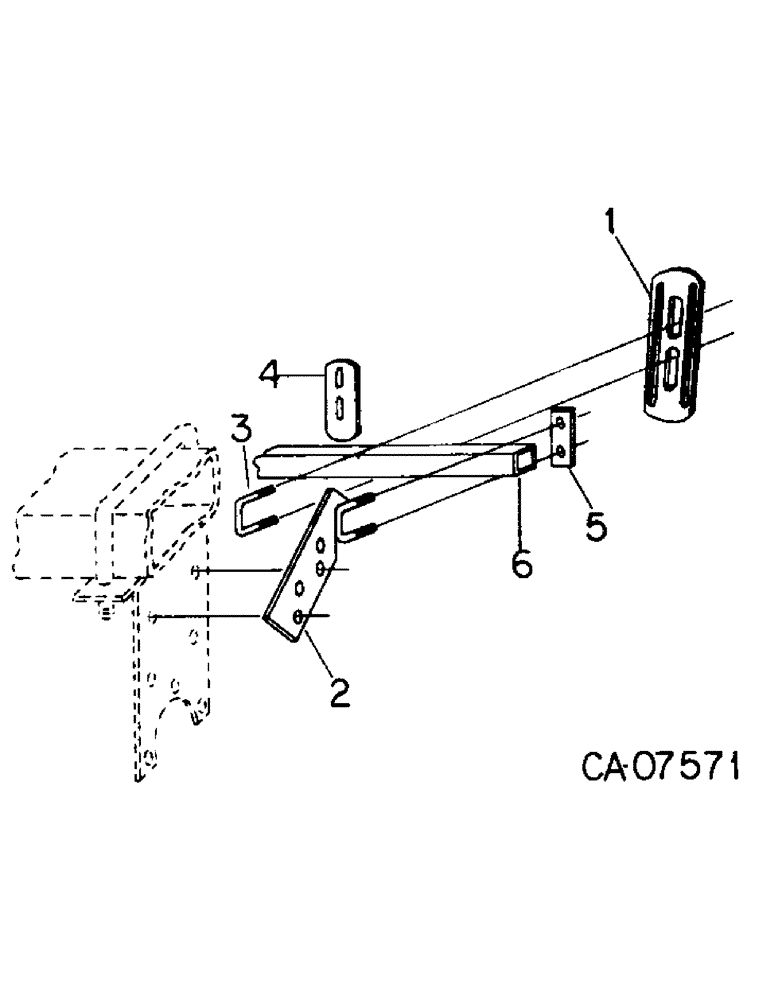

Запчасти Case IH 415 (B-21) - FRONT SCRAPER ATTACHMENT, UNITS F, G AND H

1

1251137C1

HALF BLADE

SCRAPER, 45 for unit F, 57 for unit G, 63 for unit H

45шт.

2

1256547C1

SUPPORT

scraper bar

8шт.

3

1256314C1

U-BOLT,3/8" - 16 x 1.563" W x 2.25" L, Gr 2

3/8, 53 for unit F, 65 for unit G, 71 for unit H

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

80038C1

BAR

SCRAPER, front (Replaces 80032C1)

8шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

5

1256316C1

BAR

scraper

8шт.

6

1256584C1

TUBE,174.25" Length

scraper, frame, units F and G

1шт.

6

1256518C1

TUBE

scraper, frame, unit H

1шт.

6

80041C1

TUBE,53" Length

scraper, wing, unit F

2шт.

6

1256585C1

TUBE,76" Length

scraper, wing, unit G

2шт.

6

1256519C1

TUBE

scraper, wing, unit H

2шт.
