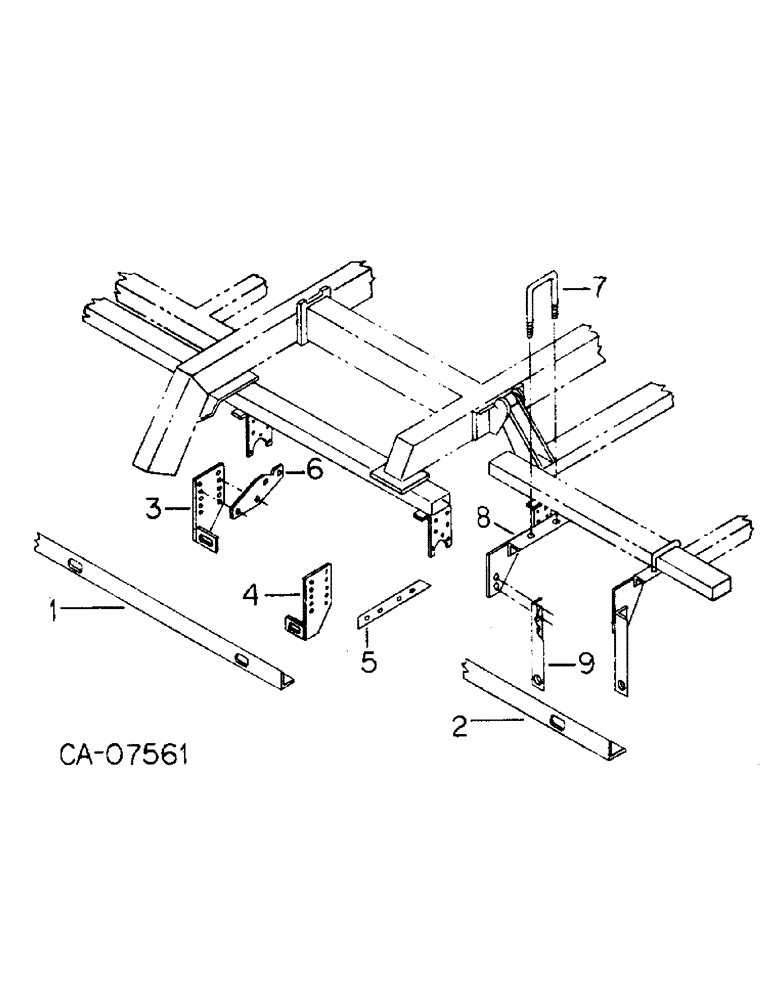

Запчасти Case IH 415 (B-20) - LEVELING BAR ATTACHMENT, UNITS F, G AND H

1

80044C1

ANGLE

leveling, unit F and G

1шт.

1

1256600C1

ANGLE

leveling, unit H

1шт.

2

80045C1

ANGLE

leveling, unit F

2шт.

2

80046C1

ANGLE

leveling, unit G

2шт.

2

1256601C1

ANGLE

leveling, unit H

2шт.

3

80047C1

BRACKET

adj LH, 2 for unit H, 3 for units F and G

1шт.

4

80048C1

BRACKET

adj RH, 2 for unit H, 3 for units F and G

1шт.

5

80049C1

ANGLE

mounting, 2 for unit H, 4 for units F and G

1шт.

6

80050C1

SUPPORT

PLATE, mounting

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5, 32 for unit H, 36 for units F and G

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock, 32 for unit H, 36 for units F and G

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5, for use w/front scraper att only

4шт.

7

1256573C1

U-BOLT,7/8" - 9 x 6.094" W x 5.625" L, Gr 2

2 for units F and G, 4 for unit H

1шт.

NLS

NO LONGER SERVICED

4 for units F and G, 8 for unit H 7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, , 4 for units F and G, 8 for unit H 7/8"-9, G5

1шт.

8

80052C1

BRACKET

mounting, 2 for units F and G, 4 for unit H

1шт.

9

80051C1

ANGLE

adj wing, 2 for units F and G, 4 for unit H

1шт.

120390

WASHER,1/2"

.562 x 1.375 x .085, 8 for units F and G, 4 for unit H

1шт.
