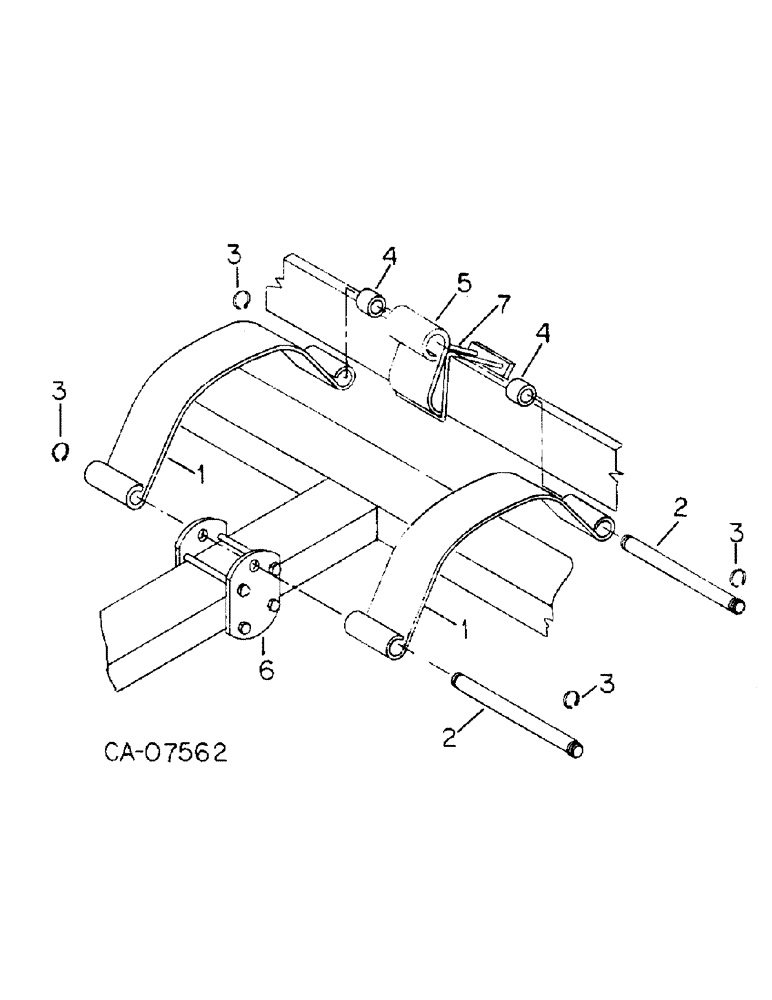

Запчасти Case IH 415 (B-18) - WEIGHT TRANSFER ATTACHMENT, UNITS A THRU E

1

1251068C1

SPRING

leveler

2шт.

131019

SWEEP

1.062 x 2.000 x .108

4шт.

2

1256321C1

ROD

anchor

2шт.

3

827695C1

CIRCLIP

RING, retaining

2шт.

4

1256322C1

BUSHING

2шт.

5

1251066C1

SUPPORT

trans. leveling

1шт.

6

1251069C1

BAR

leveler

2шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8 x 7 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

7

1251094C1

U-BOLT,3/4" - 10 x 2 1/2" W x 5 1/16" L, UNC

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.
