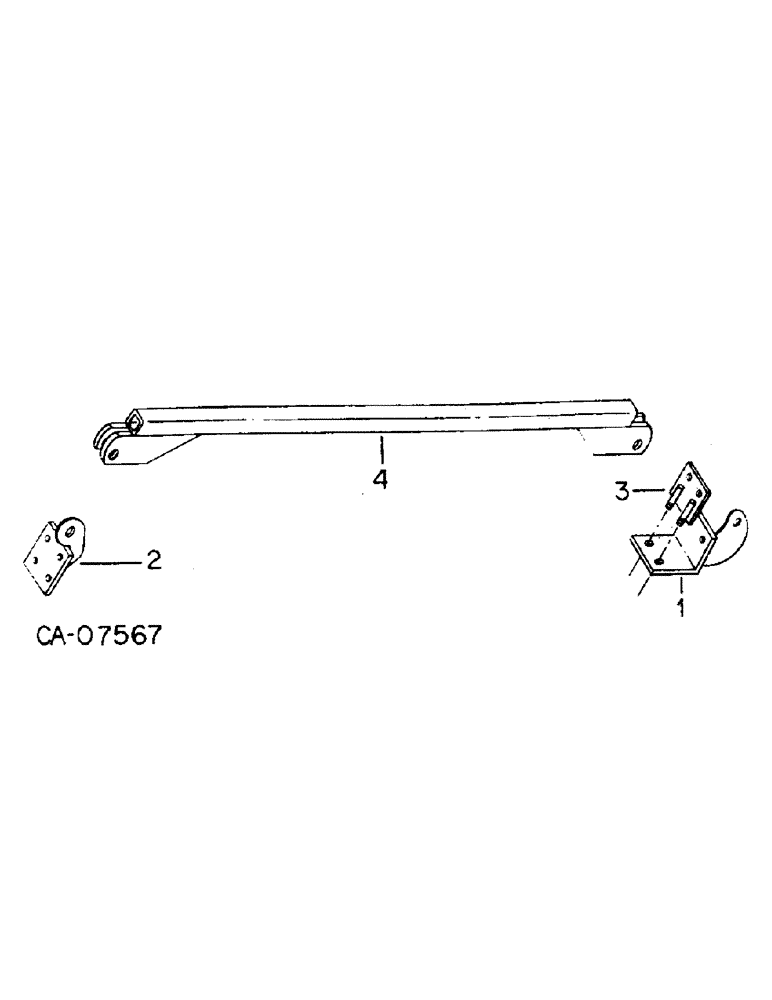

Запчасти Case IH 415 (B-17) - HYDRAULIC TOOTH CONTROL ATTACHMENT, UNITS A THRU E

1

1256359C1

SUPPORT

actuator, tb

2шт.

2

1256360C1

SUPPORT

anchor cyl

2шт.

Ref #2 - The U-Bolt is 4 1/16" X 5 3/4" Deep) 07/10/96

1шт.

3

1256361C1

PLATE

pressure

2шт.

4

79707C1

LINK

optional

2шт.

145209C92

CYLINDER

ASSY, 2-1/2 x 8 for components see list of parts under details of hyd cyl

1шт.

486946R1

HOSE

.230 in.

1шт.

145254C1

COLLAR ASSY.

COLLAR, double stop

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER, o-ring, of attachment

1шт.
