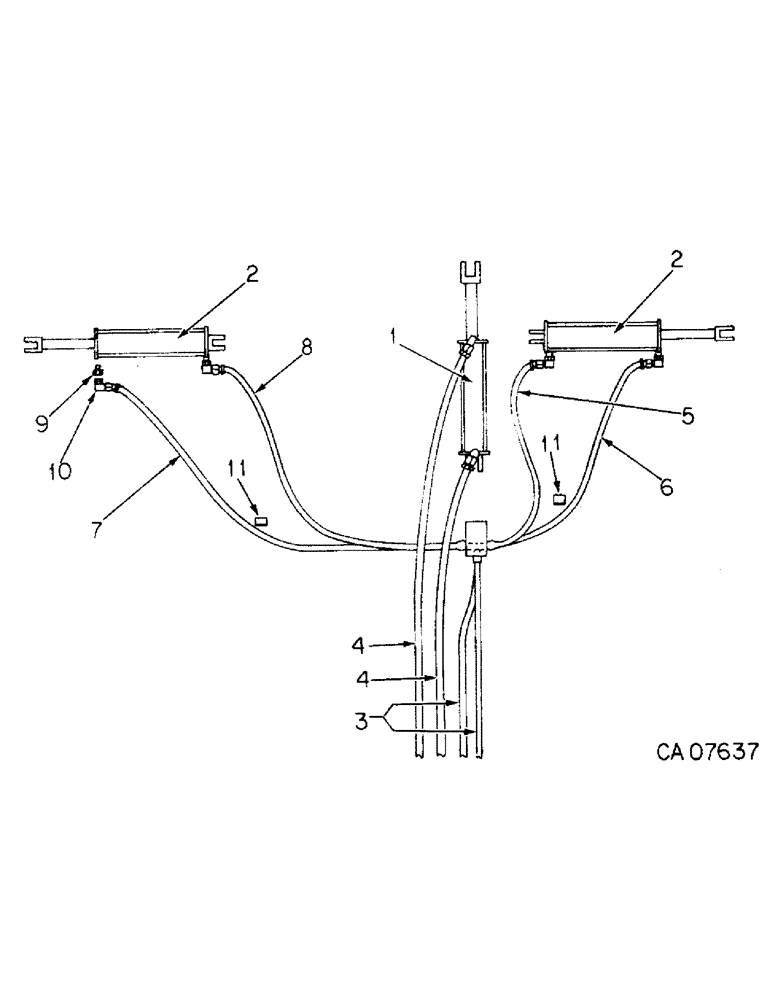

Запчасти Case IH 415 (B-14) - HYDRAULIC EQUIPMENT, UNITS F AND G

1

1260726C91

CYLINDER

ASSY, 3-1/2 x 16, for components see list of parts under details of hyd cyl

1шт.

2

1260724C91

CYLINDER

ASSY, 3-1/2 x 24, for components see list of parts under details of hyd cyl

2шт.

2

1260725C91

CYLINDER

ASSY, 4 x 24, unit G w/19 in. roller wheels on wings, for components see list of parts under details of hyd cyl

2шт.

3

1256581C1

HYDRAULIC HOSE

HOSE, .143 in.

2шт.

4

1256582C1

HYDRAULIC HOSE

HOSE, .173 in.

2шт.

5

1256606C1

HYDRAULIC HOSE

HOSE, 48 in.

1шт.

6

1256607C1

HYDRAULIC HOSE

HOSE, 55 in.

1шт.

7

1256609C1

HYDRAULIC HOSE

HOSE, 85 in.

1шт.

8

1256608C1

HYDRAULIC HOSE

HOSE, 81 in.

1шт.

9

80033C1

ADAPTER

REDUCER, hyd cyl

6шт.

10

1256517C1

ELBOW

90D hyd cyl

4шт.

11

1256351C1

CLAMP

hose

2шт.
