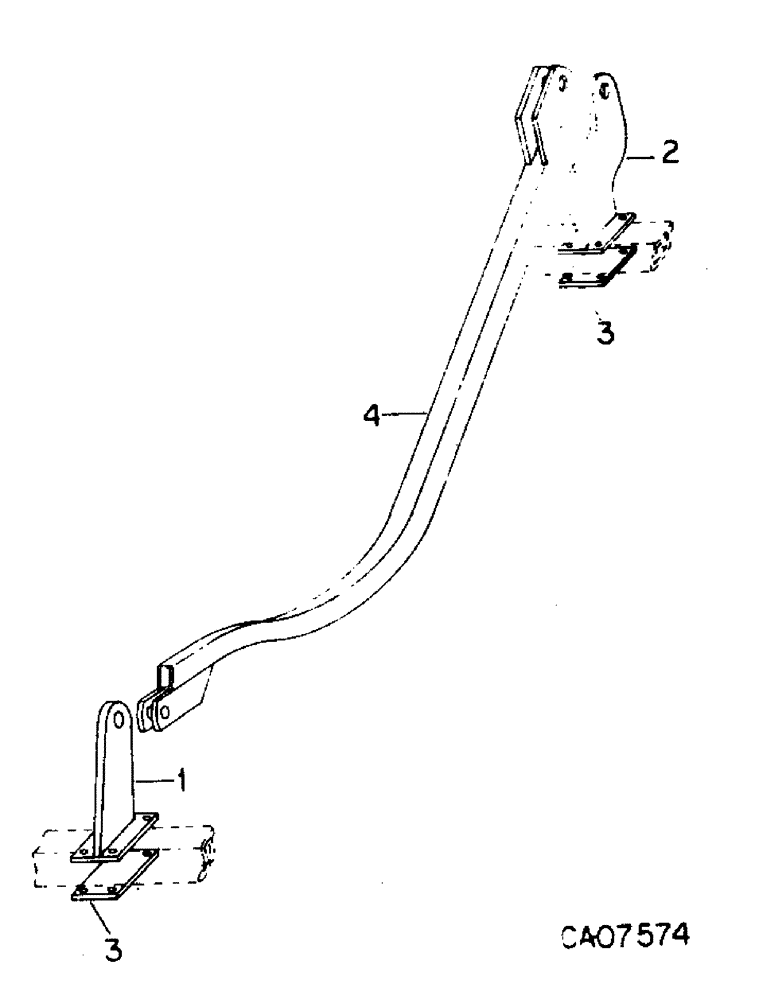

Запчасти Case IH 415 (B-13) - SPRING TOOTH BAR, UNIT H

1

1256552C1

LEVER

front link

1шт.

2

1256551C1

LEVER

rear link

1шт.

3

1256531C1

BAR

link bracket

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

1256591C1

LINK

tooth bar

1шт.

21673R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2.500 HD type 5

2шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.
