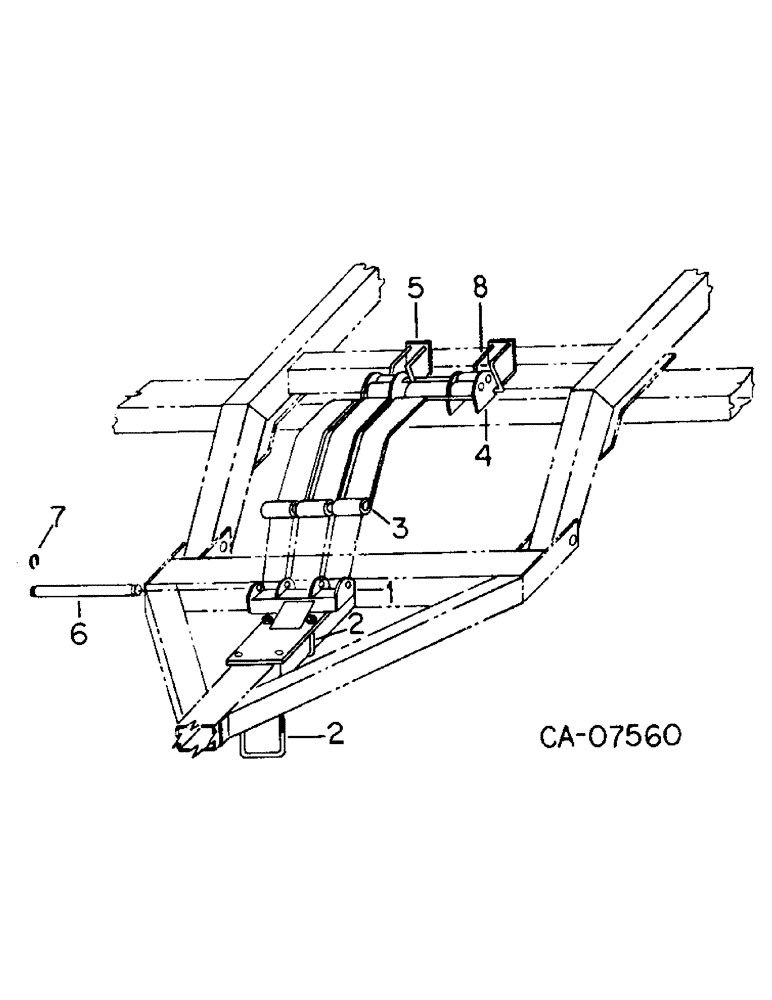

Запчасти Case IH 415 (B-12) - TRANSPORT LEVELER, UNITS F, G AND H

1

1256574C1

SUPPORT

mount

1шт.

2

1256573C1

U-BOLT,7/8" - 9 x 6.094" W x 5.625" L, Gr 2

2шт.

131047

WASHER,7/8"

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

1251068C1

SPRING

leveler

3шт.

4

1251132C1

PLATE

shear

2шт.

5

1251066C1

SUPPORT

transfer mounting

2шт.

6

1256321C1

ROD

3шт.

7

827695C1

CIRCLIP

RING, retaining

6шт.

8

1251094C1

U-BOLT,3/4" - 10 x 2 1/2" W x 5 1/16" L, UNC

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

6шт.
