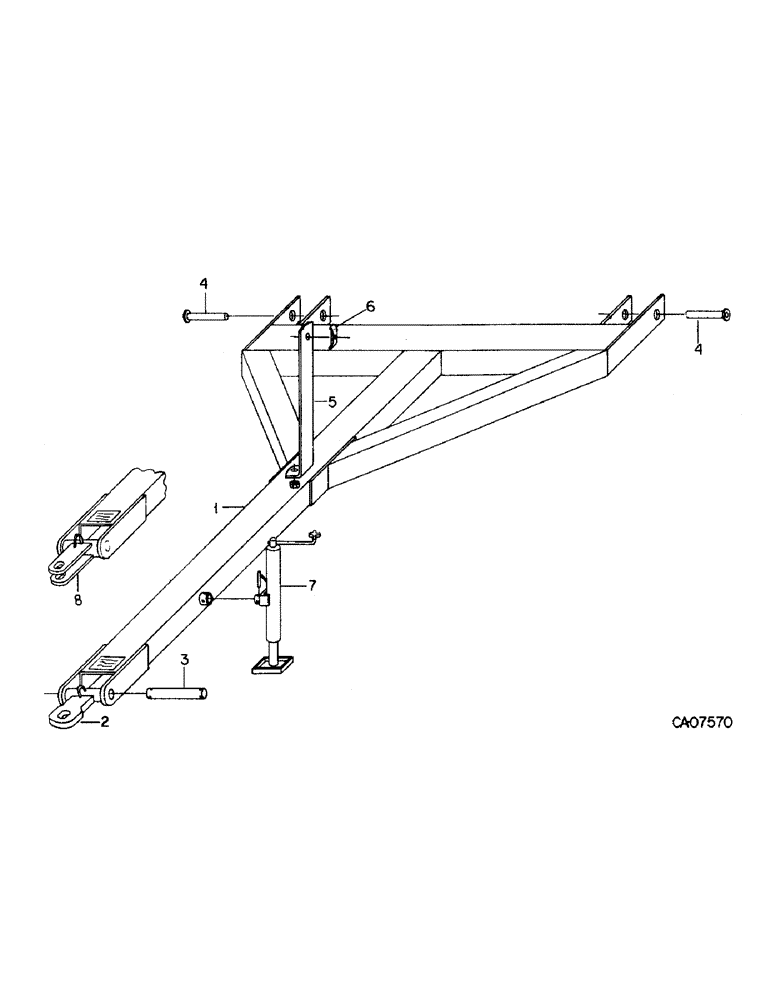

Запчасти Case IH 415 (B-11) - HITCH, UNITS F, G AND H

1

1256553C91

TOW BAR

TONGUE w/product graphic, 1256301C1

1шт.

2

1256571C1

TRAILER HITCH

HITCH

1шт.

3

1256526C1

PIN

hitch

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

2шт.

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

4шт.

4

1256534C1

PIN

tongue

2шт.

5

1256548C1

SUPPORT

hose

1шт.

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

3/4 x 1 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

6

1256533C1

CLAMP

hose

1шт.

180048

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1/4 x 2-1/2 type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

7

1256315C1

JACK

tongue

1шт.

8

1256572C1

TRAILER HITCH

CLEVIS, hitch

1шт.
