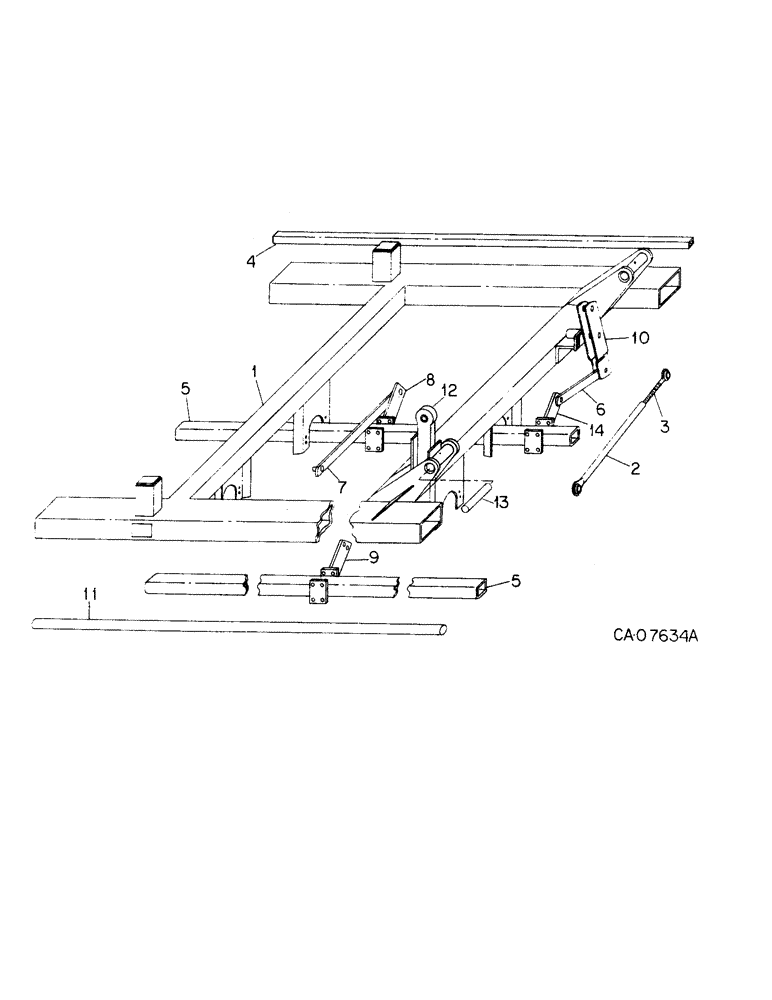

Запчасти Case IH 415 (B-09) - WING, UNITS F AND G

1

1256556C1

BAR

LH, unit F

1шт.

1

1256558C1

BAR

LH, unit G

1шт.

1

1256557C1

BAR

RH, unit F

1шт.

1

1256559C1

FRAME

BAR, RH, unit G

1шт.

2

1256549C1

LINK

sleeve

1шт.

3

1256537C1

ROD

ASSY, sleeve

1шт.

4

1256586C1

TUBE,53" Length

SCRAPER BAR, unit F

1шт.

4

1256585C1

TUBE,76" Length

SCRAPER BAR, unit G

1шт.

5

1256530C1

TUBE,49" Length

wing tooth, unit F

1шт.

5

1256524C1

TUBE,78" Length

front wing tooth, unit G

1шт.

5

1256525C1

TUBE,66" Length

rear wing tooth, unit G

1шт.

6

1256539C1

LINK

pivot

1шт.

7

1256540C1

LINK

wing

1шт.

131019

SWEEP

1.062 x 2.000 x .108

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

8

1256541C1

BRACKET

wing rear, link

1шт.

9

1256542C1

BRACKET

wing front, front

1шт.

10

1256545C1

ARM

pivot

1шт.

retaining ring for pin on ref 10 is 827695c1

1шт.

11

1256528C1

ROD

unit F, 1-3/4 in. dia.

2шт.

11

1256521C1

ROD

unit G

2шт.

12

1256691C1

ARM

2шт.

13

1256515C1

PIN

1 in. x 7 in.

1шт.

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

14

1265718C1

BRACKET

wing link

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

118280A1

BOLT

STOP BOLT, wing adjusting, see sservice bulletin NTE SB 013 95

1шт.

19-6214

NUT,1"-12, G5

for 118280A1 bolt

1шт.
