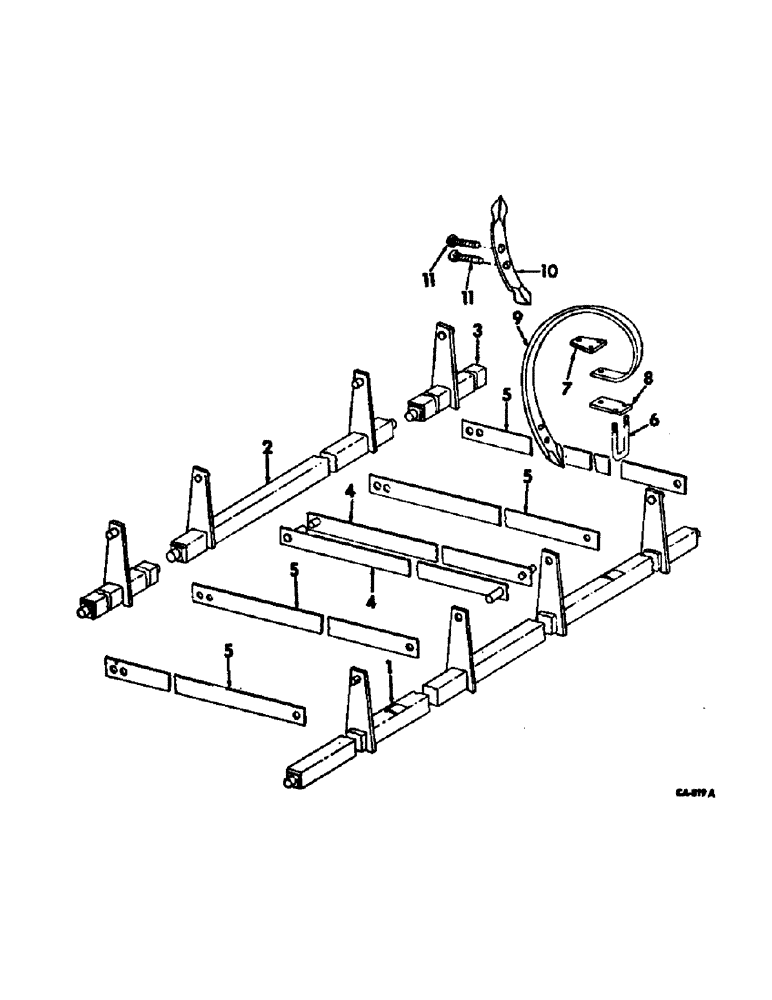

Запчасти Case IH 315 (A-11) - SPRING TEETH AND TOOTH BARS, NON-FOLDING, UNITS A, B AND C

1

540325R1

TOOTHBAR ASSY, front, for unit C

1шт.

1

540341R1

TOOTHBAR ASSY, front, for unit B

1шт.

1

540343R1

TOOTHBAR ASSY, front, for unit A

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

2

540323R1

TOOTHBAR ASSY

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

3

540318R1

TOOTHBAR ASSY, 2 for unit C

1шт.

3

540337R1

TOOTHBAR ASSY, 2 for unit B

1шт.

3

540339R1

TOOTHBAR ASSY, 2 for unit A

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

6шт.

4

540345R1

BAR

ASSY, power link

2шт.

5

540348R1

BAR

4шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

6

542227R1

BOLT,U, 1/2" - 13 x 3.7"

U-BOLT, tooth clamp, 1 per tooth

1шт.

7

542424R1

BAR

PLATE, upper clamp, 1 per tooth

1шт.

8

542229R1

PLATE

lower clamp, 1 per tooth

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 znd hex-hd cap

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock, 3 per upper clamp

1шт.

9

540336R1

TOOTH

spring, 21 for unit A, 25 for unit B, 27 for unit C

1шт.

10

547188R1

POINT

SHOVEL, reversible tooth point

1шт.

11

25548BB

BOLT,Special, 7/16" - 14 x 1 1/2"

7/16-14 x 1-1/2 special

2шт.

NLS

NO LONGER SERVICED

7/16 znd reg lock

2шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

2шт.
