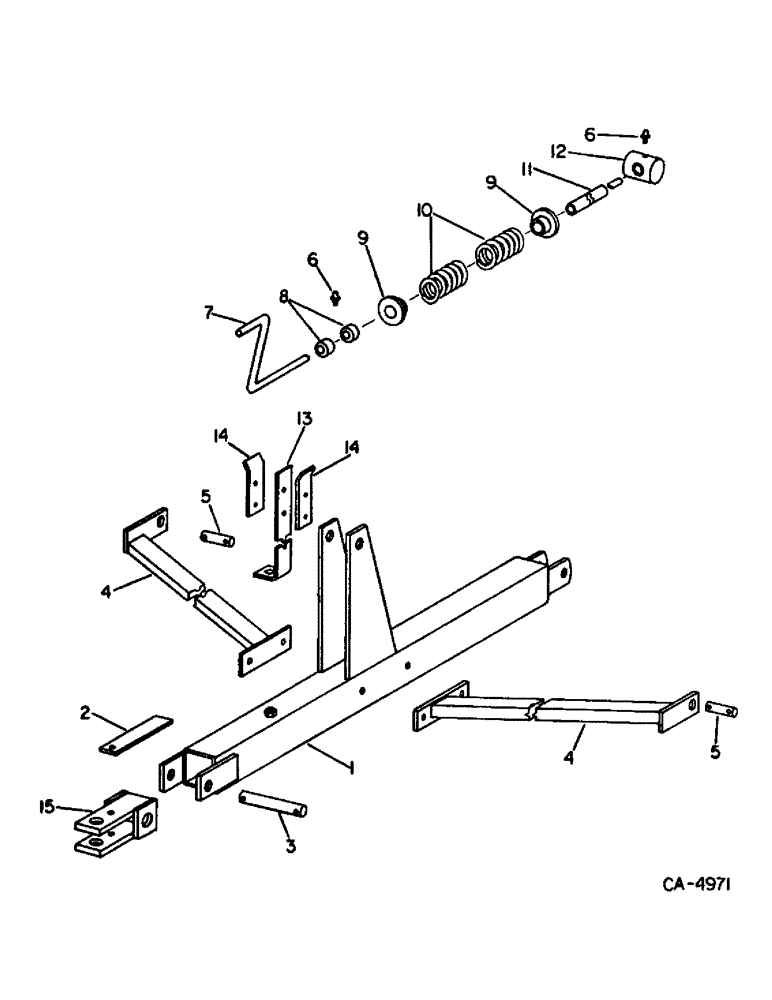

Запчасти Case IH 315 (A-09) - HITCH, FOLDING, UNITS D AND E

1

100770C1

TUBE ASSY, hitch 97.5" Length

1шт.

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

SCREW, 1-8 x 4-1/2 znd hex-hd cap

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.06 x 2.50 x .136 znd

2шт.

23443R1

LOCK NUT,1"-8, GC

NUT, 1/8 znd hex. lock

1шт.

478258R1

WASHER

1.156 x 1-3/4 x .105 znd

2шт.

2

540475R1

SPRING

clevis

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 znd hex-hd cap

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 znd hex. lock

1шт.

3

56970C1

PIN

clevis

1шт.

615274R1

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

1-9/32 x 2-1/2 x 12 ga

2шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

2шт.

4

112819C1

BRACE ASSY, hitch

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, 5/8-11 x 6 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

5

63539C1

PIN

cylinder lever

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NF str lub

2шт.

7

60513C1

CRANK

ASSY

1шт.

60149C2

LOCK NUT

1-1/4 acme hex. jam

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16-18 x 3/8 cup-pt set

1шт.

8

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING

2шт.

9

60516C1

BUSHING,33.02mm ID x 42.93mm OD x 25.4mm L

spring plug

2шт.

10

60148C1

SPRING

hitch

2шт.

11

56975C1

PIPE

spring insert

1шт.

12

60147C1

LINK

SWIVEL, crank

1шт.

13

58643C1

SUPPORT

hose

1шт.

18835C1

BOLT, 3/4 x 1-1/4 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga znd

2шт.

14

58644C1

HOLDER

BAR, hose

2шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 znd hex-hd mach

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

2шт.

15

56976C2

CLEVIS

ASSY, hitch

1шт.
