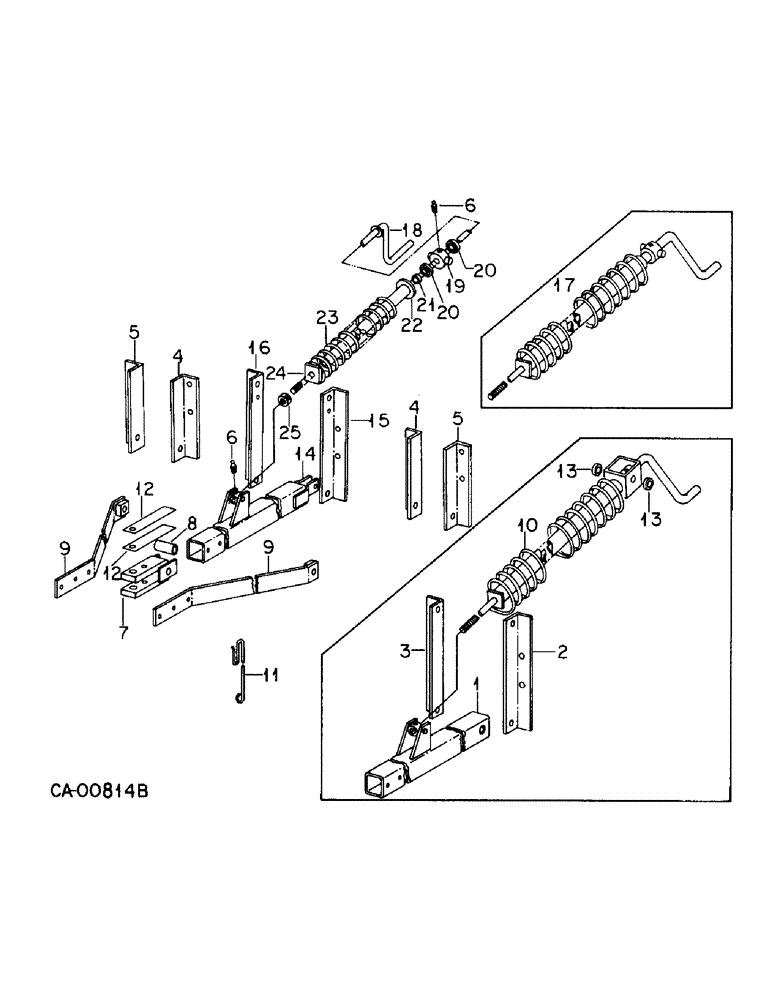

Запчасти Case IH 315 (A-07) - HITCH, NON-FOLDING, UNITS A, B AND C

1

540297R1

HITCH ASSY, machines built, Serial Range: 1969-1975

1шт.

2

540301R1

ANGLE, center hitch LH, machines built, Serial Range: 1969-1975

1шт.

3

540302R1

ANGLE, center hitch RH, machines built, Serial Range: 1969-1975

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 znd hex-hd mach

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cad hex. lock

1шт.

4

540303R1

ANGLE

outer hitch LH

2шт.

5

540304R1

ANGLE, outer hitch RH

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/4 znd hex-hd cap

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z hex. lock

3шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

2шт.

7

468546R11

CLEVIS

ASSY, hitch

1шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 znd hex-hd cap

1шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

468548R1

BUSHING

hitch

1шт.

413-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 5

SCREW, 7/8-8 x 5 znd hex-hd cap

1шт.

131047

WASHER,7/8"

7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8-8 C-Z hex.

1шт.

9

540306R1

BAR

ASSY

2шт.

10

540309R1

CRANK ASSY, machines built, Serial Range: 1969-1974

1шт.

551661R1

WASHER, 1-5/32 x 2-1/4 x 16 ga

1шт.

11

491622R1

ROD

SUPPORT, hose

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

12

540475R1

SPRING

clevis

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

13

542414R1

SPACER, machines built, Serial Range: 1969-1975

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

9413948

NUT,5/8"-11, GA

5/8-11 C-Z hex. lock

2шт.

14

55141C1

HITCH ASSY, machines built to 1975 and since

1шт.

15

55146C1

ANGLE

center hitch LH, machines built to 1975 and since

1шт.

16

55147C1

ANGLE, center hitch RH, machines built to 1975 and since

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 znd hex-hd mach

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cad hex. lock

1шт.

17

55139C1

CRANK

ASSY, machines built 1975 to 1977, on orders for 55139c1 furnish the following items 18 thru 25

1шт.

18

129897C1

CRANK

ASSY, machines built 1978 and since

1шт.

19

468532R2

PIVOT

SWIVEL, machines built 1978 & since

1шт.

20

80755R91

THRUST BEARING,30.32mm ID x 55.82mm OD x 16mm W

BEARING, machines built 1978 & since

2шт.

21

121299C1

SPACER

machines built 1978 & since

1шт.

22

540316R1

SPRING

CENTERING ASSY, spring, machines built 1978 & since

1шт.

23

540312R2

SPRING

machines built 1978 & since

1шт.

24

129899C1

SPRING

INSERT ASSY, machines built 1978 & since

1шт.

25

56974C2

NUT

1-1/8 znd, machines built 1978 & since

1шт.
