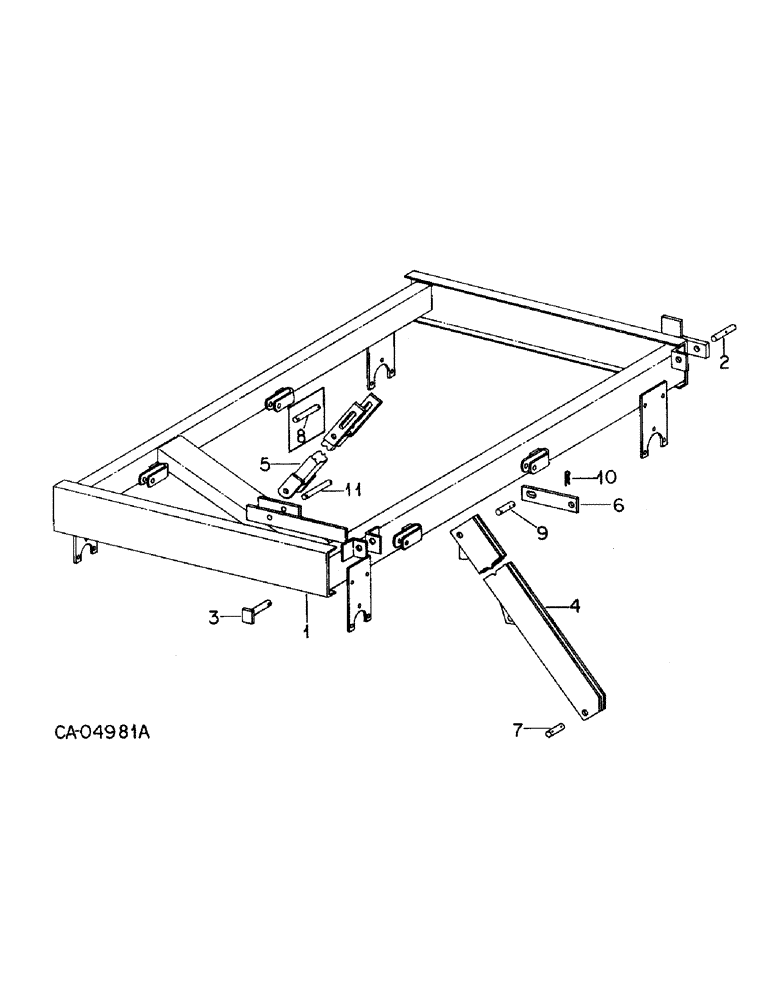

Запчасти Case IH 315 (A-06) - WING FRAME, UNITS D AND E

1

100923C1

FRAME ASSY, 4 ft. wing left half, unit D

1шт.

1

100924C1

FRAME ASSY, 4 ft. wing right half, unit D

1шт.

1

100759C1

FRAME ASSY, 7 ft. wing left half, unit E

1шт.

1

100760C1

FRAME ASSY, 7 ft. wing right half, unit E

1шт.

2

100769C1

PIN

rear hinge

2шт.

21652R1

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

2шт.

3

101115C1

PIN ASSY, front hinge

2шт.

21652R1

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

2шт.

4

63549C2

LEVER ASSY, wing cyl

2шт.

5

100773C2

LINK ASSY, lift

2шт.

6

121045C1

BAR, folding lock

1шт.

7

63539C1

PIN

cyl lever

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

8шт.

8

63540C1

PIN, lift link, serial no. 13202 & below

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

8шт.

9

121046C1

PIN, uper lift link

2шт.

PIN, 1/4 x 1-3/4 cot.

4шт.

10

517843R1

COTTER PIN

PIN, quick, attachable cot.

2шт.

11

121327C1

PIN

wing lift

2шт.
