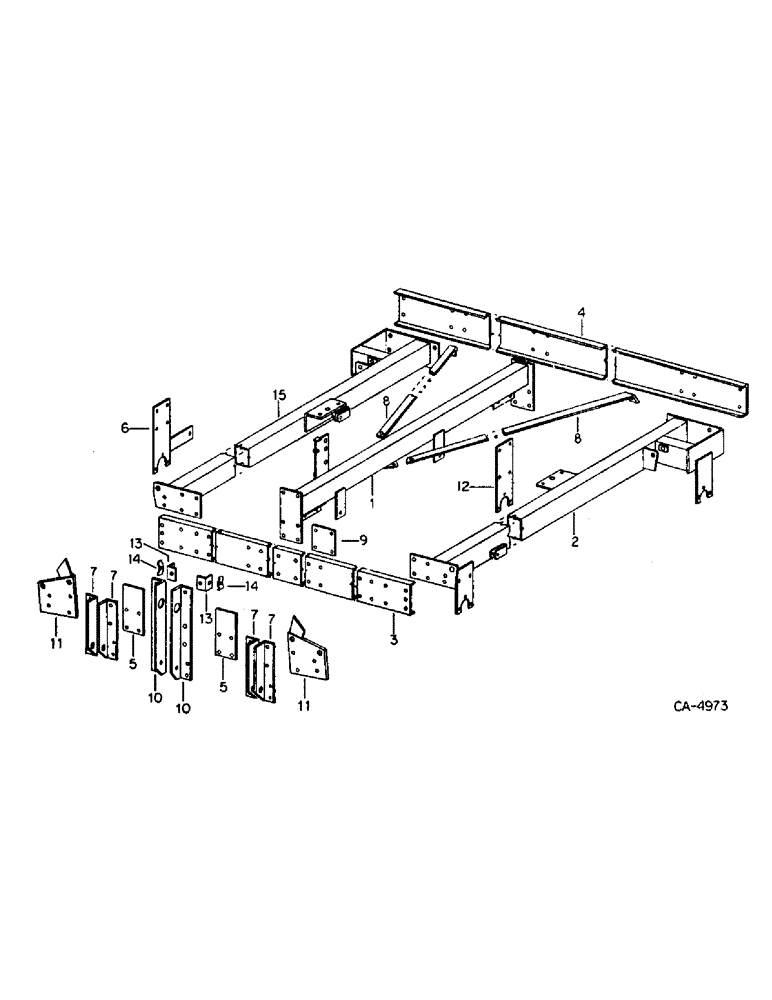

Запчасти Case IH 315 (A-05) - CENTER FRAME, FOLDING, UNITS D AND E

1

100753C1

FRAME ASSY, center

1шт.

2

100730C1

FRAME

ASSY, outer left half

1шт.

3

100750C1

CHANNEL, front frame

1шт.

4

100745C1

CHANNEL

rear frame

1шт.

5

63519C1

BAR

lever pivot plate

2шт.

6

63541C1

STANDARD ASSY, center brg

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

32шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

32шт.

280954

NUT,3/4"-10, G5

32шт.

7

63513C1

ANGLE, hitch outer LH

2шт.

7

63514C1

ANGLE, hitch outer RH

2шт.

8

63545C1

SUPPORT, frame brace LH

1шт.

8

63546C1

SUPPORT, frame brace RH

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

9

112449C1

BAR

back-up plate

1шт.

10

100748C1

ANGLE, center hitch LH

1шт.

10

100749C1

ANGLE, center hitch RH

1шт.

413-1444

BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5

SCREW, 7/8-9 x 2-3/4 hex-hd cap

6шт.

NLS

NO LONGER SERVICED

7/8"

6шт.

27820R1

WASHER

.938 x 2.25 x .165 znd

6шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

6шт.

11

101113C1

PLATE ASSY, cylinder hinge

2шт.

443556

FITTING,3/8" - 16 x 2", Full Thd

3/16 str drive lub

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

12

63542C1

STANDARD, center bearing

1шт.

13

63516C1

ANGLE, hose holder bracket

2шт.

14

515030R1

CLAMP

hose

2шт.

18685C1

BOLT, 3/8-1-1/2 znd sq-nk crg

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 znd wing

1шт.

15

100731C1

FRAME

ASSY, outer right half

1шт.
