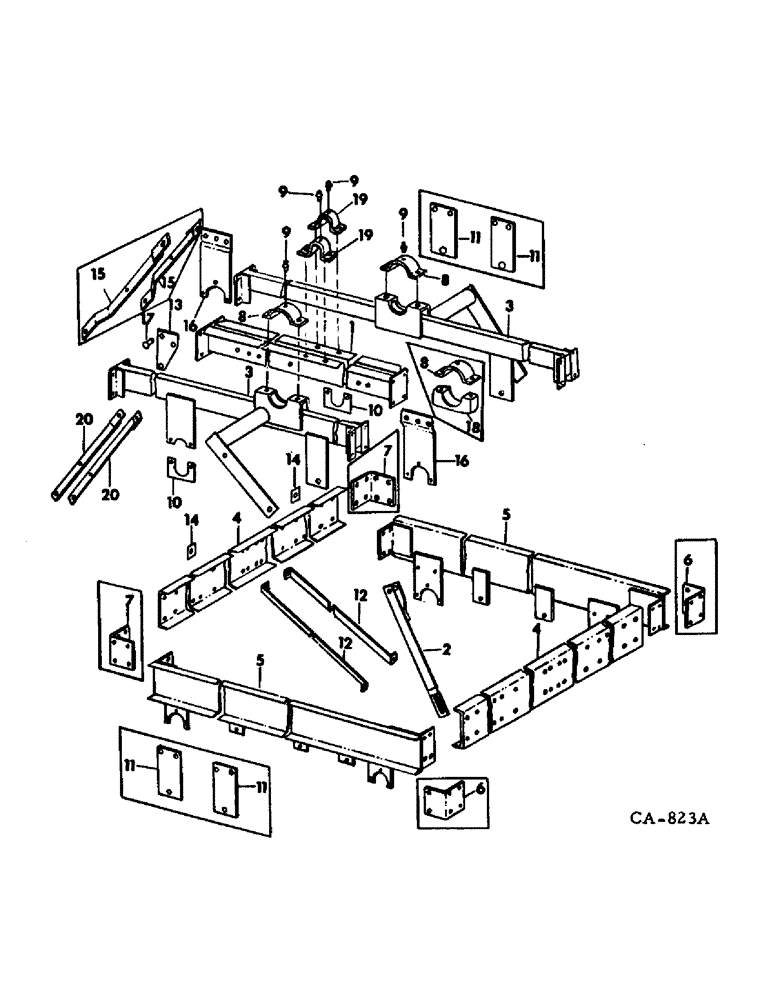

Запчасти Case IH 315 (A-03) - MAIN FRAME, NON-FOLDING, UNITS A, B AND C

1

543181R1

FRAME ASSY, center, replaces 540250R1, on orders for frame, 540250R1, furnish (1) frame, 543181R1 & (2) caps, 543185R1

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

5шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

8шт.

2

542423R1

BAR

ASSY, transport

1шт.

3

540258R1

TUBE ASSY, LH

1шт.

3

540259R1

TUBE ASSY, RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

8шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/-11 x 1-3/4 znd hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

16шт.

4

540281R1

CHANNEL

front and rear, 2 for unit C

1шт.

4

540282R1

CHANNEL, front and rear, 2 for unit B

1шт.

4

540283R1

CHANNEL, front and rear, 2 for unit A

1шт.

5

540284R1

CHANNEL, side frame, identification plate 31501111 and below

2шт.

5

55082C1

CHANNEL ASSY, side LH

1шт.

5

55083C1

CHANNEL ASSY, side RH, identification plate 31501112 and above

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

14шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

14шт.

6

540287R1

BRACKET, corner, identification plate 31501111 and below

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

10шт.

7

540288R1

BRACKET, corner, identification plate 31501111 and below

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

16шт.

8

542409R1

CAP

STRAP, axle

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

4шт.

10

540289R1

PLATE, lower pivot

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

11

540290R1

BRACKET, pivot, identification plate 31501111 and below

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

8шт.

12

540292R1

BRACE, frame, for unit C

2шт.

12

540293R1

BRACE, frame, for unit B

2шт.

12

543922R1

SUPPORT

BRACE, frame, for unit A

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

13

540295R1

PLATE, cyl anchor

1шт.

23648S

SPACER, 3/4 x 1.06 std pipe

1шт.

14

540296R1

BAR

2шт.

15

542418R1

BAR ASSY, hitch, machines built, Serial Range: 1969-1975

1шт.

16

543195R1

STANDARD, brg, used w/frame, 543181R1

2шт.

16

540251R1

SUPPORT ASSY.

STANDARD, brg, used w/frame, 540250R1

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

280954

NUT,3/4"-10, G5

5шт.

478293R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex. lock

1шт.

C13756

SPACER

3/4 x 1 std pipe

2шт.

17

486762R1

PIN

lockout

1шт.

591107R1

COTTER PIN

quick attachable cot

1шт.

18

491921R1

CYLINDER END CAP

BEARING, wheel shaft, used w/frame, 540250R1

1шт.

19

543185R1

CAP

wheel shaft brg, used w/frame, 543181R1

2шт.

20

55144C1

BAR ASSY, hitch, machines built 1975 and since

2шт.
